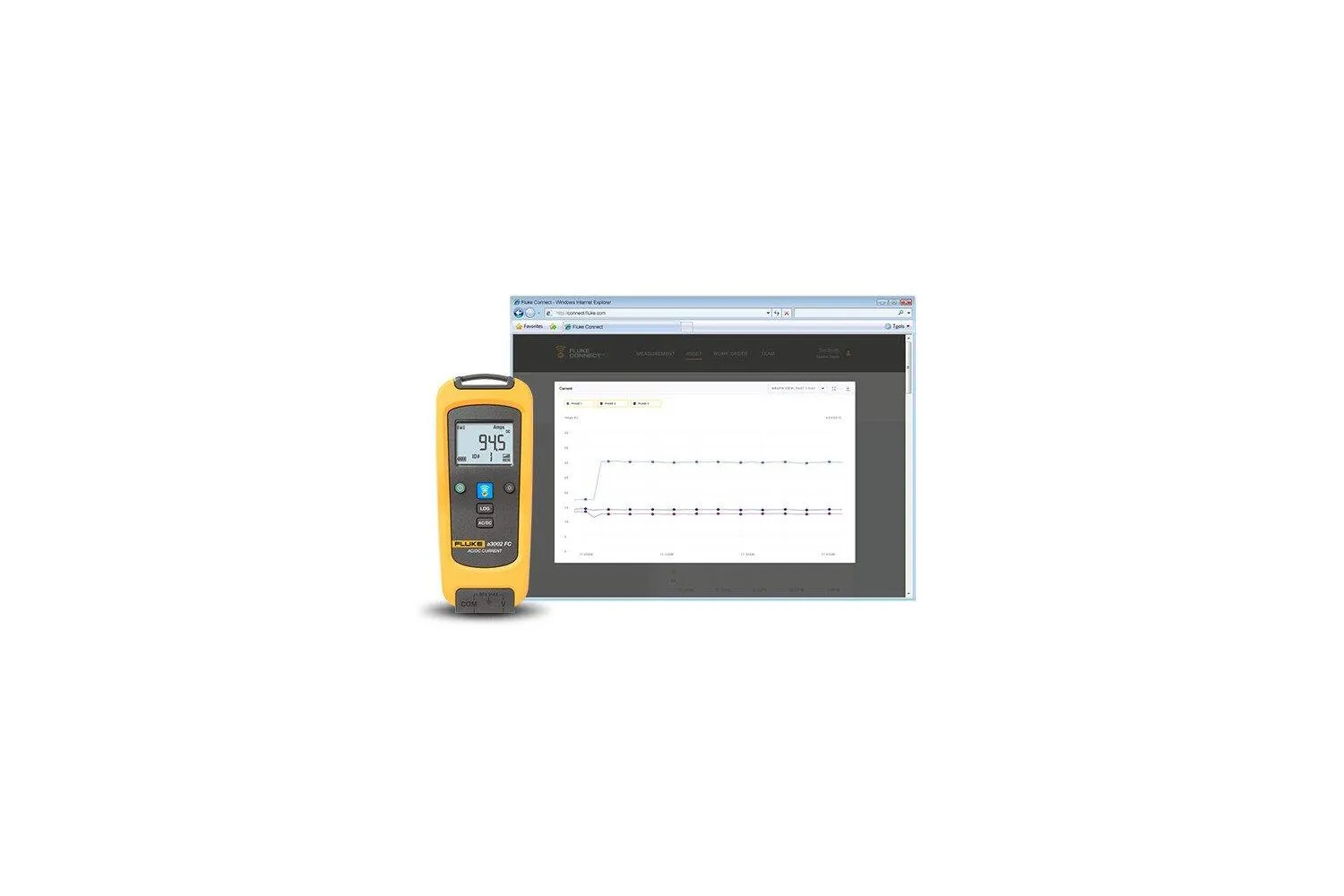

Fluke A3002 FC Wireless AC/DC Current Module

AC/DC current module that wirelessly relays measurements from current clamp accessories to other Fluke Connect® enabled master units

Manufacturer part number (MPN)

4459442 Brand: Fluke Category: Tools A DC Range / resolution: 1000 A / 0.1 A A DC Accuracy1: (0.5% + 3) A AC Range / resolution: 600.0 A / 0.1 A A AC Accuracy1: (1.0% + 3) Maximum voltage between terminal and earth ground (module): 30 V DC or AC RMS LCD w/backlight: 3½ digits, 6000 counts, 4/sec update rate Log rate/Interval: Adjustable by PC from 1 sec to 1 hr, default 1 min Battery type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6 Battery life: 400 hours minimum Memory: Record up to 65,000 readings RF communications: 2.4 GHz ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Temperature coefficient: 0.1 X (specified accuracy) / °C ( 28°C) Relative humidity: 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) EMC: IEC 61236-1, Portable Safety compliance: Protected to IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2 Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP42 Size (HxWxD): 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in) Weight: 0.255 kg (9 oz) Warranty: Three years

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-a3002-fc
