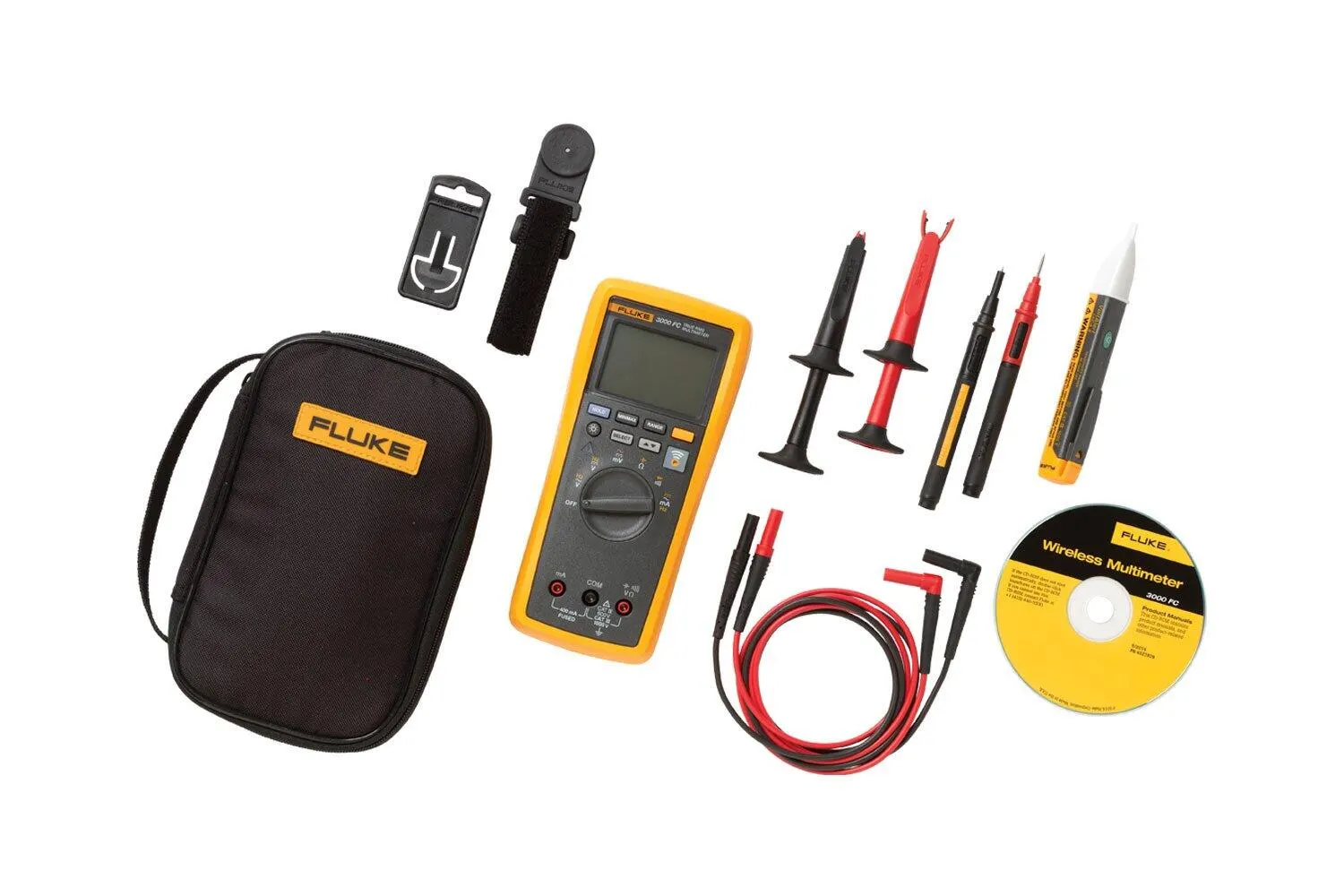

Fluke 3000 FC/1AC2 Combo Kit

Fluke's 3000 FC Series Wireless Multimeter puts wireless test tools, not your body, near live electrical panels. Improve safety and efficiency with this tester.

Manufacturer part number (MPN)

4699302 Brand: Fluke Category: Tools Accuracy2 3 4 45 Hz to 500 Hz: 1.0% + 3 Accuracy2 3 4 500 Hz to 1 kHz: 2.0% + 3 mV Range / resolution: 600.0 mV / 0.1 mV mV Accuracy: 0.09% + 2 V Range / resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V V Accuracy: 0.09% + 2 0.15% + 2 ))) Range / resolution: 600 Ω / 1 Ω ))) Accuracy: Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. Diode test Range / resolution: 2.000 V / 0.001 V Diode test Accuracy: 1% + 2 µF Range / resolution: 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF1 / 1 μF µF Accuracy: 1.2% + 2 10% typical mA AC (45 Hz to 1 kHz) Range1 / resolution: 60.00 mA / 0.01 mA 400.0 mA3 / 0.1 mA mA AC (45 Hz to 1 kHz) Accuracy: 1.5% + 3 mA DC2 Range1 / resolution: 60.00 mA / 0.01 mA 400.0 mA3 / 0.1 mA mA DC2 Accuracy: 0.5% + 3 Accuracy1: 0.1% + 1 Overload protection: 1100 V RMS Input impedance (nominal): > 10 MΩ < 100 pF Common mode rejection ratio (1 kΩ unbalance): > 120 dB at DC, 50 Hz or 60 Hz Normal mode rejection: > 60 dB at 50 Hz or 60 Hz Full scale voltage to 6 MΩ Full scale voltage 50 MΩ: < 0.7 V DC < 0.9 V DC Typical short circuit current: < 350 mA Overload: 600 mA overload for 2 minutes maximum, 10 minutes rest minimum DC functions: ± 12 counts for changes > 350 mS in duration. AC functions: ± 40 counts for changes > 900 mS in duration. Maximum voltage between any terminal and earth ground: 1000 V DC or AC RMS Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only Display (LCD) Update rate: 4/sec Display (LCD) Volts, amps, ohms: 6000 counts Display (LCD) Frequency: 10,000 counts Capacitance: 1,000 counts Battery type: Three AA Alkaline batteries, NEDA 15A IEC LR6 Battery life: 250 hours minimum RF communications: 2.4 GHZ ISM Band RF communication range Open air, unobstructed: Up to 20m RF communication range Obstructed, sheetrock wall: Up to 6.5m Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m Temperature Operating: -10°C to 50°C Temperature Storage: -40°C to 60°C Temperature coefficient: 0.1 X (specified accuracy) / °C ( 28°C) Relative humidity: 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) Altitude Operating: 2,000 m Altitude Storage: 12,000 m Electromagnetic compatibility EMI, RFI, EMC, RF: EN 61326–1:2006, EN 61326–2–2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE Safety compliance: ANSI / ISA 61010–1 / (82.02.01): 3rd edition CAN / CSA-C22.2 No 61010-1-12: 3rd edition UL 61010–1: 3rd edition IEC / EN 61010–1:2010 Certifications: CSA, FCC, CE Ingress Protection (IP) rating: IP54 Pollution Degree: 2 Size (H x W x L): 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) Weight: 340 g (12 oz) Warranty: Three years

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-3000-fc-1ac2-kit
