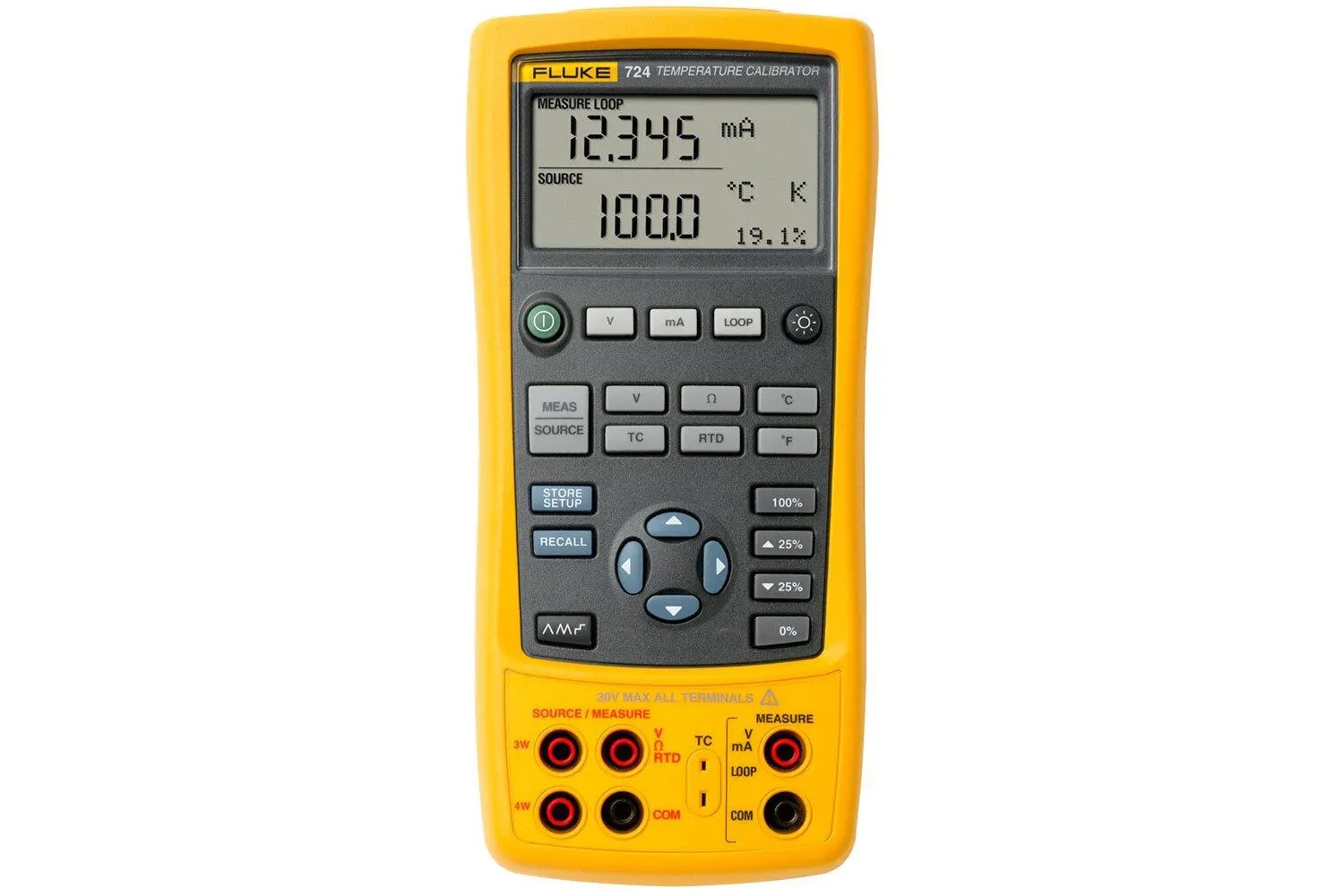

Fluke 724 Temperature Calibrator

Fluke 724 temperature calibrator: test & calibrate almost any temperature instrument. Switch from RTDs to TCs, source & measure, troubleshoot. Dual display.

Manufacturer part number (MPN)

1553041

Brand

Fluke

Category

Tools

Voltage DC 30.000 V

0.02% + 2 counts (upper display)

Voltage DC 20.000 V

0.02% + 2 counts (lower display)

Voltage DC 100.00 mV

0.02% + 2 counts

Voltage DC -10.00 mV to 75.00 mV

0.025% + 1 count (via TC connector)

Current DC 24.000 mA

0.02% + 2 counts

Resistance 0.0 to 400.0 Ω

0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)

Resistance 401 to 1500 Ω

0.5 Ω (4-wire), 1 Ω (2- and 3-wire)

Resistance 1500 to 3200 Ω

1 Ω (4-wire), 1.5 Ω (2- and 3-wire)

Voltage DC 10.000 V

0.02% + 2 counts

Resistance 15.0 to 400.0 Ω

0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)

Measure accuracy NI-120

0.2°C

Measure accuracy PT-100 (385)

0.33°C

Measure accuracy PT-100 (393)

0.3°C

Measure accuracy PT-100 (JIS)

0.3°C

Measure accuracy PT-200 (385)

0.2°C

Measure accuracy PT-500 (385)

0.3°C

Measure accuracy PT-1000 (385)

0.2°C

Measure accuracy Resolution

0.1°C

Measure accuracy J

0.7°C

Measure accuracy K

0.8°C

Measure accuracy T

0.8°C

Measure accuracy E

0.7°C

Measure accuracy R

1.8°C

Measure accuracy S

1.5°C

Measure accuracy B

1.4°C

Measure accuracy L

0.7°C

Measure accuracy U

0.75°C

Measure accuracy N

0.9°C

Measure accuracy XK

0.6°C

Measure accuracy BP

1.2°C

Source accuracy NI-120

0.2°C

Source accuracy PT-100 (385)

0.33°C

Source accuracy PT-100 (393)

0.3°C

Source accuracy PT-100 (JIS)

0.3°C

Source accuracy PT-200 (385)

0.2°C

Source accuracy PT-500 (385)

0.3°C

Source accuracy PT-1000 (385)

0.2°C

Source accuracy Resolution

0.1°C

Resolution

J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C

XK

0.6°C

BP

1.2°C

Ramp functions Source functions

Voltage, current, resistance, frequency, temperature

Ramp functions Ramps

Slow ramp, Fast ramp, 25% step-ramp

Loop power function Voltage

24 V

Loop power function Accuracy

10%

Loop power function Maximum current

22 mA, short circuit protected

Step functions Source functions

Voltage, current, resistance, frequency, temperature

Step functions Steps

25% of range, 100% of range

Operating temperature

-10°C to 55°C

Storage temperature

-20°C to 71°C

Humidity (without condensation) 90%

10°C to 30°C

Humidity (without condensation) 75%

30°C to 40°C

Humidity (without condensation) 45%

40°C to 50°C

Humidity (without condensation) 35%

50°C to 55°C

Safety rating

CSA C22.2 No. 1010.1:1992

EMC

EN50082-1:1992 and EN55022:1994 Class B

Size

96 x 200 x 47 mm

Weight

650 g

Batteries

Four AA alkaline batteries

Warranty

Three years

Battery life

25 hours typical

Shock and vibration

Random, 2 G, 5-500 Hz

HS Code

9031.80
