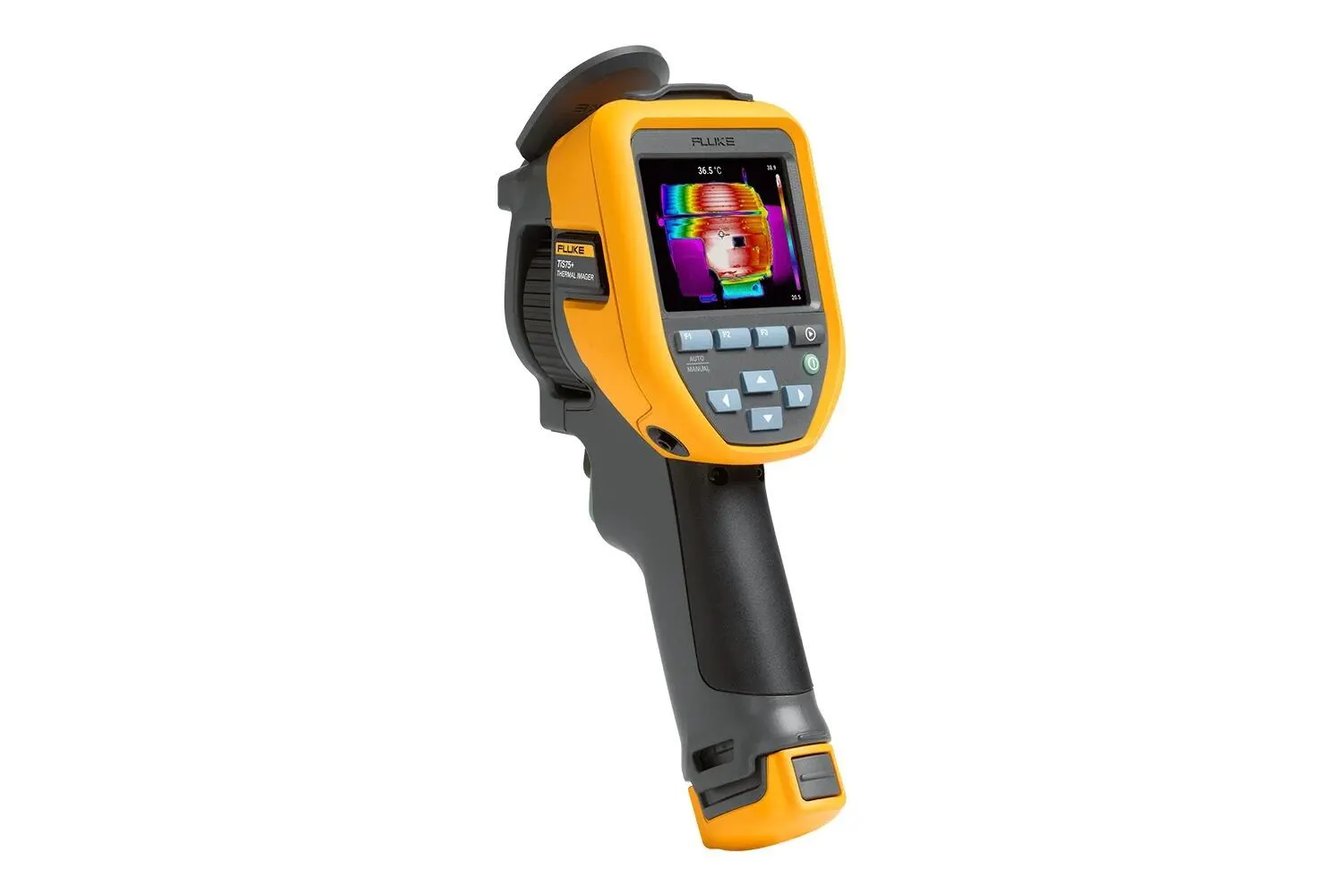

TIS75+ Thermal Camera

Advanced thermal camera inspections with asset tagging and QR code scanning to compare images over time. Analyze thermal images for trends, diagnose issues and fix problems early.

Manufacturer part number (MPN)

5160043 Brand: Fluke Category: Tools Key Features: TiS75+ Infrared resolution: 384 x 288 (110,592 pixels) IFOV: 1.91 mRad Field of view: 42° x 30° minimum focus distance: 0.15 m Focus system: Manual focus Wireless connectivity: Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available) Fluke Connect app compatible: Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Fluke Connect Assets optional software: Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location Asset Tagging: Scan a QR code to automatically organize and file thermal images with Fluke Connect™ IR-Fusion technology: AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image Picture-InPicture (PIP): Yes Display: 3.5" (8.9 cm landscape) touchscreen 640 x 480 LCD Ergonomic design: Designed for one-handed use Thermal sensitivity: 40mk Level and span: Smooth auto and manual scaling Fast auto-rescale in manual mode: Yes minimum span (in manual mode): 3° °C (4.5 °F) minimum span (In auto mode): 5°C (9.0 °F) Built-in digital camera (visible light): 640 x 480 Frame rate: 9 Hz or 27 Hz models Dew point calculation: Yes Internal memory: ∼500 images External memory: ≥4 GB SD card (>1000 images) Image capture, review, save mechanism: One-handed image capture, review, and save capability Image file formats: Non-radiometric BMP or JPEG or fully-radiometric is2 Memory review: Yes Software: Fluke Connect software—full analysis and reporting software with access to the Fluke Connect Analyze and store radiometric data on a PC: Yes Export file formats with Fluke Connect software: is2, BMP, GIF, JPEG, PNG, TIFF Voice annotation: Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device. IR-PhotoNotes: Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file. Text annotations: After IS2 capture, user can type in a note using on-screen keyboard. Video recording and formats: Standard and radiometric video. Up to 5 minute recording length. avi and is3 Remote control operations: No Auto capture (temperature and interval): Yes. User-selectable time interval for capturing IS2 or Jpeg files. Batteries (field-replaceable, rechargeable): Lithium-ion rechargeable battery Battery life: ≥3.5 hours continuous without WiFi (Actual life depends on settings and usage) Battery charging time: ≤2.5 hours to full charge Battery charging system: Ti SBC3B Two-Bay Battery Charger or in-Imager charging. AC operation: AC operation with included power supply, universal adapters included Output: 15 VDC, 2 A Power saving: User-selectable sleep and power off Temperature range (not calibrated below -10 °C): -20 °C to 550°C (not calibrated below -10 °C) Accuracy: ±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature On-screen emissivity correction: Yes, “top ten” material list plus numerical adjustment between 0.01 and 1.00 Standard palettes: 6 Color alarms: Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature. Infrared spectral band: ~8-14μm Operating temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -20 °C to 50 °C (-4 °F to 122 °F) without batteries Relative humidity: 10 % to 95 % non-condensing Spot temperature: Center spot (unmovable) User-definable spot markers: Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker. User defined measurement boxes: Yes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker. Hard case: Rugged hard carrying case with soft transport bag, including adjustable strap Safety standards: IEC 61010-1: Pollution Degree 2 Electromagnetic combability: IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A Australian RCM: RCM IEC 61326-1 US FCC: 47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249 Vibration: 10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6 Shock: 30 g, 11 ms, IEC 60068-2-27 Drop: Engineered to withstand 2m drop Sized (H x W x L): ∼(26.7 cm x 10.1 cm x 14.5 cm) ∼ (10.5 in x 4.0 in x 5.7 in) Weight (battery included): 0.885 kg (1.95 lbs) Enclosure rating: IP54 Warranty: Two-years (standard) Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish RoHS compliant: Yes
