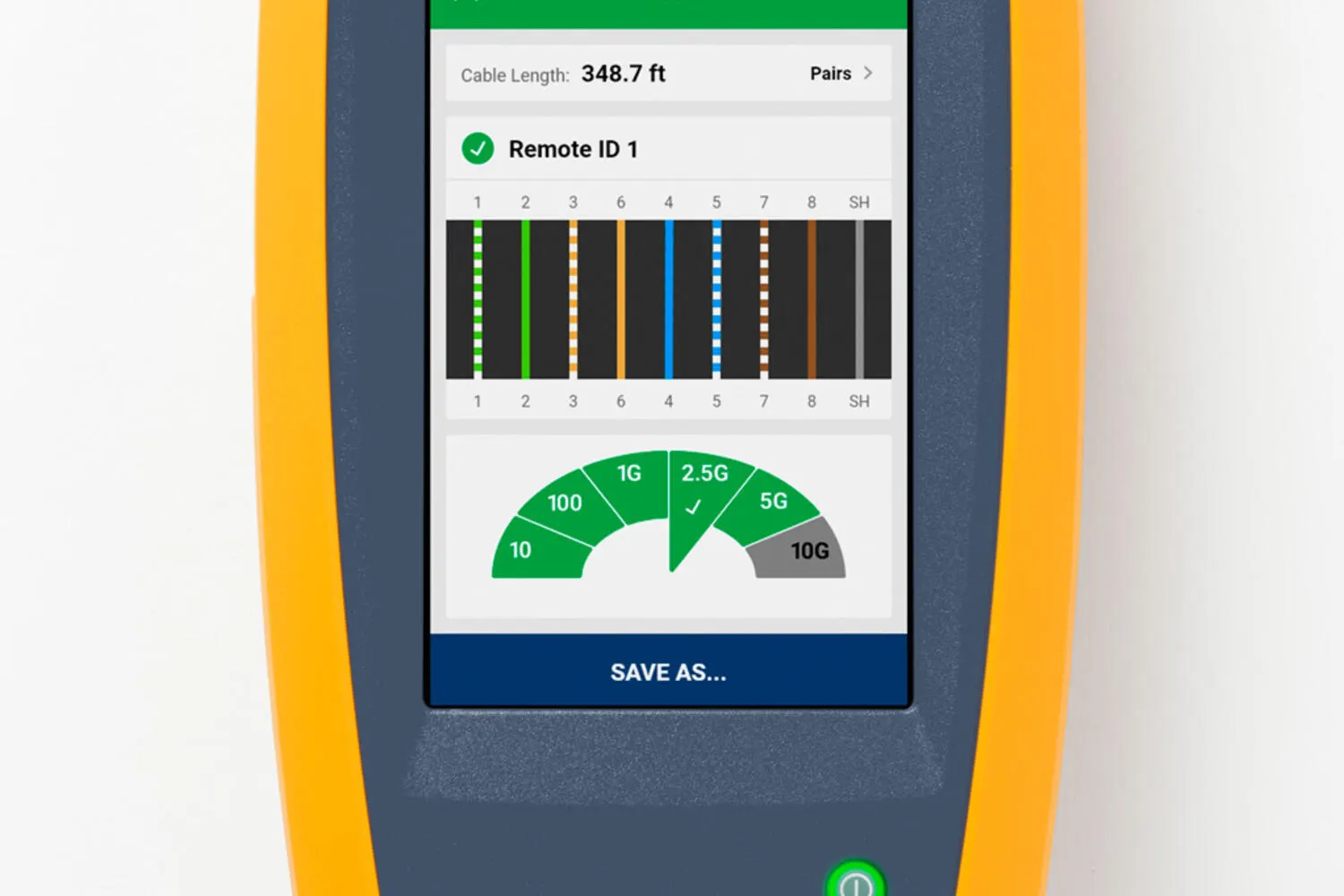

Fluke Networks LinkIQ™ Industrial Ethernet Cable+Wi-Fi+Network Tester

The LinkIQ™ is a fast and robust solution to help expertly manage operational networks and keep production lines running smoothly and efficiently. Learn more.

Manufacturer part number (MPN)

5226628

Brand

Fluke

Category

Tools

Feature

Description

Languages supported in UI

English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish

Weight

1 lbs 6 oz (624g)

Battery

Type: Lithium-ion, 3.6 V, 6400 mAh; Life: 8 hours typical; Charge time: 4.5 hours; Charging temperature range: 0 °C to 40 °C

Power Adapter

Input: 100 to 240 V ac ±10%, 50/60Hz; Output: 15 V dc, 2 A maximum; Class II

Host Interface

USB type C

Display

800 x 480 pixels color capacitive multi-touch

Dimensions

22 cm x 11 cm (8.5 in x 4.5 in)

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-10 °C to 60 °C (-14 °F to 140 °F)

Operating Relative Humidity

0 % to 90 %, 0 °C to 35 °C 0 % to 70 %, 35 °C to 45 °C

Operating Altitude

4,000 m 3,200 m with ac adapter

Vibration

Random, 2 g, 5 Hz-500 Hz

Drop

1 m drop, 6 sides

Diagnostic Protocols

Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)

IP Address Setup

LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP

IP Ping Test Results

Four response time results for target, DNS Server(s), Gateway, plus average and number lost

Power Over Ethernet Compatibility

Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP

Power Over Ethernet Diagnostics

Advertised Power Class (0-8), Advertised Available Power, Powered Pairs, Diagnostics for both Single and Dual signatures

Power Over Ethernet Measurements

Loaded Voltage (V), Loaded Power (W)

Port Blink

Blink the light of the connected port

Test Port

Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs

Commissioning Autotests

10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m

Cable Types

Balanced twisted-pair cabling; Unshielded twisted-pair; Screened twisted-pair; 2-pair and/or 4-pair; Adapter cables for M8D, M12D, M12X

Wire Map-Only Tests

Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover). Test speed: 1 second for lengths < 120 m

Length (Maximum)

305 m (1000 ft)

Nominal Velocity of Propagation (NVP)

User settable

Tone Generator

Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analog tones compatible with general analog probes.

Remote ID Locators

Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets.

Supported Wireless Standards

802.11b, 802.11a, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6/6E). Additionally, the tester will report the presence of future standards, such as 802.11be, if the standard's presence can be decoded in a supported beacon.

Country certifications

AE, AU, AR, BR, CA, CL, CN, IN, JP, KR, KW, MY, MX, NZ, PH, SG, TH, TW, UK, US, ZA, plus the European Union (Completed or in process. Contact your local Fluke representative for details.)

Network Tests

Number and name (BSSID) of available access points, signal strength, security type, IEEE 802.11 standard supported

Access Point Tests

Networks supported / country code, BSSID, signal strength, band/channel/bandwidth, IEEE 802.11 standards supported, security types, TX/RX rates

Channel Tests

Utilization, Number / signal strength of access points, overlap

HS Code

9030.33
