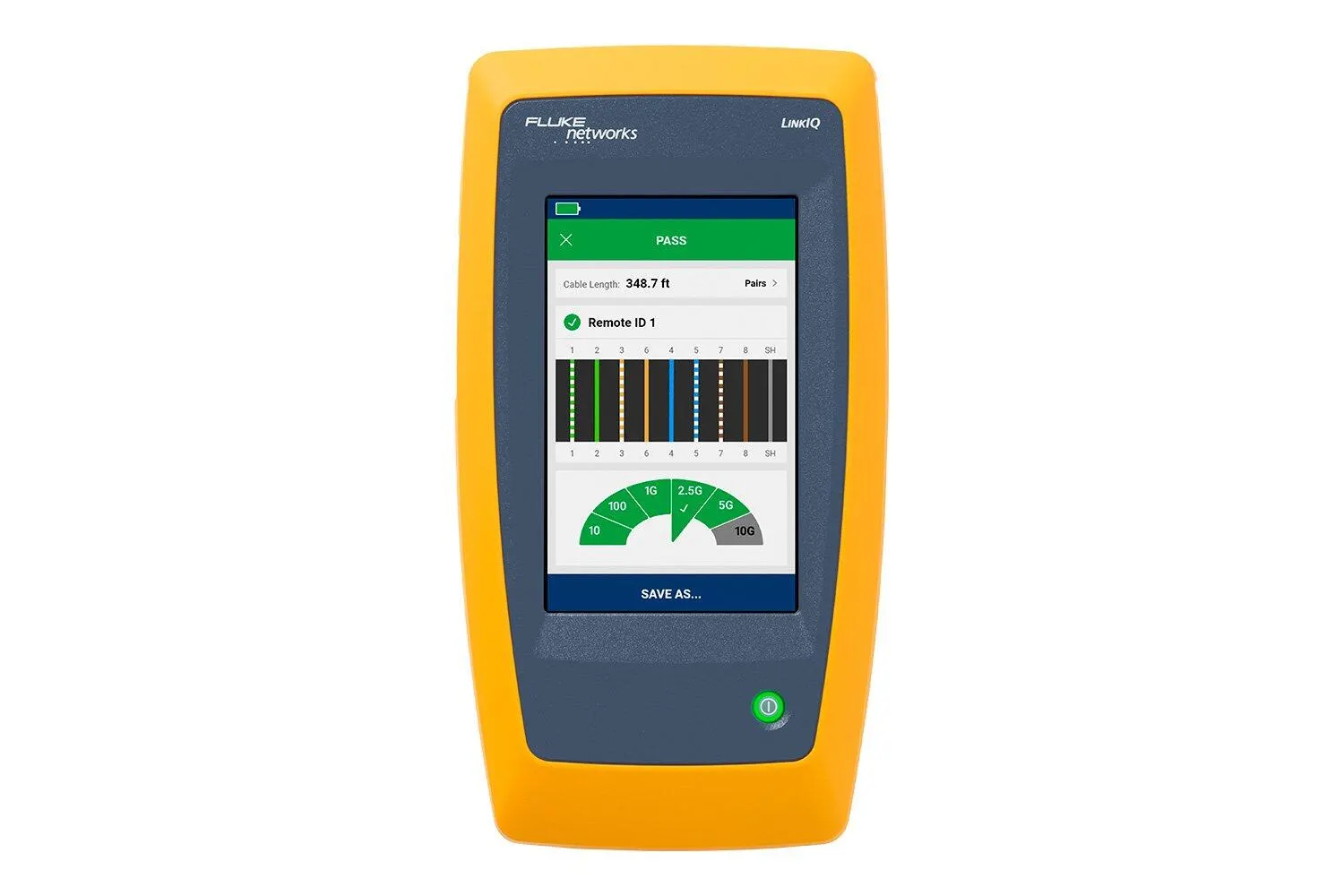

Fluke Networks LinkIQ™ Cable+Network Tester

The trusted testing solution to verify cable performance up to 10 Gb/s and solve network connectivity problems. Nearest switch diagnostics + more. Get details.

Manufacturer part number (MPN)

5226604

Brand

Fluke

Category

Tools

Feature

Description

Languages supported in UI

English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese

Weight

1 lbs 6 oz (624g)

Battery

Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 °C to +40 °C

Power Adapter

Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II

Host Interface

USB type C

Display

800 x 480 color capacitive multi-touch

Dimensions

8.5 in x 4.5 in

Operating Temperature

0°C to 45°C

Storage Temperature

-10°C to +60°C

Operating Relative Humidity

0 % to 90 %, 0°C to 35°C 0 % to 70 %, 35°C to 45°C

Operating Altitude

4,000 m 3,200 m with ac adapter

Vibration

Random, 2 g, 5 Hz-500 Hz

Drop

1 m drop, 6 sides

Diagnostic Protocols

Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)

IP Address Setup

LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP

IP Ping Test Results

Four response time results for target, DNS Server(s), Gateway, plus average and number lost.

Power Over Ethernet Compatibility

Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP

Power Over Ethernet Measurements

Loaded Voltage (V) Loaded Power (W)

Port Blink

Blink the light of the connected port

Test Port

Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.

Commissioning Autotests

10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m

Cable Types

Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair

Wire Map-Only Tests

Document wire map Length of each pair Diagnose split pairs User selectable T568A or T568B User selectable crossover settings (Straight through, Half-crossover, Full-crossover) Test speed: 1 second for lengths < 120 m

Length (Maximum)

305 m (1000 ft)

Nominal Velocity of Propagation (NVP)

User settable

Tone Generator

Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analogy tones compatible with general analog probes.

Remote ID Locators

Use remote ID terminations to identify up to 7 unique ports or office outlets

HS Code

9030.33
