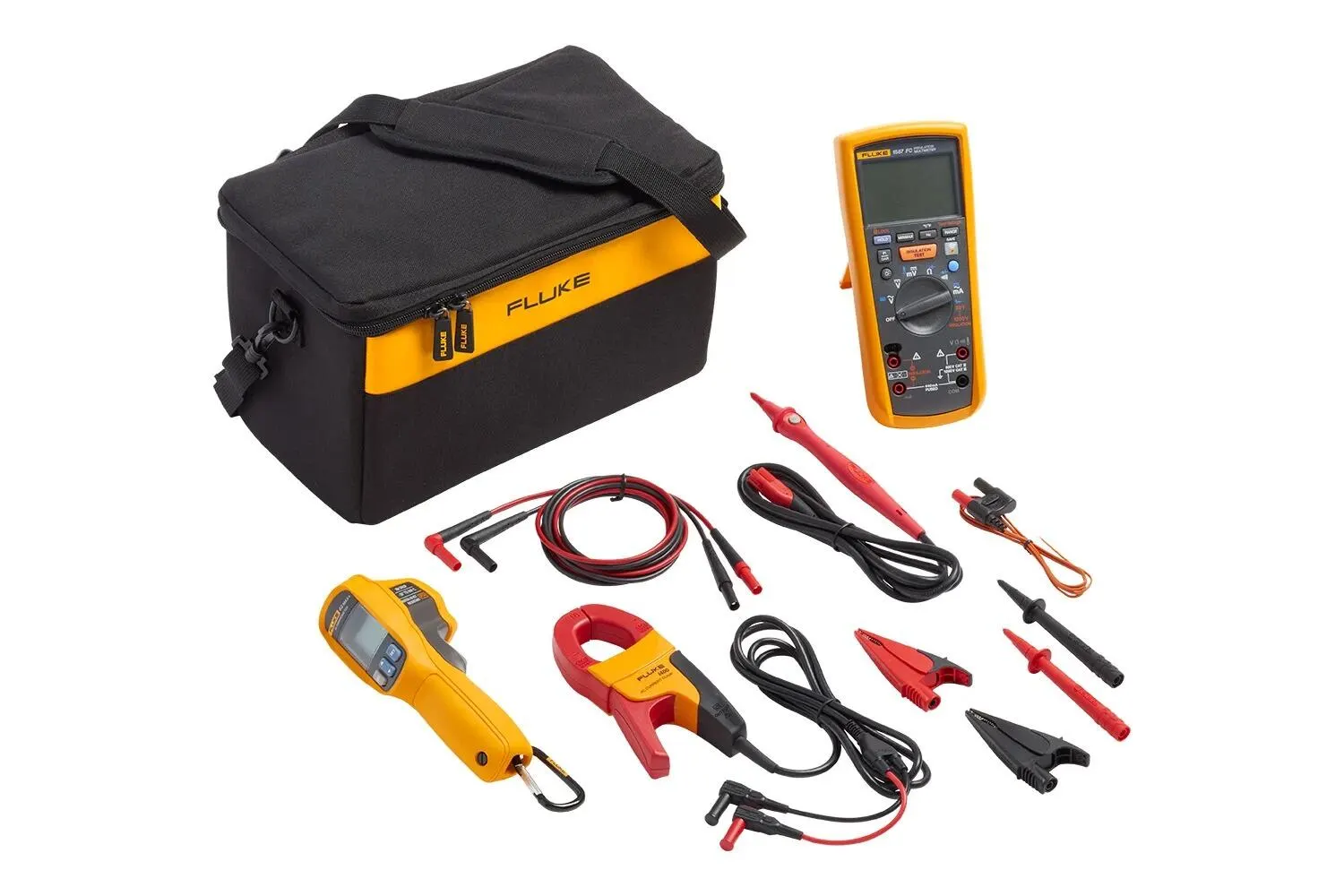

Fluke 1587 FC Advanced Electrical Troubleshooting Kit

Maintain the uptime of electrical equipment with this troubleshooting and preventative maintenance kit,

Manufacturer part number (MPN)

4692778

Brand

Fluke

Category

Tools

600.0 mV Resolution

0.1 mV

600.0 mV Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

600.0 mV Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

6.000 Vi Resolution

0.001 V

6.000 Vi Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

6.000 Vi Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

60.00 V Resolution

0.01 V

60.00 V Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

60.00 V Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

1000 V Resolution

1 V

1000 V Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(2% + 3)

1000 V Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)¹

600.0 mV Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

6.000 V Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

1000 V Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

Range Resolution

Accuracy ±(% of Rdg + Counts)

6.000 V dc 0.001 V

±(0.09% + 2)

60.00 V dc 0.01 V

±(0.09% + 2)

600.0 V dc 0.1 V

±(0.09% + 2)

1000 V dc 1 V

±(0.09% + 2)

Input impedance

10 MΩ (nominal), <100 pF

Normal mode rejection ratio

>60 dB @ 50 Hz or 60 Hz

Common mode rejection ratio

>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)

600.0 mVdc 0.1 mV

±(0.1% + 1)

Range

400 mA

Resolution

0.1 mA

Accuracy ±(% of Rdg+Counts)

±(1.5% + 2)¹

Burden voltage (Typical)

2 mV/mA

Overload

600 mA for 2 minutes maximum

Fuse protection for mA input

0.44 mA, 1000 V, IR 10 kA

AC conversion

Inputs are ac-coupled and calibrated to the rms value of its wave input

600.0 Ω 0.1 Ω

±(0.9% + 2)

6.000 kΩ 0.001 kΩ

±(0.9% + 2)

60.00 kΩ 0.01 kΩ

±(0.9% + 2)

600.0 kΩ 0.1 KΩ

±(0.9% + 2)

6.000 MΩ 0.001 MΩ

±(0.9% + 2)

50.0 MΩ ² 0.01 MΩ

±(1.5% + 3)

Overload protection

1000 V rms or dc

Open circuit test voltage

<8.0 V dc

Short circuit current

<1.1 mA

Diode test indication

Display voltage drop: 0.6 V at1.0 mA nominal test current:

Accuracy

±(2% + 3)

Continuity indication

Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω

Open circuit voltage

<8.0 V

Response time

>1 m sec

99.99 Hz 0.01 Hz

±(0.1% + 1)

999.9 Hz 0.1 Hz

±(0.1% + 1)

9.999 kHz 0.001 kHz

±(0.1% + 1)

99.99 kHz 0.01 kHz

±(0.1% + 1)

600.0 mV ac V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

100.0 mV

V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

150.0 mV

6.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

1.0 V

6.0 V V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

1.5 V

6.0 V DC Trigger Levels¹ to 20 kHz²

-400.0 mV and 2.5 V

60.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

10.0 V

60.0 V V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

36.0 V

60.0 V DC Trigger Levels¹ to 20 kHz²

1.2 V and 4.0 V

600.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

100.0 V

600.0 V DC Trigger Levels¹ to 20 kHz²

12.0 V and 40.0 V

1000.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

300.0 V

1000.0 V DC Trigger Levels¹ to 20 kHz²

12.0 V and 40.0 V

1000 nF 1 nF

±(1.2% + 2)

10.00 μF 0.01 μF

±(1.2% + 2)

100.0 μF 0.1 μF

±(1.2% ±90 counts)

9999 μF 1 μF

±(1.2% ±90 counts)

-40 ° C to 537 ° C 0.1 °C

±(1% + 10 counts)

-40 ° F to 998 ° F 0.1 °F

±(1% + 18 counts)

Measurement range

0.01 MΩ to 2 GΩ

Test voltages

50, 100, 250, 500, 1000 V

Test voltage accuracy

+20%, -0%

Short-circuit test current

1 mA nominal

Auto discharge

Discharge time <0.5 second for C = 1 μF or less

Live circuit detection

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum capacitive load

Operable with up to 1 μF load

50 V (0% to +20%) Display range

0.01 to 6.00 MΩ

50 V (0% to +20%) Resolution

0.01 MΩ

50 V (0% to +20%) Test current

1 mA @ 50 kΩ

50 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(3% + 5 counts)

100 V (0% to +20%) Display range

0.01 to 6.00 MΩ

100 V (0% to +20%) Resolution

0.01 MΩ

100 V (0% to +20%) Test current

1 mA @ 100 kΩ

100 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(3% + 5 counts)

250 V (0% to +20%) Display range

0.1 to 60.0 MΩ

250 V (0% to +20%) Resolution

0.1 MΩ

250 V (0% to +20%) Test current

1 mA @ 250 kΩ

250 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(1.5% + 5 counts)

500 V (0% to +20%) Display range

0.1 to 60.0 MΩ

500 V (0% to +20%) Resolution

0.1 MΩ

500 V (0% to +20%) Test current

1 mA @ 500 kΩ

500 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(1.5% + 5 counts)

1000 V (0% to +20%) Display range

0.1 to 60.0 MΩ

1000 V (0% to +20%) Resolution

0.1 MΩ

1000 V (0% to +20%) Test current

1 mA @ 1 MΩ

1000 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(1.5% + 5 counts)

Maximum voltage applied to any terminal and common

1000 V

Storage temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating temperature

-20 °C to 55 °C (-4 °F to 131 °F)

Temperature coefficient

0.05 x (specified accuracy) per °C for temperatures 28 °C (82 °F)

Relative humidity

Noncondensing

Vibration

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

Radio frequency communication

2.4 GHz ISM Band

Radio frequency certification

FCC: T68-FBLE, IC: 6627A-FBLE

International

IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A

Korea (KCC)

Class A Equipment (Industrial Broadcasting & Communication Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Enclosure protection

IEC 60529: IP40 (non-operating)

IEC 61010-1

Pollution Degree 2

IEC 61010-2-033

CAT IV 600 V / CAT III 1000 V

Batteries

Four AA batteries (NEDA 15A or IEC LR6)

Battery life

Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.

Size (H x W x L)

5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

Weight

550 g (1.2 lb)

Altitude Operating

2000 m

Altitude Storage

12,000 m

Over-range capability

110% of range except for capacitance which is 100%

Frequency overload protection

<107 V Hz

Nominal current range

400 A
