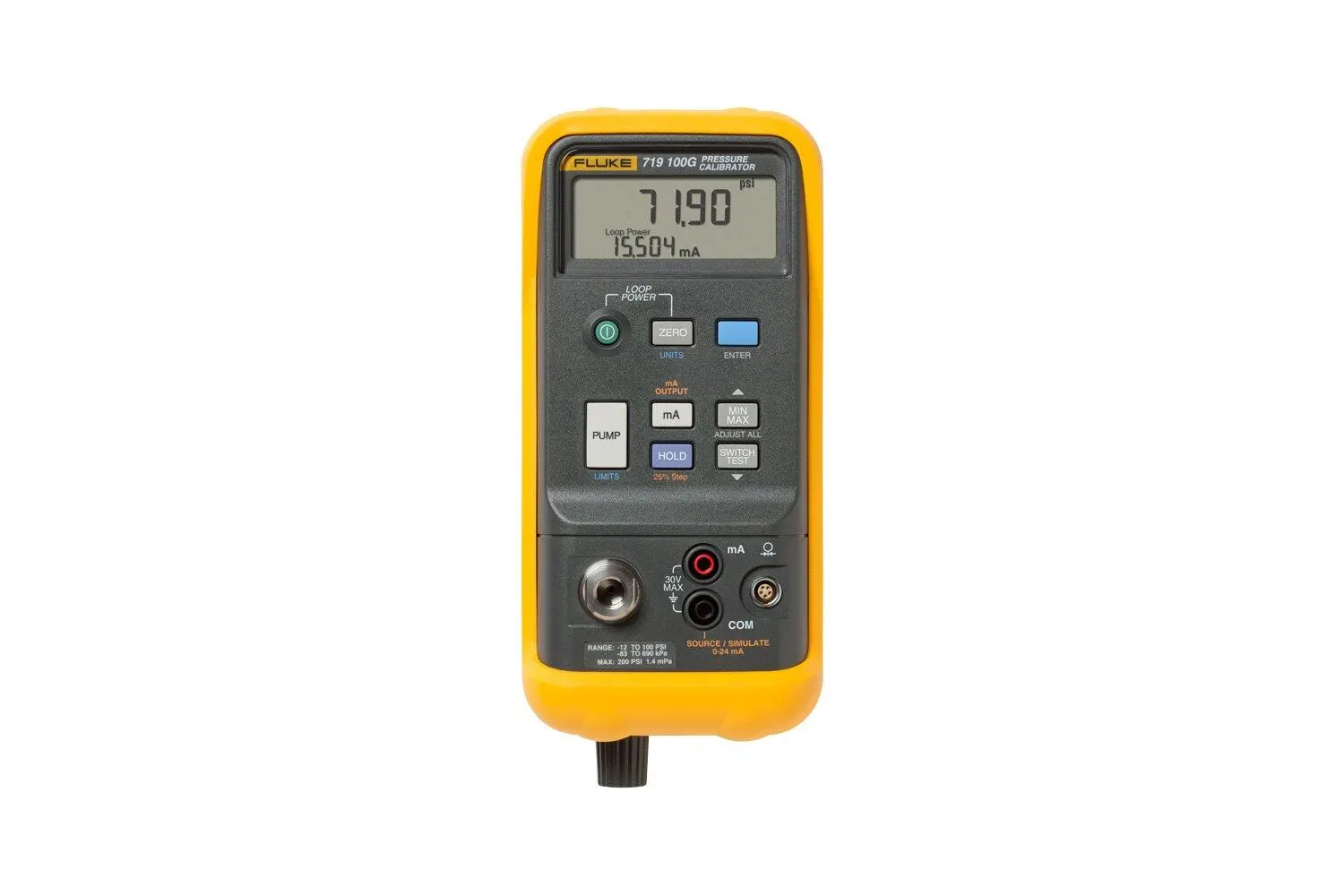

Fluke 719 Pressure Calibrator

The Fluke 719 Pressure Calibrator provides pressure calibration using the programmable pump limit settings that eliminate over-pressurization.

Manufacturer part number (MPN)

3315332

Brand

Fluke

Category

Tools

Storage temperature

-30°C to 60°C

Operating temperature

-10°C to 55°C

Relative humidity

95% (-10°C to 30°C)

Shock

1 meter drop test

Safety

CSA C22.2 No. 1010.1:1992

EMC

EN50082-1:1992 and EN55022:1994 Class B

Size (H x W x L)

60 x 87 x 210 mm

Weight

912 g (2 lb)

Battery

Two 9 V alkaline batteries

Battery life

12 hours with 12 mA into 500 Ω, 200 pump cycles to 100 psi, 500 pump cycles to 30 psi

Warranty

Three-years, one year for pump

Fluke-719 30G Range

-12 to 30 psi, -850 mbar to 2.4 bar

Fluke-719 30G Resolution

0.001 psi, 0.1 mbar

Fluke-719 30G Accuracy

0.025% range for 6 months 0.035% of range for one (1) year

Fluke-719 100G Range

-12 to 100 psi, -850 mbar to 8 bar

Fluke-719 100G Resolution

0.01 psi, 1 mbar

Fluke-719 100G Accuracy

0.025% range for 6 months 0.035% of range for one (1) year

mA Range

0 to 24 mA

mA Resolution

0.001 mA

mA Accuracy

.015% Rdg + 2 counts

Loop supply Range

24 V DC

Loop supply Accuracy

±10%

Maximum pressure generation

120 psi (8 BAR) (100 psi model)

Pump to

-30 psi in less than 15 seconds1

Pump cycles between rebuilds

5000

Total pump life

20,000 calibration cycle

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibrators/fluke-719
