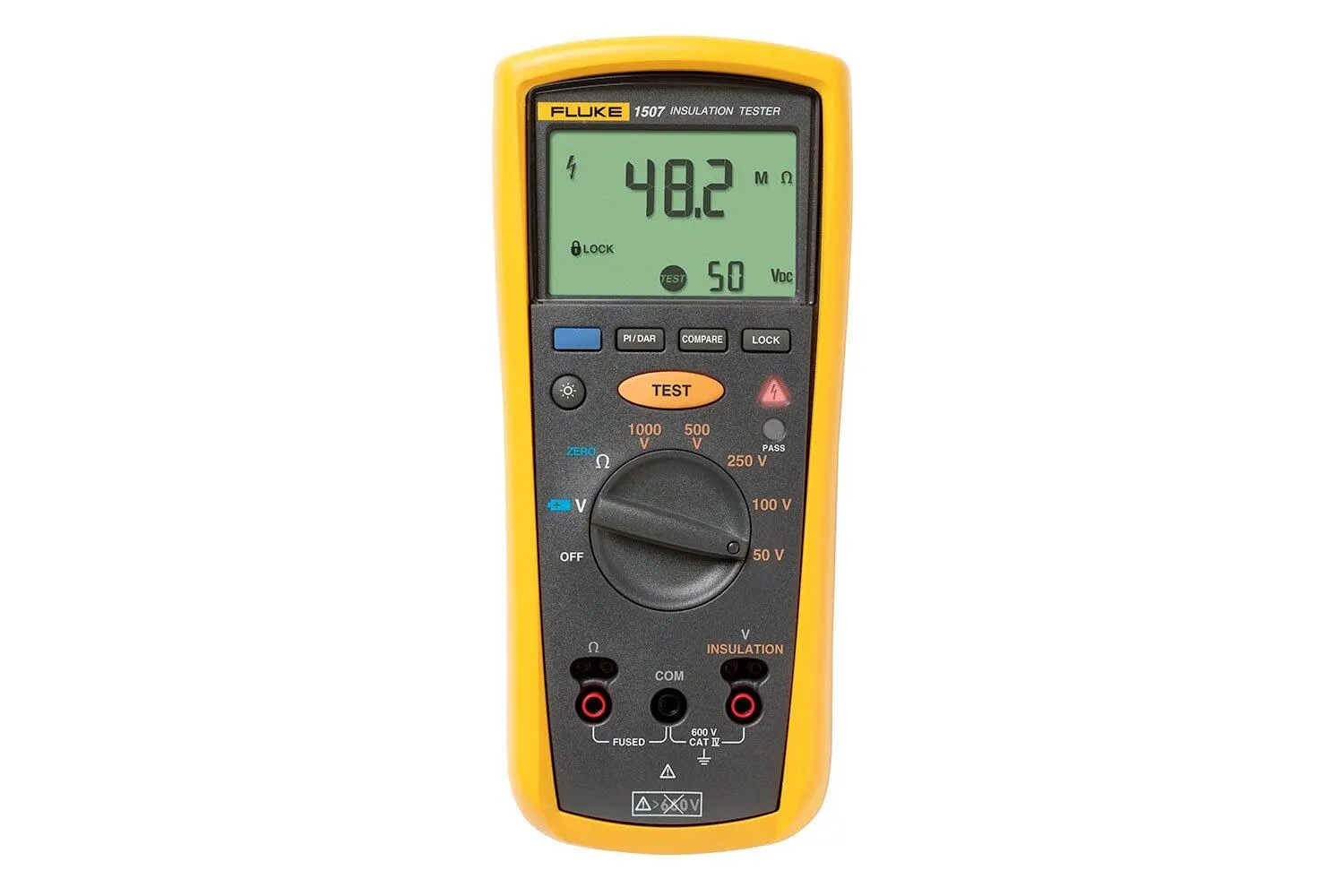

Fluke 1507 Insulation Resistance Tester

Fluke 1507 insulation resistance testers are rugged, compact, reliable & ideal for troubleshooting, preventive maintenance applications.

Manufacturer part number (MPN)

5066006

Brand

Fluke

Category

Tools

Accuracy Range

600.0 V

Accuracy Resolution

0.1 V

Accuracy 50 Hz to 400 Hz ± (% of Rdg + Digits)

±(2% + 3)

Input impedance

3 MΩ (nominal), < 100 pF

Overload protection

600 V rms or DC

Range/Resolution 20.00 Ω

0.01 Ω

Range/Resolution 20.00 kΩ

0.01 kΩ

Accuracy

±(1.5% + 3)

Open circuit test voltage

> 4.0 V, < 8 V

Short circuit current

> 200.0 mA

Measurement range

0.01 MΩ to 10 GΩ

Test voltage

50 V, 100 V, 250 V, 500 V, 1000 V

Test voltage accuracy

+ 20%, - 0%

Auto discharge

Discharge time < 0.5 second for C = 1 µF or less

Live circuit indicator

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum capacitive load

Operable with up to 1 µF load

Measure accuracy 50 V

±(3% + 5)

Measure accuracy 100 V

±(3% + 5)

Measure accuracy 250 V

±(1.5% + 5)

Measure accuracy 500 V

±(1.5% + 5)

Measure accuracy 1000 V

±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ

Storage temperature

-40°C to 60°C (-40°F to 140°F)

Operating temperature

-20°C to 55°C (-4°F to 131°F)

Temperature coefficient

0.05 x (specified accuracy) per °C for temperatures 28°C ( 82°F)

Vibration

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

Shock

1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)

Electromagnetic compatibility

In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)

Safety

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)

Certifications

CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

Batteries

Four AA batteries (NEDA 15A or IEC LR6)

Size (H x W x L)

5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

Weight

550 g (1.2 lb)

IP rating

IP40

Altitude Operating

2000 m CAT IV 600 V, 3000 m CAT III 600 V

Altitude Non-operating (storage)

12,000 m

Over-range capability

110% of range

Included accessories

TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe

HS Code

9030.33
