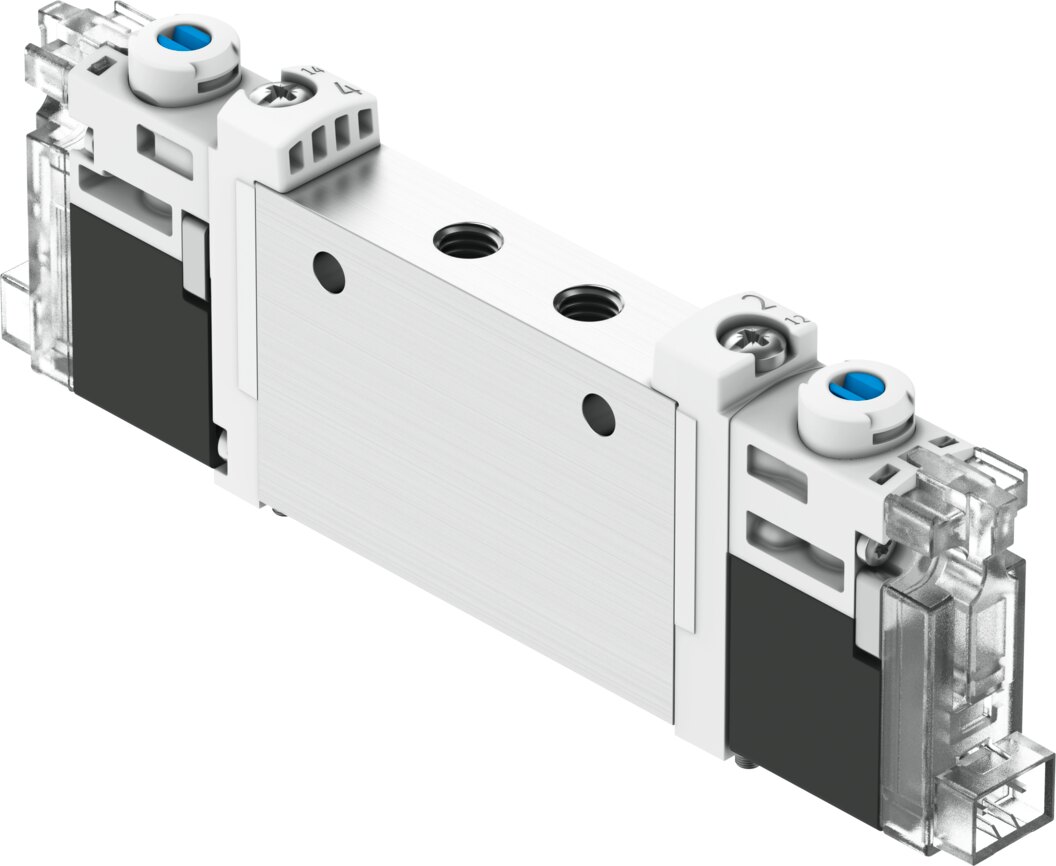

Festo VUVG-L10 Solenoid Valve bistabil 5/2 24V DC - M5", El, VUVG-L10-B52-ZT-M5-1H2L-F1A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-L10 Solenoid Valve bistabil 5/2 24V DC. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread M5", activation El, supplier type designation VUVG-L10-B52-ZT-M5-1H2L-F1A. Supplied under manufacturer part number 8164339, EAN 4052568611996, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 220 l/min
- pneumatic working port
- M5
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Approval
- RCM; c UL us - Recognised (Oil)
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal size
- 3.2 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting; Concealed
- Type of piloting
- Piloted
- Pilot air supply
- External
- Symbol
- 00991062
- lap
- Overlap
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Suitability for vacuum
- Yes
- Switching time reversal
- 9 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 0.8 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Restrictions for environmental and media temperature
- -5 - 50 °C; Without holding current reduction
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 45 g
- Electrical connection
- Plug
- Type of mounting
- On manifold rail; With through-hole
- Pilot air port 12/14
- M3
- Pneumatic connection, port 1
- M5
- Pneumatic connection, port 2
- M5
- Pneumatic connection, port 3
- M5
- Pneumatic connection, port 4
- M5
- Pneumatic connection, port 5
- M5
- Material seals
- HNBR; NBR
- Material housing
- Wrought aluminium alloy
- Material screws
- Coated steel
- EAN / GTIN
- 4052568611996
- Festo type code
- VUVG-L10-B52-ZT-M5-1H2L-F1A
- Festo order number
- 8164339
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- M5"
- Activation
- El
- Carbon footprint (EPD)
- 1.1308 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 8164339
