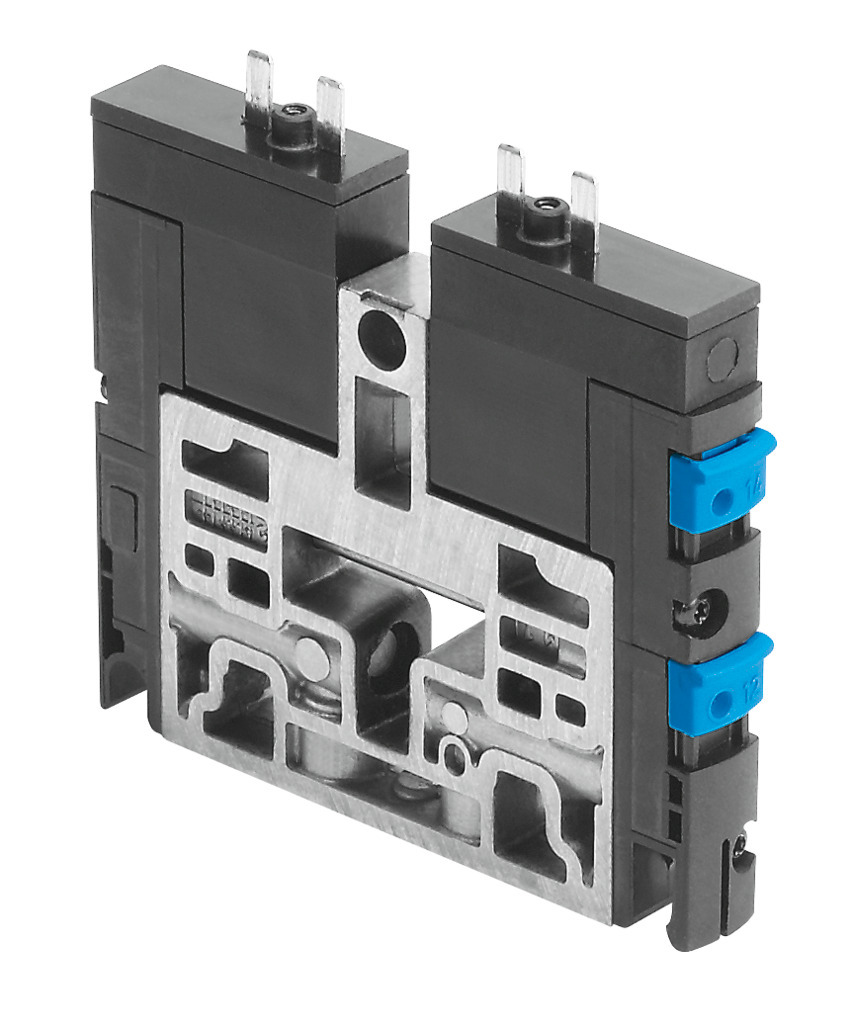

Festo CPV10 Solenoid Valve - El, CPV10-M1H-5JS-M7-B-EX
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPV10 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, supplier type designation CPV10-M1H-5JS-M7-B-EX. Supplied under manufacturer part number 550697, EAN 4052568192464, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 400 l/min
- pneumatic working port
- M7
- Operating voltage
- 24 V DC
- Operating pressure
- 0 ... 1 MPa (0 ... 10 bar)
- Design
- Piston gate valve
- Degree of protection
- IP50
- Nominal size
- 4 mm
- Exhaust-air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External; Internal
- Flow direction
- Non-reversible
- Symbol
- 00991943
- lap
- Overlap
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- b value
- 0.4
- C value
- 1.6 l/sbar
- Switching time reversal
- 10 ms
- Duty cycle
- 100% in conjunction with holding current reduction
- Required current consumption
- 0.016 A
- Max. input power Pi
- 0.76 W
- Max. input voltage Ui
- 32 V
- Max. input current Ii
- 0.2 A
- Effective internal inductivity Li
- Negligibly low
- Effective internal capacitance Ci
- Negligibly low
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 70 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- Common line
- Pilot exhaust port 82/84
- Common line
- Pneumatic connection, port 1
- Common line
- Pneumatic connection, port 11
- Common line
- Pneumatic connection, port 2
- M7
- Pneumatic connection 3/5 combined
- Common line
- Pneumatic connection, port 4
- M7
- Material seals
- HNBR; NBR
- Material housing
- Die-cast aluminium; Brass; POM; PPS; Steel
- EAN / GTIN
- 4052568192464
- Festo type code
- CPV10-M1H-5JS-M7-B-EX
- Festo order number
- 550697
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Carbon footprint (EPD)
- 1.7457 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 550697
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568192464
- MPN 550697
Product Documentation
More from Festo
Festo
Festo HEP Inflation valve Midi - 3/4", Pneumatic, Spring, HEP, HEP-3/4-D-MIDI
193253
Festo
Festo AEVU Compact cylinder - 16mm, M5, 25mm, AEVU-16-25-A-P-A
156985
Festo
Festo LR Pressure regulator Mini - 1/8", 0,5 - 7bar, LR-1/8-D-7-O-I-MINI
192305
Festo
Festo VUVS-L25 Solenoid Valve 5/2 - G1/4", El, Spring, VUVS-L25-M52-MZD-G14-F8
575510
Festo

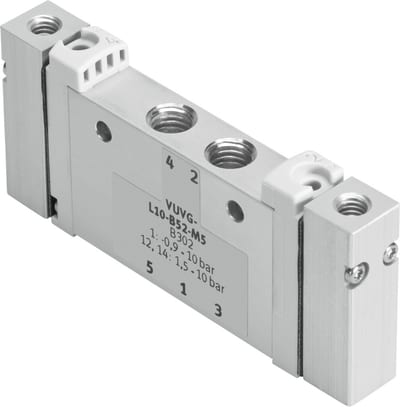

Festo VUWG-L10 Pneumatic valve - M5", Air, Spring, VUWG-L10-T32U-M-M5
574252
Festo

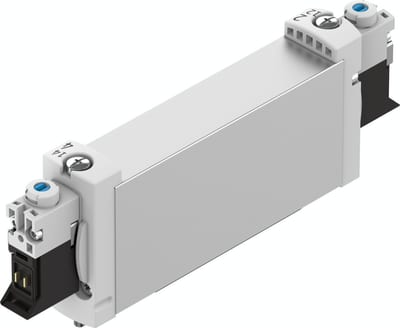

Festo VUVG-B18 Solenoid Valve - El, Spring, VUVG-B18-P53U-ZT-F-1P3
574454
Festo

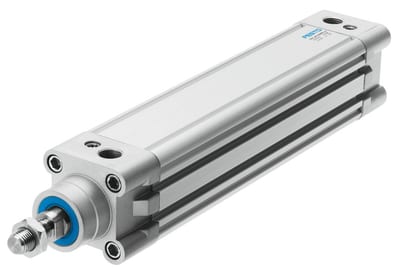

Festo DNC Standard cylinder - 40mm, G1/4", 100mm, DNC-40-100-PPV
