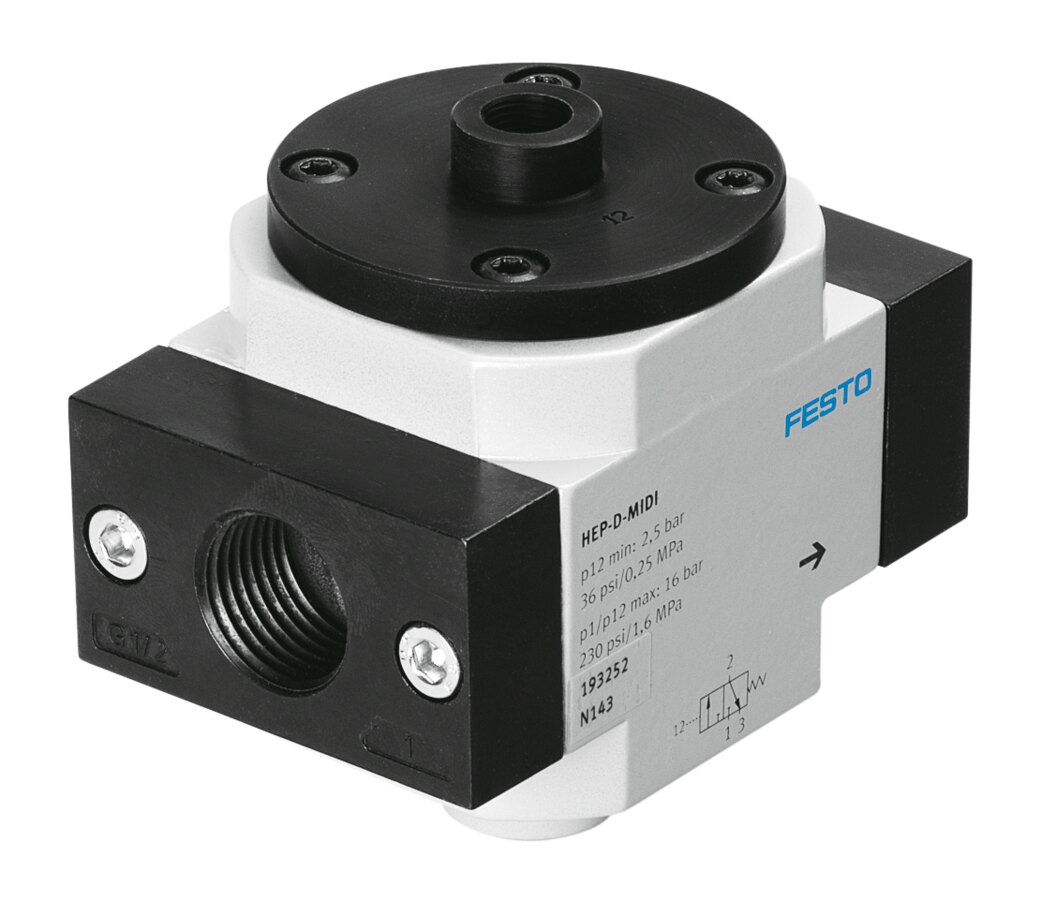

Festo HEP Inflation valve Midi - 3/4", Pneumatic, Spring, HEP, HEP-3/4-D-MIDI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HEP Inflation valve Midi. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/4", activation Pneumatic, return Spring, series HEP. Supplied under manufacturer part number 193253, EAN 4052568153304, HS code 8481.20, country of origin Hungary.
Technical Specifications
- Design
- Piston gate valve Type of actuation: Pneumatic Sealing principle: Soft Exhaust-air function: Cannot be throttled Type of reset: Mechanical spring Symbol: 00991173 Valve function: 3/2-way, single solenoid, closed Operating pressure: 0 ... 1.6 MPa (0 ... 16 bar) Pilot pressure: 3 ... 16 bar C value: 16.2 l/sbar b value: 0.47 Standard nominal flow rate (standardised to DIN 1343): 4100 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformity: VDMA24364-B1/B2-L Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Type of mounting: Inline installation; With accessories Mounting position: Any Flow direction: Non-reversible Product weight: 500 g Pneumatic connection, port 1: G3/4 Pneumatic connection, port 2: G3/4 Pneumatic connection, port 3: G1/4 Pilot air port 12: G1/8 Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas material seals: NBR material housing: Die-cast aluminium EAN / GTIN: 4052568153304 Festo type code: HEP-3/4-D-MIDI Festo order number: 193253 Product type: Air treatment Product group: Pneumatics Thread: 3/4" Activation: pneumatic Return: Spring Series: HEP Carbon footprint (EPD): 13.6930 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 193253
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568153304
- MPN 193253
Product Documentation
