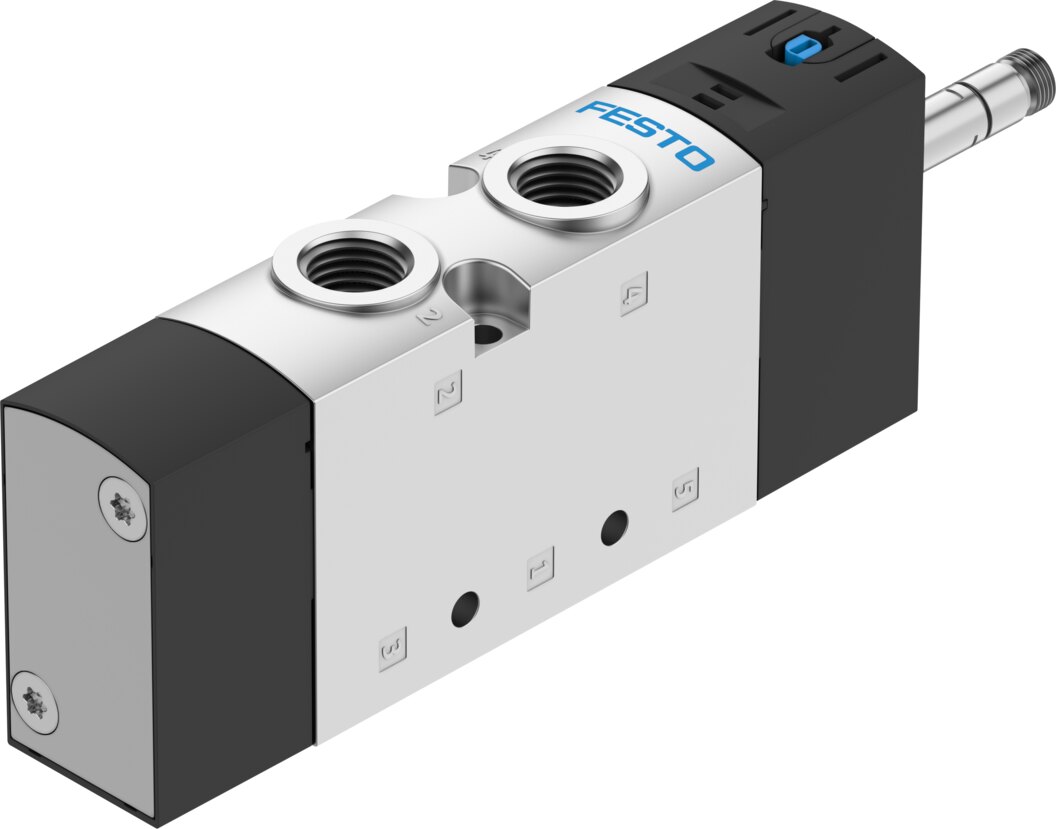

Festo VUVS-L25 Solenoid Valve 5/2 - G1/4", El, Spring, VUVS-L25-M52-MZD-G14-F8
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L25 Solenoid Valve 5/2. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/4", activation El, return Spring, supplier type designation VUVS-L25-M52-MZD-G14-F8. Supplied under manufacturer part number 575510, EAN 4052568260675, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Valve size
- 26.5 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1300 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- DNVGL-TAA000011J
- Nominal size
- 6.9 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991025
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- b value
- 0.4
- C value
- 5.3 l/sbar
- Switching time off
- 47 ms
- Switching time on
- 12 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse with 1 signal
- 3600 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 311 g
- Type of mounting
- On manifold rail; With through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 84
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- HNBR; NBR
- Material housing
- Die-cast aluminium; painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- EAN / GTIN
- 4052568260675
- Festo type code
- VUVS-L25-M52-MZD-G14-F8
- Festo order number
- 575510
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 7.6318 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 575510
