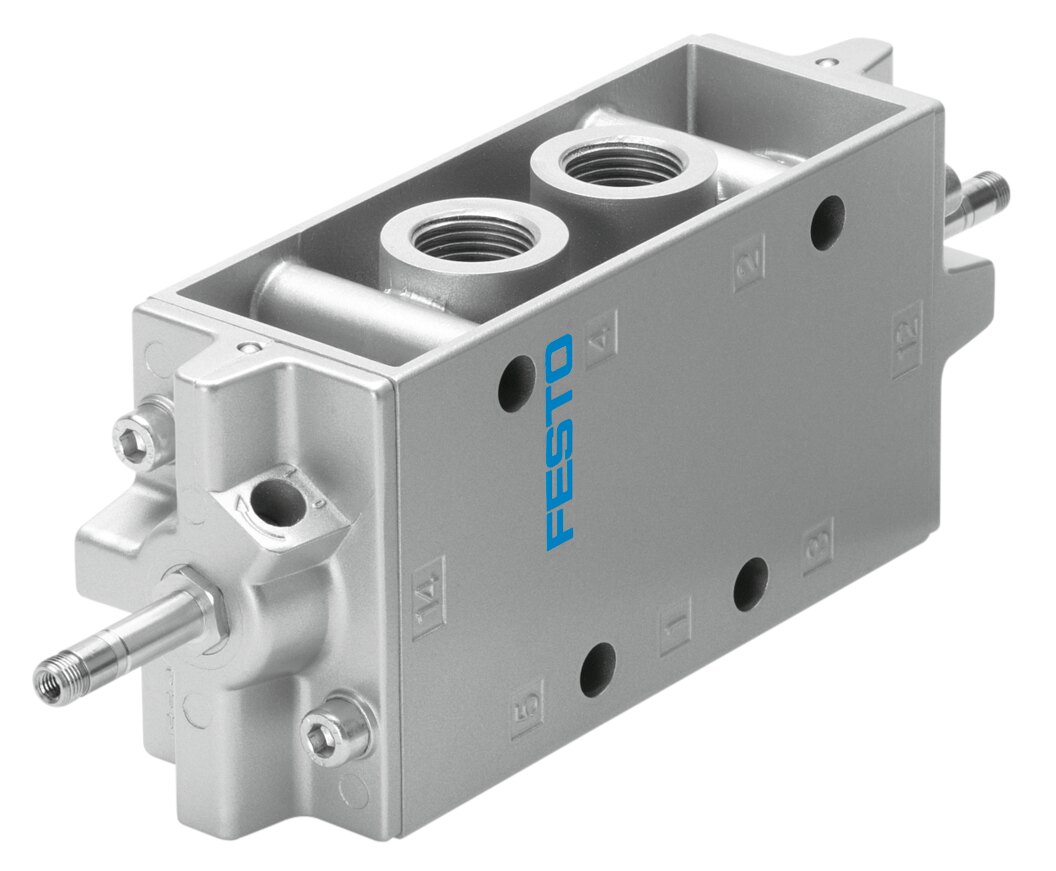

Festo JMFH Solenoid Valve - G1/2", El, Air, JMFH-5-1/2
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFH Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/2", activation El, return Air, supplier type designation JMFH-5-1/2. Supplied under manufacturer part number 10166, EAN 4052568111670, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Construction width
- 52 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 4500 l/min
- pneumatic working port
- G1/2
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Design
- Poppet seat
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65
- Nominal size
- 14 mm
- Grid dimension
- 69 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Flow direction
- Non-reversible
- Symbol
- 00995754
- lap
- Underlap
- b value
- 0.3
- C value
- 19.5 l/sbar
- Max. switching frequency
- 25 Hz
- Switching time reversal
- 20 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 1210 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail; With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Pneumatic connection, port 3
- G1/2
- Pneumatic connection, port 4
- G1/2
- Pneumatic connection, port 5
- G1/2
- Material seals
- NBR; TPE-U(PU)
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568111670
- Festo type code
- JMFH-5-1/2
- Festo order number
- 10166
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/2"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 21.6803 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 10166
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568111670
- MPN 10166
Product Documentation
More from Festo
Festo

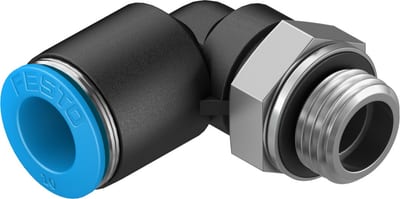

Festo QSL Elbow fitting push-in composite BSPP nipple - 10mm, 1/4", QSL-G1/4-10
186122
Festo

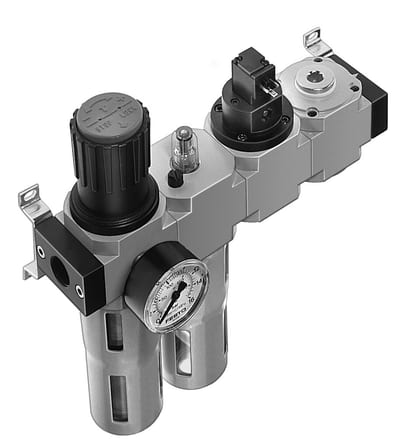

Festo FRC Service Unit Mini automatic - 1/4", 2,5 - 12bar, 40MY, FRC-1/4-D-MINI-KE-A
185830
Festo
Festo PRS Connection block - 3/8", PRS-1/8-8-BB
30548
Festo

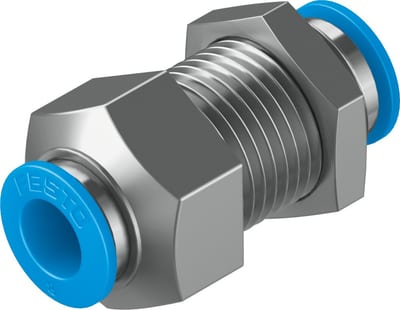

Festo QSS Bulkhead connection push-in nickel-plated brass - 8mm, 8mm, QSS-8-F
130642
Festo

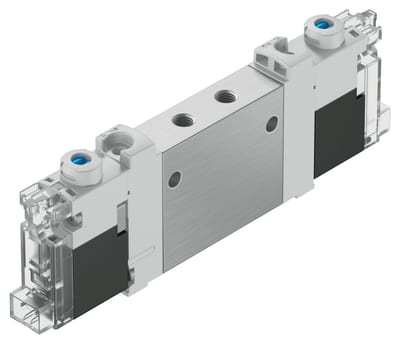

Festo VUVG-LK10 Solenoid Valve 2X3/2 24V DC - El, Spring, VUVG-LK10-T32C-AT-M5-1H2L-S
8042538
Festo

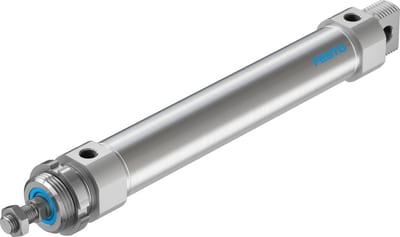

Festo DSNU Round cylinder double-acting - 40mm, G1/4", 200mm, DSNU-40-200-PPV-A
196037
Festo

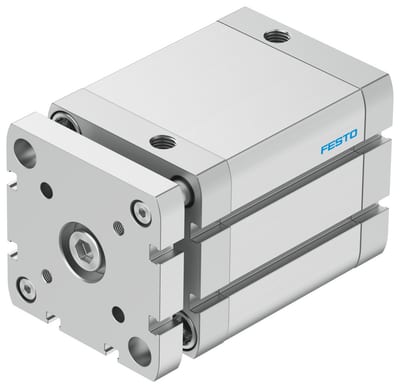

Festo ADNGF Compact cylinder - 63mm, G1/8, 50mm, ADNGF-63-50-PPS-A
574055
Festo

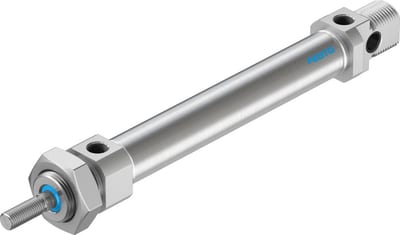

Festo DSNU Standard cylinder double-acting - 20mm, 8mm, G1/8", 100mm, DSNU-20-100-PPS-A
