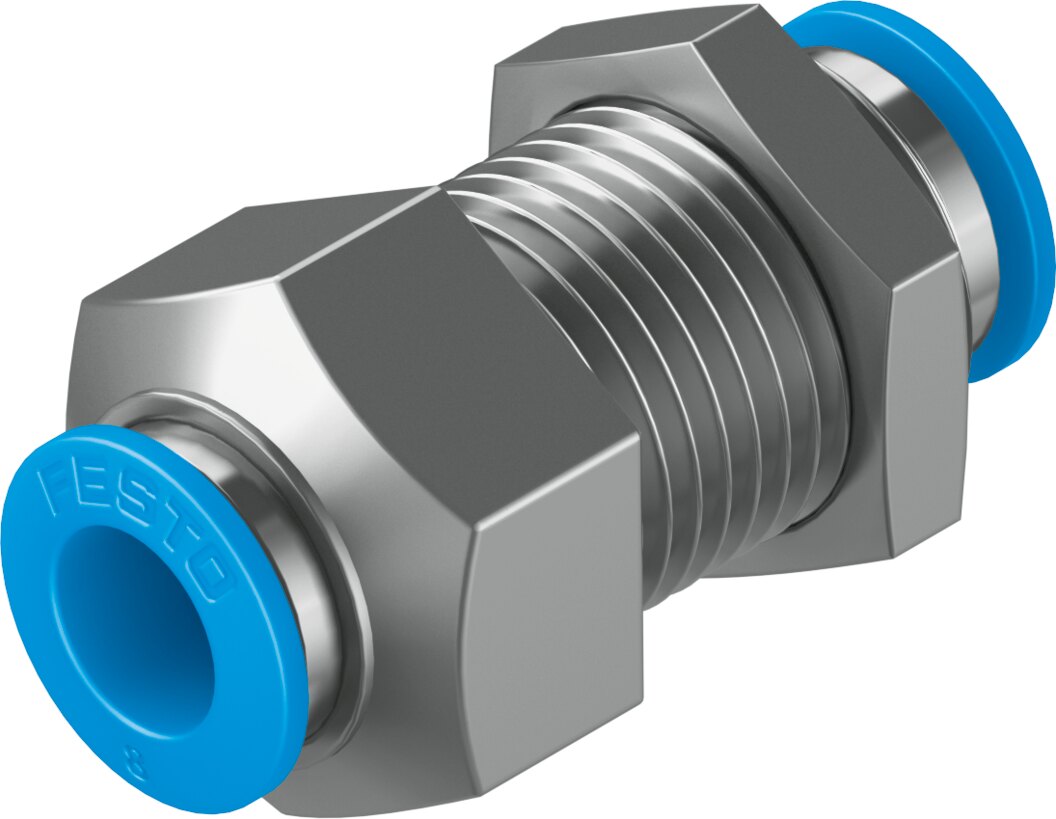

Festo QSS Bulkhead connection push-in nickel-plated brass - 8mm, 8mm, QSS-8-F

Festo QSS Bulkhead connection push-in nickel-plated brass. Collectors C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 8 mm, outer hose diameter 2 8 mm, supplier type designation QSS-8-F. Supplied under manufacturer part number 130642, EAN 4052568023928, HS code 7412.20, country of origin Japan.

Size

Standard

Nominal size

5.5 mm

Tubing insertion depth

18.2 mm

Mounting position

Any

Design

Bulkhead (Push-pull principle)

Size of pack

10

Operating pressure complete temperature range

-0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)

Temperature-dependent operating pressure

-0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)

Note on operating pressure

Water: max. 0.6 MPa at max. 50°C

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)

Note on operating and pilot medium

Lubricated operation possible

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Ambient temperature

-10 ... 80 °C

Product weight

40 g

Pneumatic connection, port 1

For tubing outer diameter of 8 mm

Pneumatic connection, port 2

For tubing outside diameter of 8 mm

Colour of release ring

Blue

Material housing

Brass, nickel-plated

Material release ring

POM

Material nut

Nickel-plated brass

Material tubing seal

NBR

Material tubing clamp component

High-alloy stainless steel

EAN / GTIN

4052568023928

Festo type code

QSS-8-F

Festo order number

130642

Product type

Collectors C

Product group

Pneumatics

Outer hose diameter

8 mm

Temperature min

-10 °C

Temperature max

80 °C

Sales unit

Pack

Carbon footprint (EPD)

0.2325 kg CO2e per pcs

Country of origin

Japan

Customs tariff code (EU CN)

74122000

HS code

7412.20

Manufacturer part number

130642

HS Code

7412.20

• EAN 4052568023928
• MPN 130642
