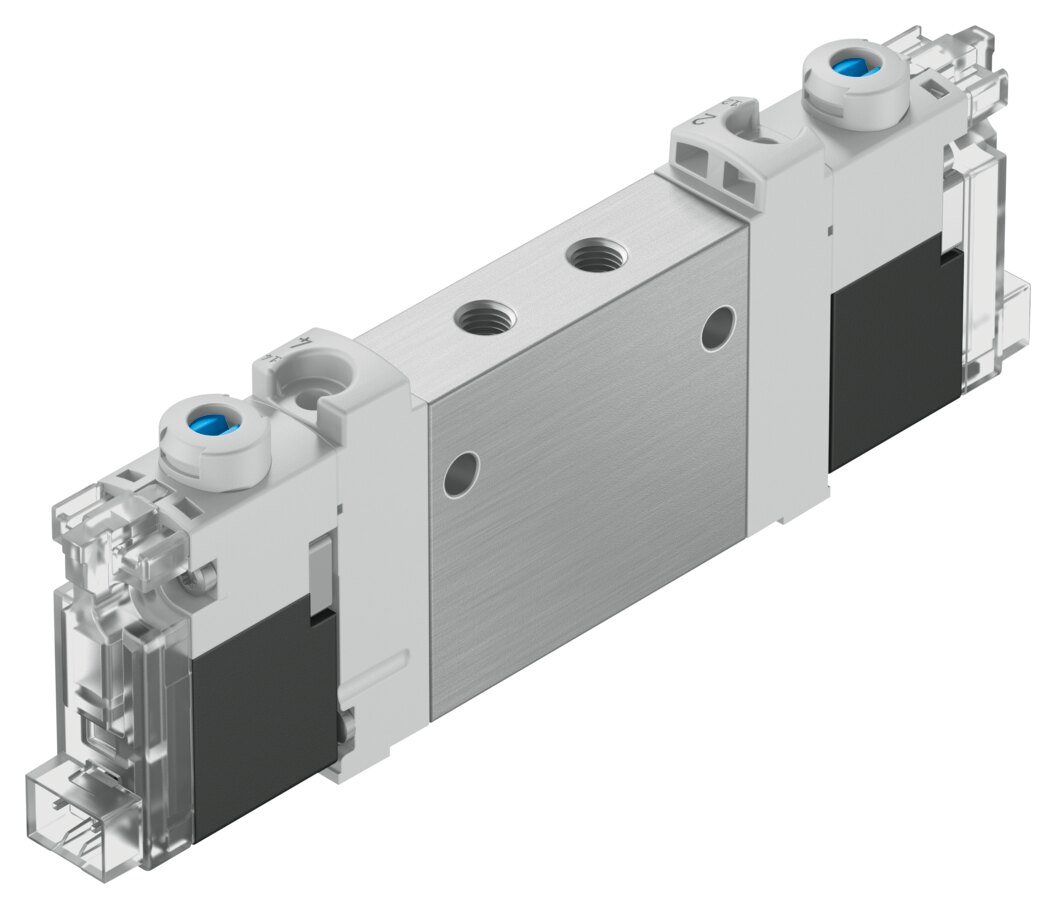

Festo VUVG-LK10 Solenoid Valve 2X3/2 24V DC - El, Spring, VUVG-LK10-T32C-AT-M5-1H2L-S
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-LK10 Solenoid Valve 2x3/2 24V DC. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Spring, supplier type designation VUVG-LK10-T32C-AT-M5-1H2L-S. Supplied under manufacturer part number 8042538, EAN 4052568286712, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 2x3/2 closed monostable
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 180 l/min
- pneumatic working port
- M5
- Operating voltage
- 24 V DC
- Operating pressure
- 0.15 ... 0.7 MPa (1.5 ... 7 bar)
- Design
- Piston slide with sealing ring
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00992904
- lap
- Overlap
- Signal status display
- LED
- Max. switching frequency
- 2 Hz
- Switching time off
- 14 ms
- Switching time on
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 24 V DC: 0.8 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 zone III
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 55 g
- Electrical connection
- Plug
- Type of mounting
- On manifold rail; With through-hole
- Pneumatic connection, port 2
- M5
- Pneumatic connection, port 4
- M5
- Material seals
- HNBR; NBR
- Material housing
- Wrought aluminium alloy
- EAN / GTIN
- 4052568286712
- Festo type code
- VUVG-LK10-T32C-AT-M5-1H2L-S
- Festo order number
- 8042538
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Temperature min
- -5 °C
- Temperature max
- 50 °C
- Working pressure
- 7 bar
- Carbon footprint (EPD)
- 1.2003 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 8042538
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568286712
- MPN 8042538
