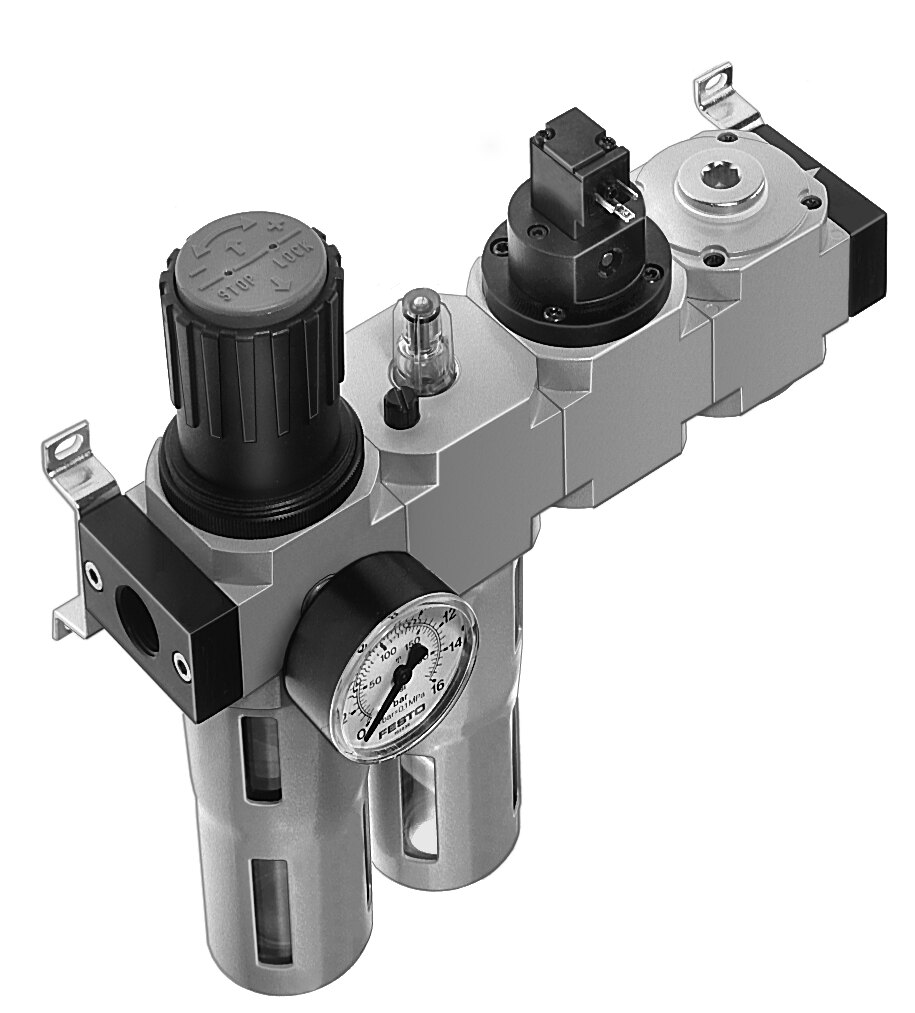

Festo FRC Service Unit Mini automatic - 1/4", 2,5 - 12bar, 40MY, FRC-1/4-D-MINI-KE-A

Festo FRC Service Unit Mini automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", press area 2.5 to 12 bar, filter element 40 My, supplier type designation FRC-1/4-D-MINI-KE-A. Supplied under manufacturer part number 185830, EAN 4052568145880, HS code 8481.10, country of origin Hungary.

Size

Mini Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Grade of filtration: 40 µm Condensate drain: Fully automatic Design: Proportional standard mist lubricator; Safety start-up valve Max. condensate volume: 22 ml Bowl guard: Metal bowl guard Symbol: 00991564 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.3 ... 1.2 MPa (3 ... 12 bar) (43.5 ... 174 psi) Pressure regulation range: 0.25 ... 1.2 MPa (2.5 ... 12 bar) (36.25 ... 174 psi) Max. pressure hysteresis: 0.015 MPa (0.15 bar) (2.175 psi) Standard nominal flow rate (standardised to DIN 1343): 650 l/min Operating medium: Inert gas LABS (PWIS) conformity: VDMA24364-B1/B2-L Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:-]; Inert gas Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Product weight: 1200 g Type of mounting: With accessories Pneumatic connection, port 1: G1/4 Pneumatic connection, port 2: G1/4 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568145880 Festo type code: FRC-1/4-D-MINI-KE-A Festo order number: 185830 Product type: Air treatment Product group: Pneumatics Thread: 1/4" Press Area: 2.5 to 12 bar Filter element: 40 My Carbon footprint (EPD): 26.6691 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 185830

HS Code

8481.10

• EAN 4052568145880
• MPN 185830
