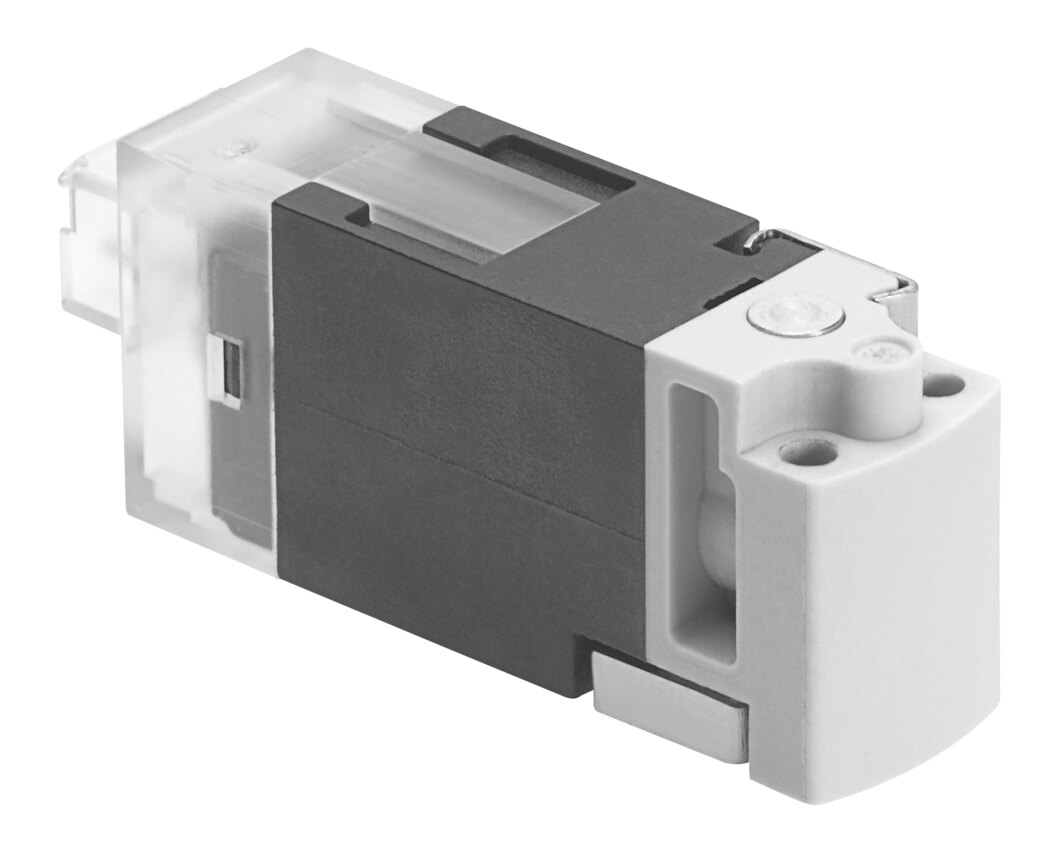

Festo MHA1 Solenoid Valve - El, Spring, MHA1-M1LCH-2/2G-1.5-HC

Festo MHA1 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Spring, supplier type designation MHA1-M1LCH-2/2G-1.5-HC. Supplied under manufacturer part number 557864, EAN 4052568096540, HS code 8481.20, country of origin Germany.

Valve function

2/2-way, single solenoid, closed

Type of actuation

Electrical

Construction width

10 mm

Standard nominal flow rate (standardised to DIN 1343)

30 l/min

pneumatic working port

Sub-base

Operating voltage

24 V DC

Operating pressure

0 ... 1.5 bar

Design

Poppet valve with spring return

Type of reset

Mechanical spring

Degree of protection

IP40

Approval

RCM

CE mark (see declaration of conformity)

To EU EMC Directive; In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions

Nominal size

1.5 mm

Grid dimension

10 mm

Exhaust-air function

Cannot be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Non-detenting

Type of piloting

Direct

Flow direction

Non-reversible

Symbol

00991398

Signal status display

LED

Operating pressure, reversible

-0.95 ... 0 bar

Suitability for vacuum

Yes

Standard flow rate (standardised to DIN 1343)

30 l/min

Max. switching frequency

10 Hz

Switching time off

6 ms

Switching time on

6 ms

Duty cycle

100%

Characteristic coil data

24 V DC: low-current phase 0.7 W, high-current phase 3.0 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformity

VDMA24364-B2-L

Storage temperature

-20 ... 60 °C

Media temperature

-5 ... 50 °C

Ambient temperature

-5 ... 50 °C

Product weight

10 g

Max. cable length

30 M

Electrical connection

Plug KMH

Type of mounting

On sub-base

Pneumatic connection, port 1

Sub-base

Pneumatic connection, port 11

Sub-base

Pneumatic connection, port 2

Sub-base

Material seals

Fluoro rubber; HNBR; NBR

Material housing

Reinforced PPS

Material screws

Steel

EAN / GTIN

4052568096540

Festo type code

MHA1-M1LCH-2/2G-1.5-HC

Festo order number

557864

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Activation

El

Return

Spring

Carbon footprint (EPD)

0.1851 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

Manufacturer part number

557864

HS Code

8481.20
