Festo LRS Pressure regulator Midi - 3/8", 0,5 - 12bar, LRS-3/8-D-MIDI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRS Pressure regulator Midi. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/8", press area 0.5 to 12 bar, supplier type designation LRS-3/8-D-MIDI. Supplied under manufacturer part number 194634, EAN 4052568153717, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator
- Controller function
- Output pressure constant; With primary pressure compensation; With secondary exhausting
- Symbol
- 00991538
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar) (2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 3200 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1250 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Material sub-base
- Die-cast zinc
- Material seals
- NBR
- Material housing
- Die-cast zinc
- EAN / GTIN
- 4052568153717
- Festo type code
- LRS-3/8-D-MIDI
- Festo order number
- 194634
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Press Area
- 0.5 to 12 bar
- Carbon footprint (EPD)
- 9.7066 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
- Manufacturer part number
- 194634
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568153717
- MPN 194634
Product Documentation
More from Festo
Festo
Festo CRHBN Foot bracket - 20/25, CRHBN-20/25X1
161867
Festo
Festo VMPA14 Solenoid Valve - G1/8", El, VMPA14-M1H-J-G1/8-PI
8023542
Festo
Festo MHA1 Solenoid Valve - El, Spring, MHA1-M1LCH-2/2G-1.5-HC
557864
Festo

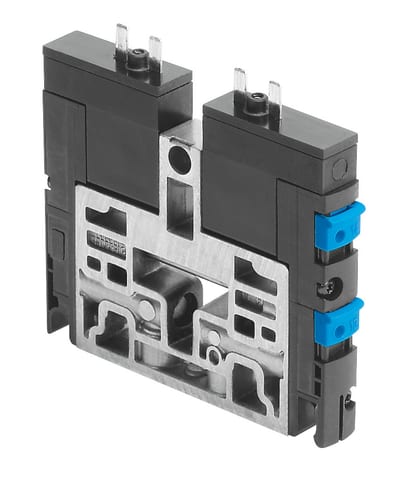

Festo CPV10 Solenoid Valve - El, CPV10-M1H-5JS-M7-B-EX
550697
Festo

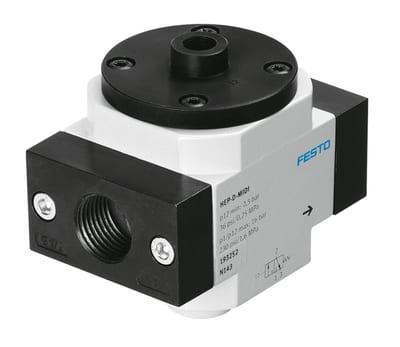

Festo HEP Inflation valve Midi - 3/4", Pneumatic, Spring, HEP, HEP-3/4-D-MIDI
193253
Festo

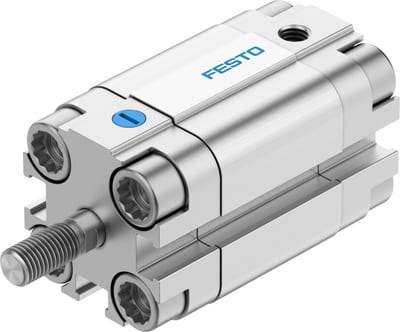

Festo AEVU Compact cylinder - 16mm, M5, 25mm, AEVU-16-25-A-P-A
156985
Festo

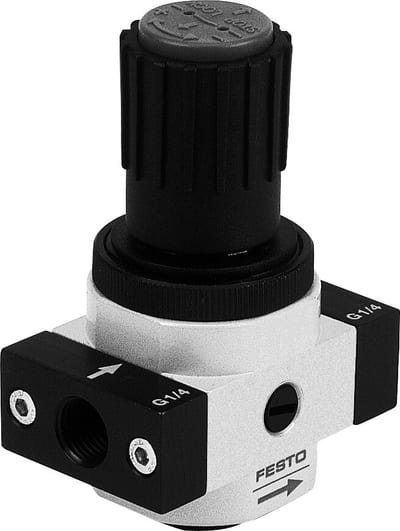

Festo LR Pressure regulator Mini - 1/8", 0,5 - 7bar, LR-1/8-D-7-O-I-MINI
192305
Festo

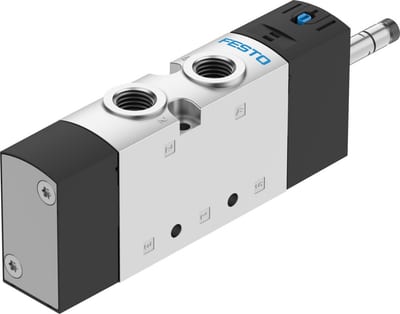

Festo VUVS-L25 Solenoid Valve 5/2 - G1/4", El, Spring, VUVS-L25-M52-MZD-G14-F8
