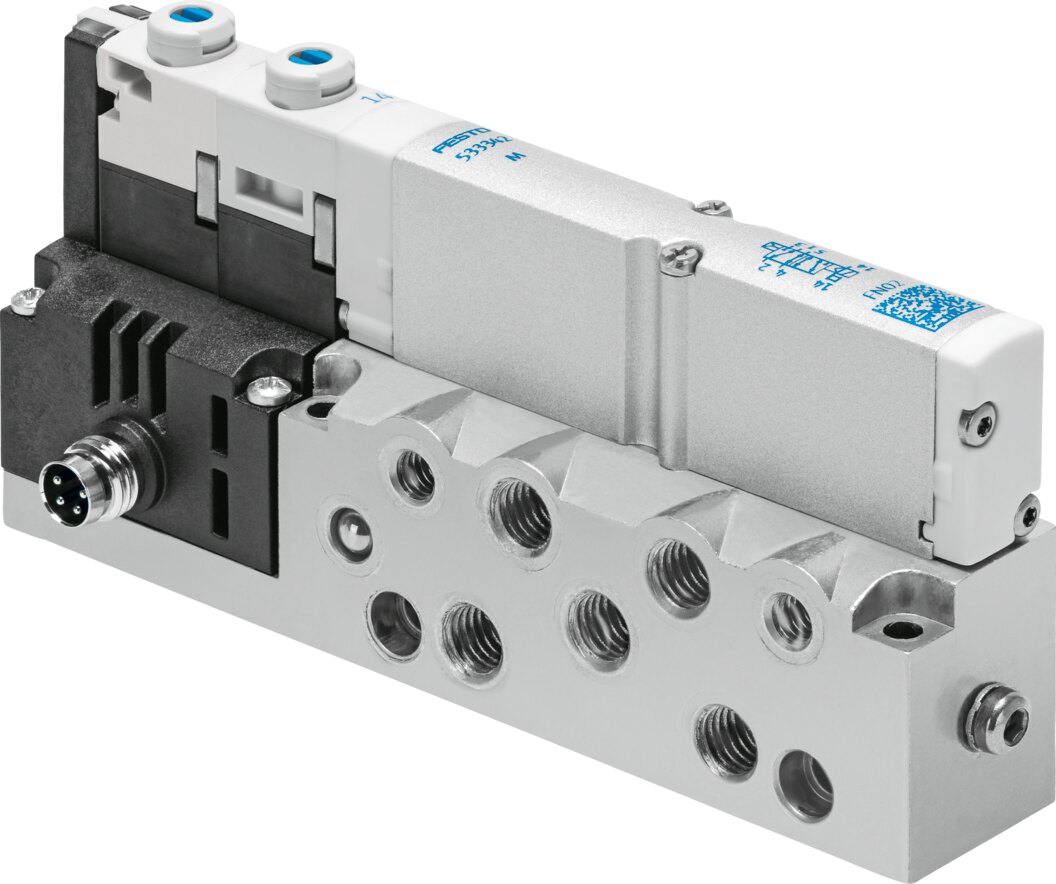

Festo VMPA14 Solenoid Valve - G1/8", El, VMPA14-M1H-J-G1/8-PI

Festo VMPA14 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation El, supplier type designation VMPA14-M1H-J-G1/8-PI. Supplied under manufacturer part number 8023542, EAN 4052568278571, HS code 8481.20, country of origin Germany.

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Valve size

14 mm

Standard nominal flow rate (standardised to DIN 1343)

590 l/min

pneumatic working port

G1/8

Operating voltage

24 V DC

Operating pressure

0.3 ... 0.8 MPa (3 ... 8 bar)

Design

Piston gate valve

Approval

c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU EMC Directive; In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions

Degree of protection

IP65; To IEC 60529

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting; Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991067

lap

Overlap

Signal status display

Yes

Pilot pressure

0.3 ... 0.8 MPa (3 ... 8 bar)

Suitability for vacuum

No

Standard nominal flow rate with QS-8

590 l/min

Switching time on

9 ms

Switching time reversal

24 ms

Max. positive test pulse with 0 signal

400 µs

Max. negative test pulse with 1 signal

200 µs

Permissible voltage fluctuations

+/-25%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Storage temperature

-20 ... 40 °C

Media temperature

-5 ... 50 °C

Relative air humidity

Max. 90% at 40 °C

Ambient temperature

-5 ... 50 °C

Max. tightening torque for valve mounting

0.65 Nm

Product weight

255 g

Electrical connection

M8x1; Plug; To EN 60947-5-2

Type of mounting

With through-hole

Pneumatic connection, port 1

G1/8

Pneumatic connection, port 2

G1/8

Pneumatic connection, port 3

G1/8

Pneumatic connection, port 4

G1/8

Pneumatic connection, port 5

G1/8

Material seals

NBR

Material housing

Die-cast aluminium

EAN / GTIN

4052568278571

Festo type code

VMPA14-M1H-J-G1/8-PI

Festo order number

8023542

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

G1/8"

Activation

El

Carbon footprint (EPD)

4.7788 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

Manufacturer part number

8023542

HS Code

8481.20
