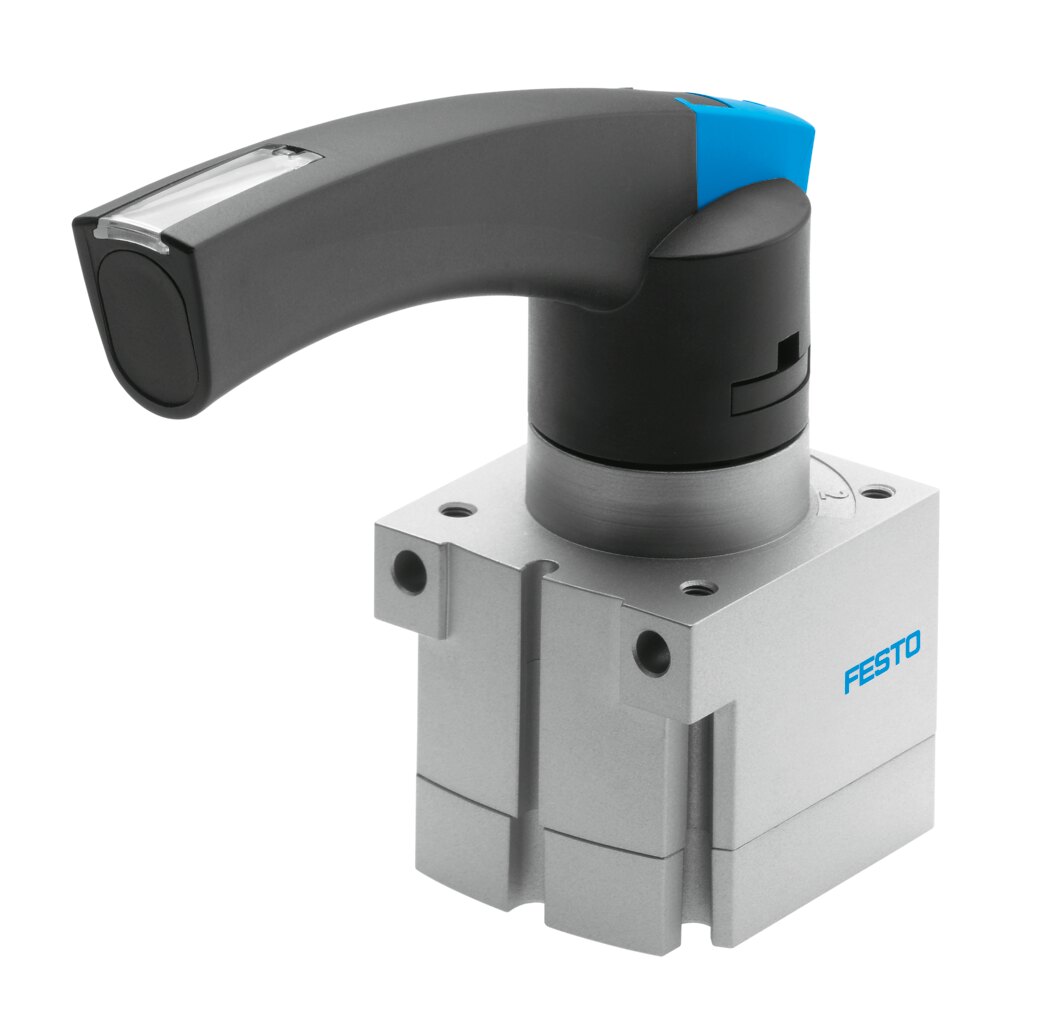

Festo VHER-P-H Hand slide valve 4/3 - Rotary knob, Rotary knob, 1/8", VHER-P-H-B43C-B-G18
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VHER-P-H Hand slide valve 4/3. Pneumatic Valve Manual (Technique / Pneumatics / Pneumatics - Valves). Principal data: return Rotary knob, activation Rotary knob, thread 1/8", supplier type designation VHER-P-H-B43C-B-G18. Supplied under manufacturer part number 3488209, EAN 4052568269906, HS code 8481.20, country of origin Brazil.
Technical Specifications
- Valve function
- 4/3-way, closed
- Type of actuation
- Manual
- Construction width
- 42 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 800 l/min
- pneumatic working port
- G1/8
- Operating pressure
- 0 ... 10 bar
- Note on operating pressure
- In the case of dual-pressure operation, the pressure at port 1 must be higher than at port 3.
- Design
- Rotary switching valve
- Nominal size
- 6 mm
- Exhaust-air function
- Can be throttled
- Instructions on use
- Actuate manually only
- Actuator lock
- can be closed with accessories
- Sealing principle
- Hard
- Type of piloting
- Direct
- Flow direction
- Non-reversible
- Symbol
- 00995944
- Overlap
- Yes
- Switching position indicator
- With accessories
- Explosion protection
- Zone 2 (ATEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -20 ... 80 °C
- Ambient temperature
- -20 ... 80 °C
- Actuating torque
- 0.9 Nm
- Product weight
- 125 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Material seals
- NBR
- Material housing
- PA
- Material lever
- PA
- EAN / GTIN
- 4052568269906
- Festo type code
- VHER-P-H-B43C-B-G18
- Festo order number
- 3488209
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Rotary knob
- Activation
- Rotary knob
- Thread
- 1/8"
- Working pressure
- 10 bar
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Carbon footprint (EPD)
- 0.9138 kg CO2e per pcs
- Country of origin
- Brazil
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 3488209
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568269906
- MPN 3488209
