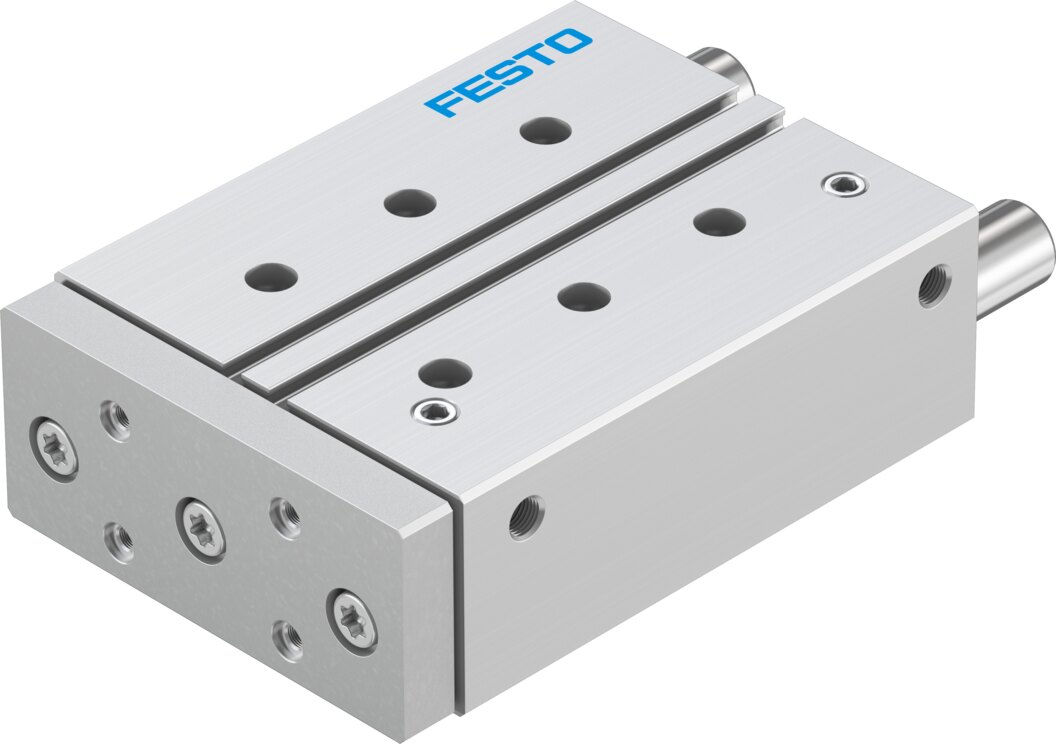

Festo DFM Guide Cylinder - 40mm, G1/8, 100mm, DFM-40-100-P-A-GF
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM Guide Cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 40 mm, port size G1/8, stroke rate 100 mm, supplier type designation DFM-40-100-P-A-GF. Supplied under manufacturer part number 170867, EAN 4052568139773, HS code 8412.31, country of origin Germany.
Technical Specifications
- Distance from centre of gravity of load to yoke plate xs
- 50 mm
- Stroke
- 100 mm
- Piston diameter
- 40 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Symbol
- 00991737
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.7 J
- Max. force Fy
- 1227 N
- Max. force Fy static
- 1227 N
- Max. force Fz
- 1227 N
- Max. force Fz static
- 1227 N
- Max. moment Mx
- 53.97 Nm
- Max. torque Mx static
- 53.97 Nm
- Max. moment My
- 35.57 Nm
- Max. torque My static
- 35.57 Nm
- Max. moment Mz
- 35.57 Nm
- Max. torque Mz static
- 35.57 Nm
- Max. permissible torque load Mx as a function of stroke
- 7.94 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 686 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 754 N
- Moving mass
- 1743 g
- Product weight
- 3595 g
- alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568139773
- Festo type code
- DFM-40-100-P-A-GF
- Festo order number
- 170867
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 72.1066 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 170867
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568139773
- MPN 170867
Product Documentation
More from Festo
Festo

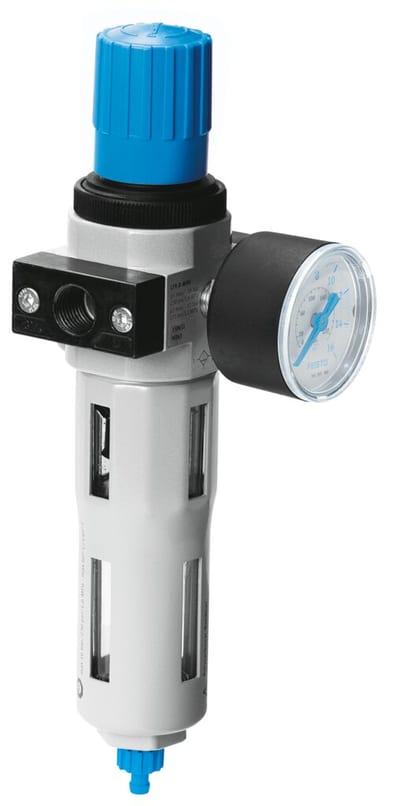

Festo LFR Filter controller Maxi automatic - 3/4", 0,5 - 12bar, 5MY, LFR-3/4-D-5M-MAXI-A
162732
Festo

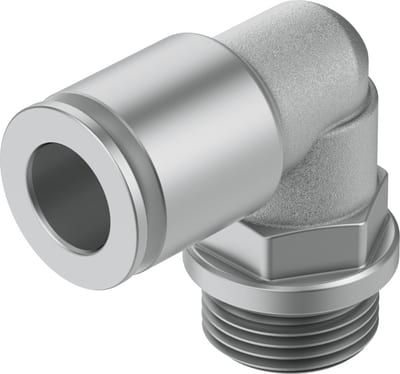

Festo NPQH-L Elbow fitting push-in Brass, chemically nickel-plated nipple - 10mm, 3/8", NPQH-L-G38-Q10-P10
578288
Festo

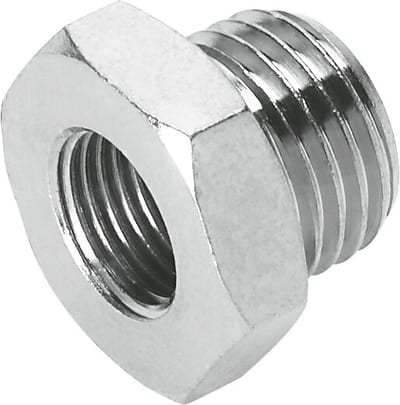

Festo NPFC-R Reducer nipple brass, nickel-plated metric - 7-5mm, NPFC-R-M7-M5-MF
8069228
Festo

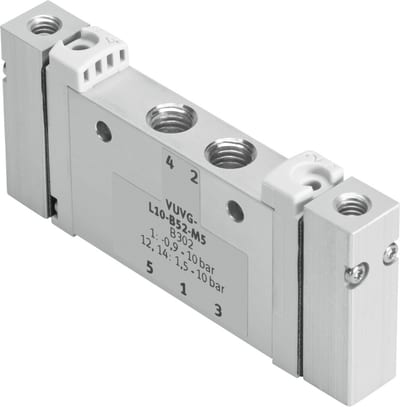

Festo VUWG-L10 Pneumatic valve - M5", Air, Spring, VUWG-L10-T32C-A-M5
573805
Festo

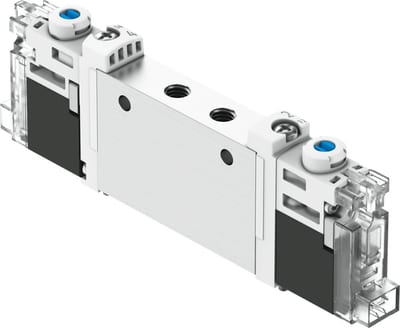

Festo VUVG-L10 Solenoid Valve bistabil 5/2 24V DC - M5", El, VUVG-L10-B52-ZT-M5-1H2L-F1A
8164339
Festo

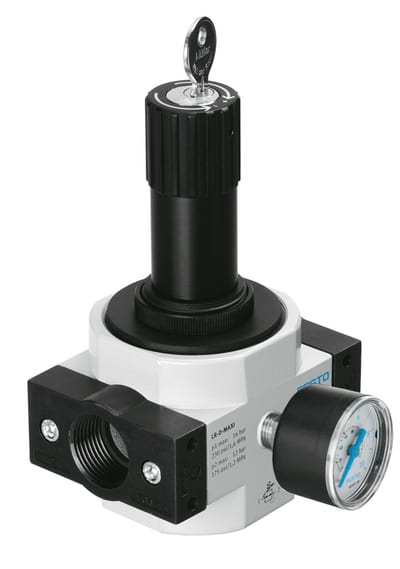

Festo LRS Pressure regulator Midi - 3/8", 0,5 - 12bar, LRS-3/8-D-MIDI
194634
Festo

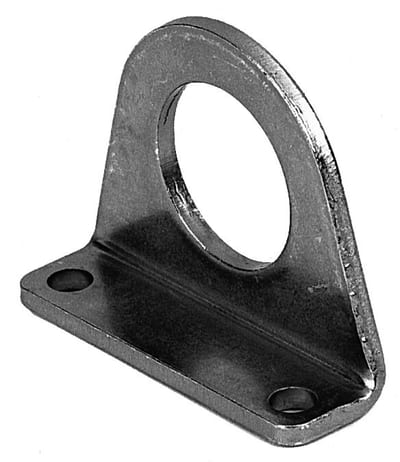

Festo CRHBN Foot bracket - 20/25, CRHBN-20/25X1
161867
Festo

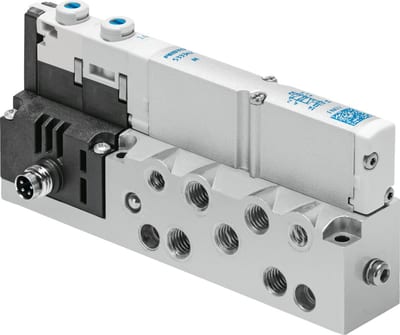

Festo VMPA14 Solenoid Valve - G1/8", El, VMPA14-M1H-J-G1/8-PI
