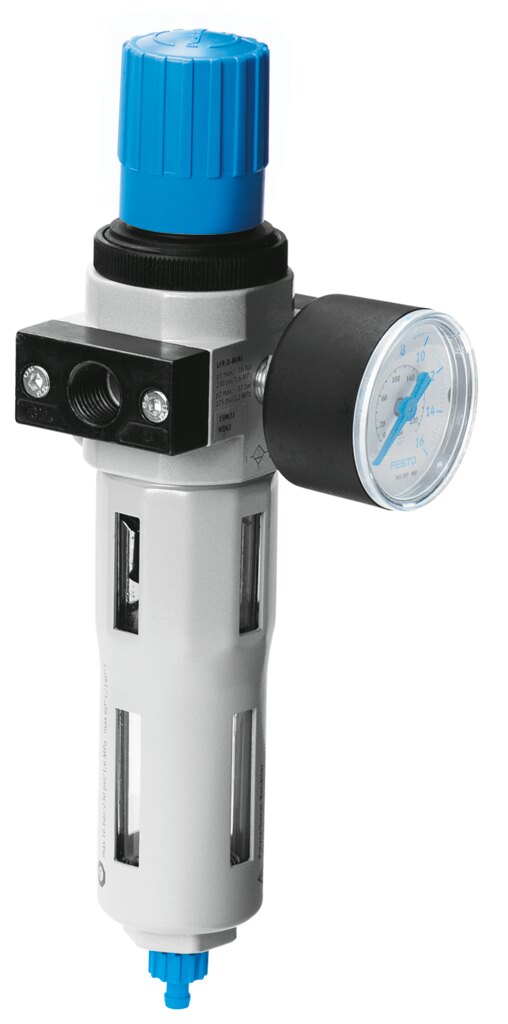

Festo LFR Filter controller Maxi automatic - 3/4", 0,5 - 12bar, 5MY, LFR-3/4-D-5M-MAXI-A

Festo LFR Filter controller Maxi automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/4", press area 0.5 to 12 bar, filter element 5 My, supplier type designation LFR-3/4-D-5M-MAXI-A. Supplied under manufacturer part number 162732, EAN 4052568132446, HS code 8481.10, country of origin Hungary.

Size

Maxi Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Grade of filtration: 5 µm Condensate drain: Fully automatic Design: Filter controller with pressure gauge Max. condensate volume: 80 ml Bowl guard: Metal bowl guard Symbol: 00991587 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) Pressure regulation range: 0.5 ... 12 bar Max. pressure hysteresis: 0.4 bar Standard nominal flow rate (standardised to DIN 1343): 7600 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:9:-]; Inert gas Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformity: VDMA24364-B1/B2-L Storage temperature: -10 ... 60 °C Air purity class at output: Compressed air to ISO 8573-1:2010 [6:8:4]; Inert gas Media temperature: 5 ... 60 °C Ambient temperature: 5 ... 60 °C Product weight: 1370 g Type of mounting: With accessories Pneumatic connection, port 1: G3/4 Pneumatic connection, port 2: G3/4 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568132446 Festo type code: LFR-3/4-D-5M-MAXI-A Festo order number: 162732 Product type: Air treatment Product group: Pneumatics Thread: 3/4" Press Area: 0.5 to 12 bar Filter element: 5 My Carbon footprint (EPD): 21.5857 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 162732

HS Code

8481.10

• EAN 4052568132446
• MPN 162732
