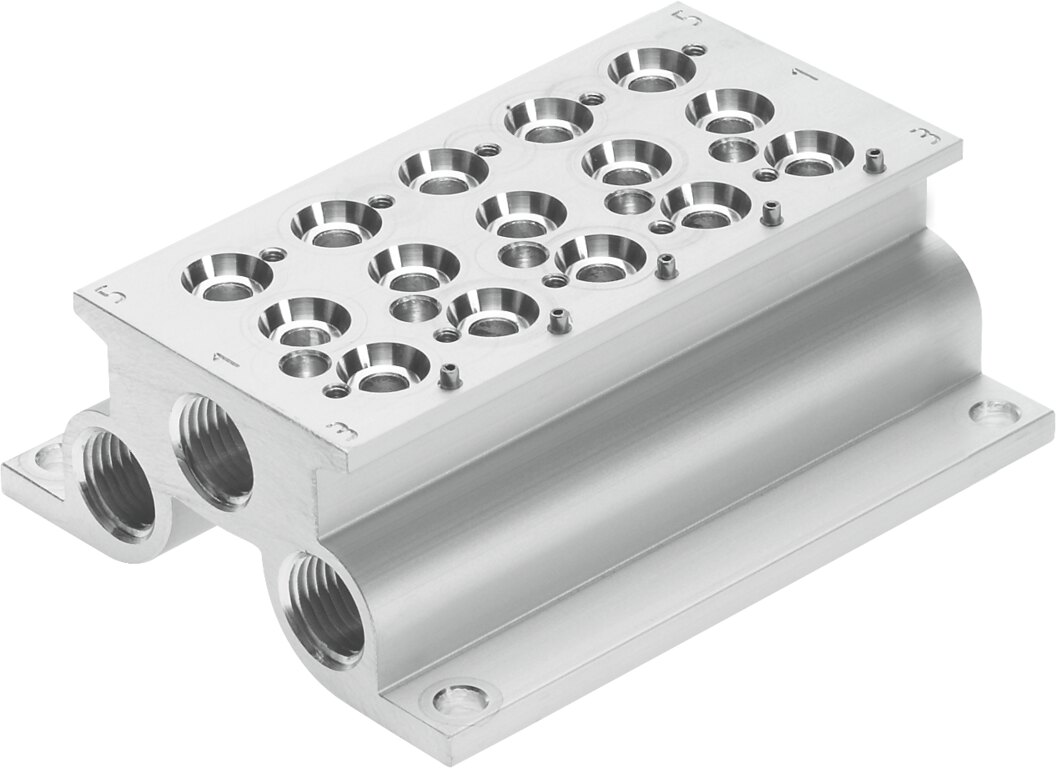

Festo CPE18 Connection block - 3/8", CPE18-PRS-3/8-5
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE18 Connection block. Pneumatic ISO accessories (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 3/8", supplier type designation CPE18-PRS-3/8-5. Supplied under manufacturer part number 543842, EAN 4052568091712, HS code 8481.90, country of origin Germany.
Technical Specifications
- Grid dimension
- 26 mm
- Mounting position
- Any
- Max. number of valve positions
- 5
- Max. number of pressure zones
- 2
- Burst pressure
- 5 MPa (50 bar) (725 psi)
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 740 g
- Type of mounting in-line valve manifold
- With through-hole
- Mounting method for valve
- With female thread
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material manifold rail
- Wrought aluminium alloy
- EAN / GTIN
- 4052568091712
- Festo type code
- CPE18-PRS-3/8-5
- Festo order number
- 543842
- Product type
- Pneumatic ISO accessories
- Product group
- Pneumatics
- Thread
- 3/8"
- Carbon footprint (EPD)
- 24.6422 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 543842
Standards & Compliance
- HS Code
- 8481.90
Cross References
- EAN 4052568091712
- MPN 543842
Product Documentation
