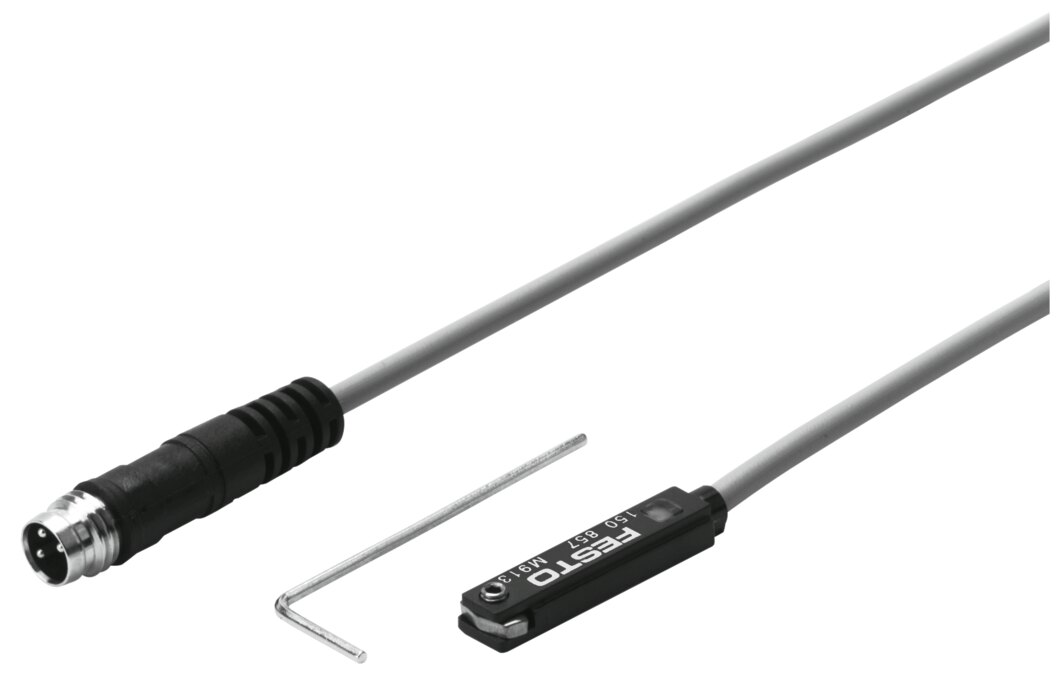

Festo SME Cylinder sensor - 0.3M, SME-8-S-LED-24
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SME Cylinder sensor. Pneumatic reed contacts/cables/brackets (Technique / Pneumatics / Pneumatic Cylinders). Principal data: cable length 0.3 m, supplier type designation SME-8-S-LED-24. Supplied under manufacturer part number 150857, EAN 4052568010416, HS code 8536.50, country of origin Bulgaria.
Technical Specifications
- Design
- For T-slot
- Conforms to standard
- EN 60947-5-2
- Symbol
- 00991148
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive; In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC; To UK RoHS instructions
- Instructions on use
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -40 ... 70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Reproducibility of switching value
- +/-0.1 mm
- Switch-on time
- 0.5 ms
- Switch-off time
- 0.03 ms
- Max. switching frequency
- 800 Hz
- Max. output current
- 500 mA
- Max. switching capacity AC
- 10 VA
- Max. switching capacity DC
- 10 W
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Short circuit current rating
- No
- Overload protection
- Not provided
- Operational voltage range AC
- 12 ... 30 V
- Operational voltage range DC
- 12 ... 30 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connector system
- M8x1, A-coded, to EN 61076-2-104
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, type of mounting
- Snap-locking; Screw-type lock; Not rotatable
- Electrical connection 1, compatible type of mounting
- Compatible with latching lock; Compatible with rotatable screw-type lock
- Electrical connection 1, connection pattern
- 00991155
- Connection outlet orientation
- In-line
- Material electrical contact
- Brass; nickel-plated
- Material connector housing
- TPE-U(PU)
- Cable length
- 0.3 m
- Cable sheath colour
- Grey
- Material cable sheath
- TPE-U(PUR)
- Type of mounting
- Clamped in T-slot; Inserted into the slot lengthwise
- Tightening torque
- 0.2 Nm
- Mounting position
- Any
- Product weight
- 8 g
- Housing colour
- Black
- Material housing
- Epoxy resin; Makrolon®; PET; High-alloy stainless steel
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 70 °C
- Degree of protection
- IP67
- Insulation voltage
- 50 V
- Immunity to surge
- 0.8 kV
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Pollution degree
- 3
- EAN / GTIN
- 4052568010416
- Festo type code
- SME-8-S-LED-24
- Festo order number
- 150857
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.0938 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
- Manufacturer part number
- 150857
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568010416
- MPN 150857
