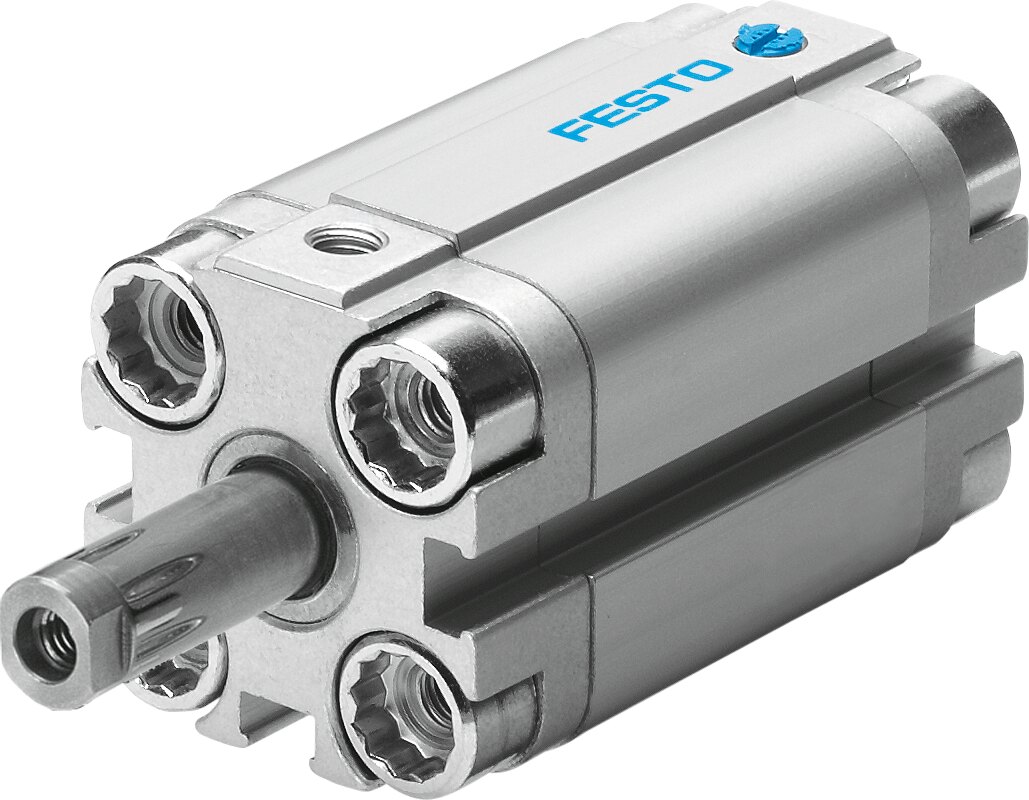

Festo AEVUZ Compact cylinder - 12mm, M5, 10mm, AEVUZ-12-10-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVUZ Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 12 mm, port size M5, stroke rate 10 mm, supplier type designation AEVUZ-12-10-P-A. Supplied under manufacturer part number 157207, EAN 4052568124236, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 12 mm
- Piston rod thread
- M3
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting; Pulling
- Piston-rod end
- Female thread
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991204
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar) (21.75 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.07 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 42 N
- Moving mass for 0 mm stroke
- 8 g
- Additional moving mass per 10 mm stroke
- 2 g
- Basic weight for 0 mm stroke
- 87 g
- Additional weight per 10 mm stroke
- 15 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- M5
- Material collar screws
- High-alloy stainless steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568124236
- Festo type code
- AEVUZ-12-10-P-A
- Festo order number
- 157207
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 1.3176 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 157207
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568124236
- MPN 157207
Product Documentation
More from Festo
Festo
Festo QSML Elbow fitting push-in composite metric nipple - 4mm, 5mm, QSML-M5-4-100
130771
Festo
Festo CPE24 Solenoid Valve - QS-12", El, Spring, CPE24-M1H-3GLS-QS-12
163185
Festo
Festo CPE10 Solenoid Valve - M7", El, Spring, CPE10-M1CH-5L-M7
550223
Festo
Festo NPQH-D Straight fitting push-in brass, nickel-plated nipple - 8mm, 3/8", NPQH-D-G38-Q8-P10
578345
Festo
Festo FRC Service Unit Maxi automatic - 1/2", 0,5 - 12bar, 40MY, FRC-1/2-D-O-MAXI-A
186509
Festo
Festo VUVS-L25 Solenoid Valve 3/2 24V DC - G1/4", El, Spring, VUVS-L25-M32U-MD-G14-F8-1C1
575492
Festo

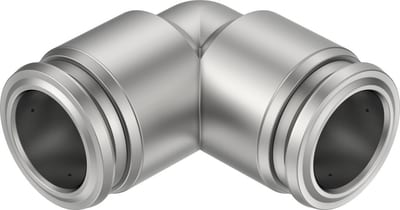

Festo NPQR-L Connector stainless steel - 14mm, 14mm, NPQR-L-Q14-E
8085714
Festo

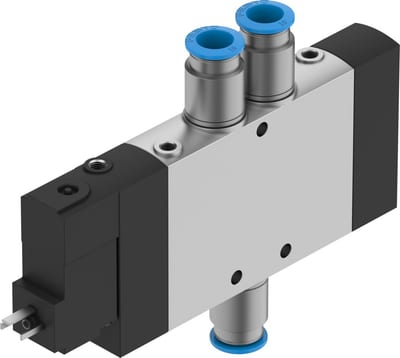

Festo CPE18 Solenoid Valve - QS-10", El, Spring, CPE18-M3H-5L-QS-10
