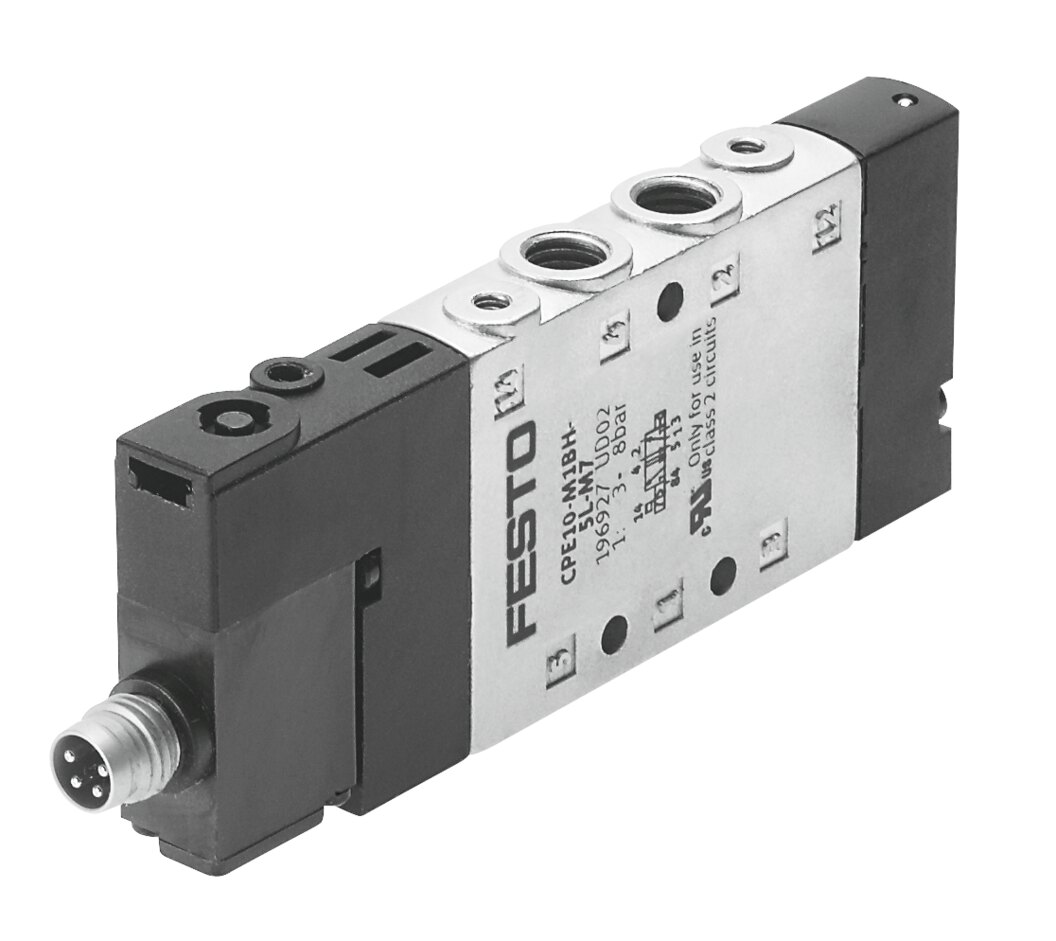

Festo CPE10 Solenoid Valve - M7", El, Spring, CPE10-M1CH-5L-M7
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE10 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread M7", activation El, return Spring, supplier type designation CPE10-M1CH-5L-M7. Supplied under manufacturer part number 550223, EAN 4052568192068, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Construction width
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 350 l/min
- pneumatic working port
- M7
- Operating voltage
- 24 V DC
- Operating pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65; IP67; With plug socket; To IEC 60529
- Nominal size
- 4 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991023
- Valve position code
- Label holder
- lap
- Overlap
- Switching time off
- 20 ms
- Switching time on
- 16 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1200 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 1.28 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque connector
- 0.4 Nm
- Product weight
- 56 g
- Electrical connection
- M8x1
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M3
- Pilot exhaust port 84
- M3
- Pilot air port 12
- M3
- Pilot air port 14
- M3
- Pneumatic connection, port 1
- M7
- Pneumatic connection, port 2
- M7
- Pneumatic connection, port 3
- M7
- Pneumatic connection, port 4
- M7
- Pneumatic connection, port 5
- M7
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568192068
- Festo type code
- CPE10-M1CH-5L-M7
- Festo order number
- 550223
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- M7"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 1.2498 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 550223
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568192068
- MPN 550223
Product Documentation
More from Festo
Festo
Festo NPQH-D Straight fitting push-in brass, nickel-plated nipple - 8mm, 3/8", NPQH-D-G38-Q8-P10
578345
Festo
Festo FRC Service Unit Maxi automatic - 1/2", 0,5 - 12bar, 40MY, FRC-1/2-D-O-MAXI-A
186509
Festo
Festo VUVS-L25 Solenoid Valve 3/2 24V DC - G1/4", El, Spring, VUVS-L25-M32U-MD-G14-F8-1C1
575492
Festo
Festo NPQR-L Connector stainless steel - 14mm, 14mm, NPQR-L-Q14-E
8085714
Festo
Festo CPE18 Solenoid Valve - QS-10", El, Spring, CPE18-M3H-5L-QS-10
163802
Festo
Festo QSMS Bulkhead connection push-in aluminium - 4mm, 4mm, QSMS-4
153376
Festo

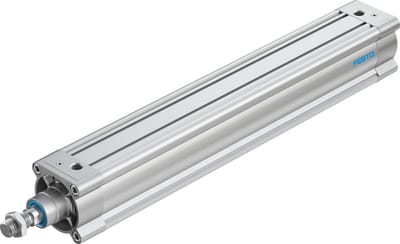

Festo DSBC Standard cylinder double-acting aluminium - 500mm, 80mm, DSBC-80-500-PPVA-N3
1383344
Festo

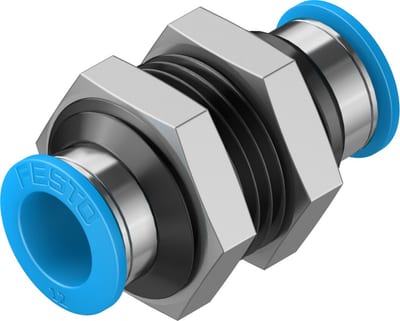

Festo QSS Bulkhead connection push-in aluminium - 12mm, 12mm, QSS-12
