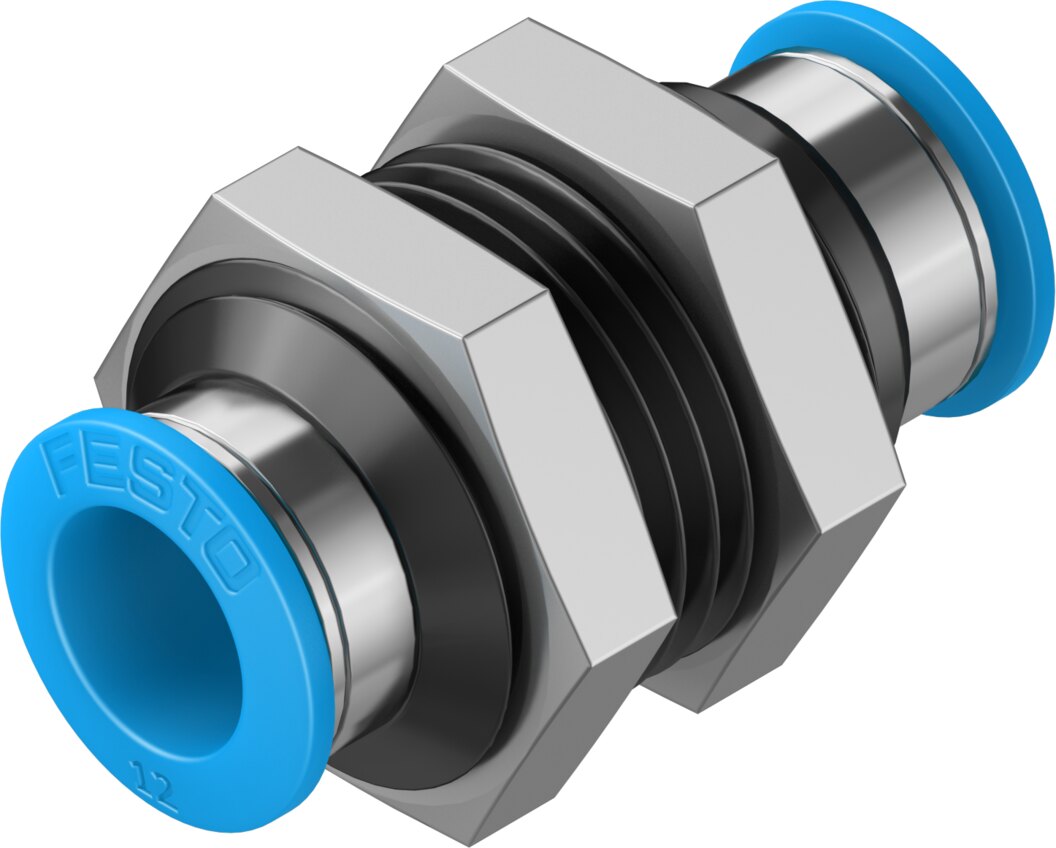

Festo QSS Bulkhead connection push-in aluminium - 12mm, 12mm, QSS-12
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSS Bulkhead connection push-in aluminium. Collectors C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 12 mm, outer hose diameter 2 12 mm, supplier type designation QSS-12. Supplied under manufacturer part number 153161, EAN 4052568032494, HS code 7609.00, country of origin Japan.
Technical Specifications
- Size
- Standard
- Nominal size
- 11 mm
- Tubing insertion depth
- 23.3 mm
- Mounting position
- Any
- Design
- Bulkhead (Push-pull principle)
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at max. 50°C
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 52 g
- Type of mounting
- External hex SW27
- Pneumatic connection, port 1
- For tubing outer diameter of 12 mm
- Pneumatic connection, port 2
- For tubing outer diameter of 12 mm
- Colour of release ring
- Blue
- Material housing
- Anodised aluminium
- Material release ring
- POM
- Material nut
- Nickel-plated brass
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568032494
- Festo type code
- QSS-12
- Festo order number
- 153161
- Product type
- Collectors C
- Product group
- Pneumatics
- Outer hose diameter
- 12 mm
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.3081 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 76090000
- HS code
- 7609.00
- Manufacturer part number
- 153161
Standards & Compliance
- HS Code
- 7609.00
Cross References
- EAN 4052568032494
- MPN 153161
More from Festo
Festo
Festo DSBC Standard cylinder double-acting aluminium - 150mm, 32mm, DSBC-32-150-PPVA-N3
2123073
Festo
Festo ADN Compact cylinder - 100mm, G1/8, 80mm, ADN-100-80-I-PPS-A
577198
Festo

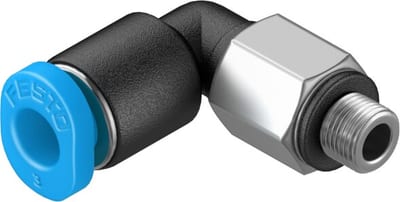

Festo QSML Elbow fitting push-in composite metric nipple - 3mm, 3mm, QSML-M3-3
