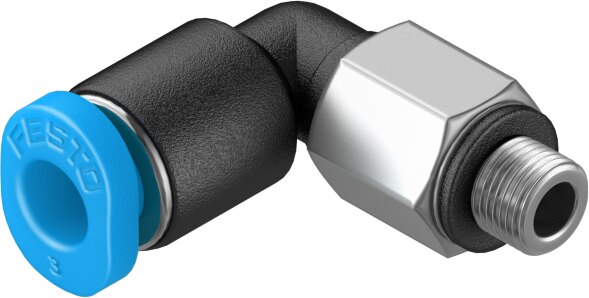

Festo QSML Elbow fitting push-in composite metric nipple - 3mm, 3mm, QSML-M3-3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSML Elbow fitting push-in composite metric nipple. Insertions C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 3 mm, thread diameter 3 mm, supplier type designation QSML-M3-3. Supplied under manufacturer part number 153330, EAN 4052568033934, HS code 7412.20, country of origin Japan.
Technical Specifications
- Size
- Mini
- Nominal size
- 0.8 mm
- Tubing insertion depth
- 9.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape (Push-pull principle)
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 80 °C
- Nominal torque
- 0.48 Nm
- Tolerance for nominal tightening torque
- ±55%
- Product weight
- 1.4 g
- Type of mounting
- External hex A/F5.5
- Pneumatic connection, port 1
- Male thread M3
- Pneumatic connection, port 2
- For tubing outer diameter of 3 mm
- Colour of release ring
- Blue
- Material screwed plug
- Nickel-plated brass
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568033934
- Festo type code
- QSML-M3-3
- Festo order number
- 153330
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 3 mm
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0080 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 153330
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568033934
- MPN 153330
