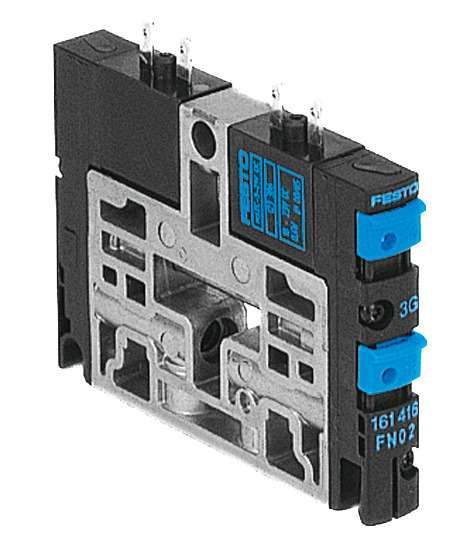

Festo CPV10 Solenoid Valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPV10 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Supplied under manufacturer part number 559644, EAN 4052568206222, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 400 l/min
- pneumatic working port
- M7
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Degree of protection
- IP65
- Nominal size
- 4 mm
- Exhaust-air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External; Internal
- Flow direction
- Non-reversible
- Symbol
- 00991683
- lap
- Overlap
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- b value
- 0.4
- C value
- 1.6 l/sbar
- Switching time reversal
- 10 ms
- Duty cycle
- 100% in conjunction with holding current reduction
- Electrical power consumption
- 0.46 W
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse with 1 signal
- 700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 70 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- Common line
- Pilot exhaust port 82/84
- Common line
- Pneumatic connection, port 1
- Common line with pressure separation
- Pneumatic connection, port 11
- Common line with pressure separation
- Pneumatic connection, port 2
- M7
- Pneumatic connection 3/5 combined
- Common line
- Pneumatic connection, port 4
- M7
- Material seals
- HNBR; NBR
- Material housing
- Die-cast aluminium; Brass; POM; PPS; Steel
- EAN / GTIN
- 4052568206222
- Festo type code
- CPV10-M1H-5JS-K-M7
- Festo order number
- 559644
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 1.6267 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 559644
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568206222
- MPN 559644
