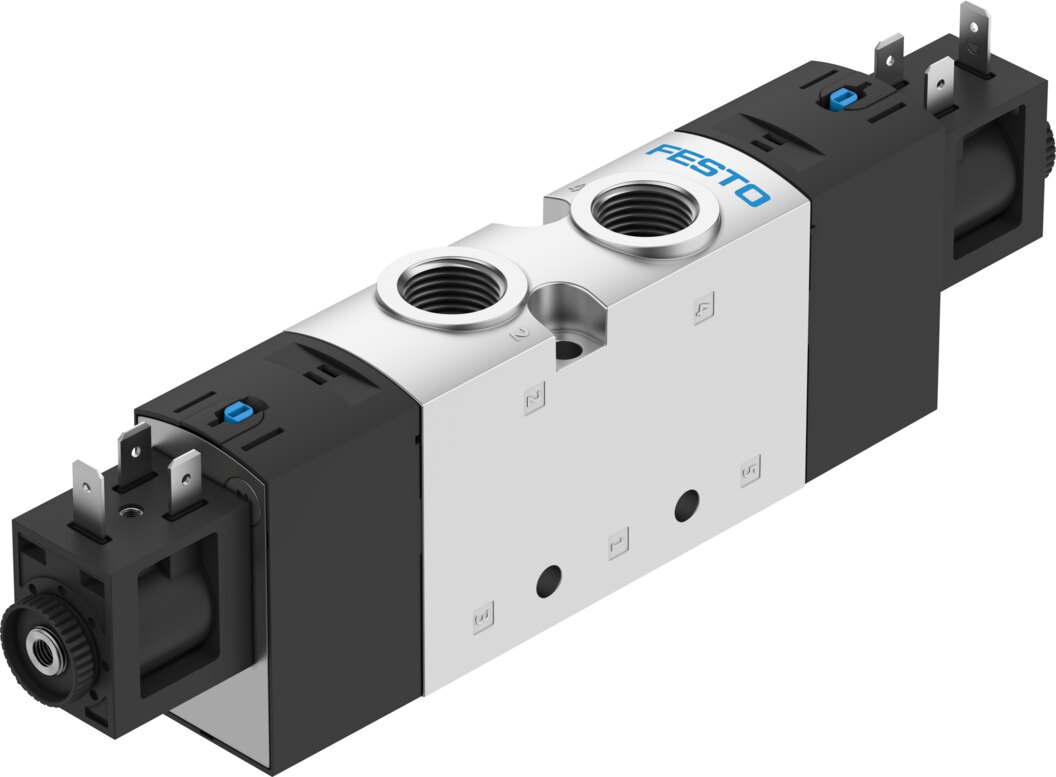

Festo VUVS-L30 Solenoid Valve 5/3 24V DC - G3/8", El, Spring, VUVS-L30-P53E-MZD-G38-F8-1B2
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L30 Solenoid Valve 5/3 24V DC. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G3/8", activation El, return Spring, supplier type designation VUVS-L30-P53E-MZD-G38-F8-1B2. Supplied under manufacturer part number 575635, EAN 4052568261726, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/3 exhausted
- Type of actuation
- Electrical
- Valve size
- 31 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- pneumatic working port
- G3/8
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65; With plug socket; To IEC 60529
- Nominal size
- 8.1 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991032
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- b value
- 0.4
- C value
- 7.1 l/sbar
- Switching time off
- 74 ms
- Switching time on
- 20 ms
- Switching time reversal
- 36 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse with 1 signal
- 3600 µs
- Characteristic coil data
- 24 V DC: 3.3 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 562 g
- Electrical connection
- Type B; To industry standard (11 mm)
- Type of mounting
- On manifold rail; With through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- HNBR; NBR
- Material housing
- Die-cast aluminium; painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Nickel-plated steel
- EAN / GTIN
- 4052568261726
- Festo type code
- VUVS-L30-P53E-MZD-G38-F8-1B2
- Festo order number
- 575635
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Spring
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 13.5878 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 575635
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568261726
- MPN 575635
Product Documentation
More from Festo
Festo

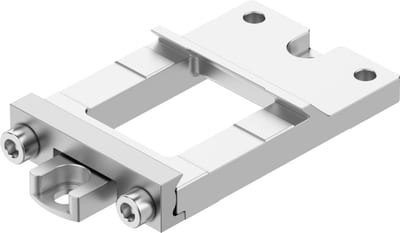

Festo MUC Profile fastening - 40, MUC-40
531755
Festo
Festo NPQR-L Straight fitting push-in stainless steel nipple - 10mm, 3/8", NPQR-L-G38-Q10
8085686
Festo

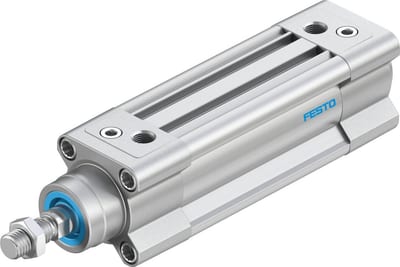

Festo DSBC Standard cylinder double-acting aluminium - 50mm, 32mm, DSBC-32-50-PPVA-N3
1376424
Festo
Festo LRS Pressure regulator Midi - 3/8", 0,5 - 7bar, LRS-3/8-D-7-O-I-MIDI
194641
Festo

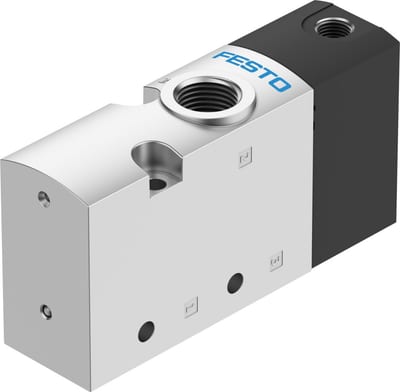

Festo VUWS-L30 Pneumatic valve - G3/8", Air, Spring, VUWS-L30-M32C-A-G38
575576
Festo

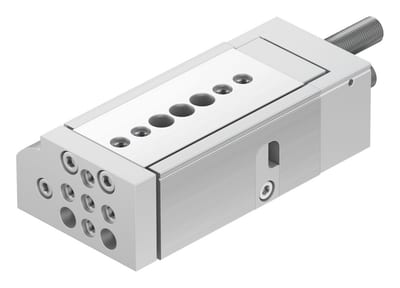

Festo DGSL Mini Slide - M5, DGSL-12-20-PA
543962
Festo

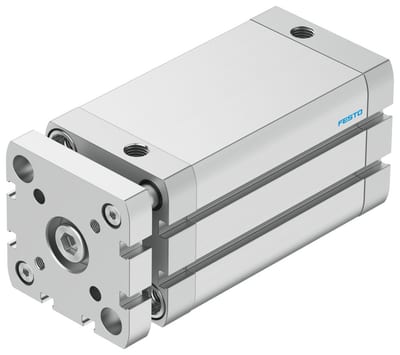

Festo ADNGF Compact cylinder - 50mm, G1/8, 80mm, ADNGF-50-80-PPS-A
574048
Festo

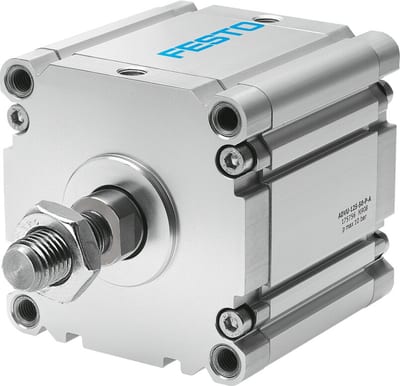

Festo ADVU Compact cylinder - 125mm, G1/4, 60mm, ADVU-125-60-A-P-A
