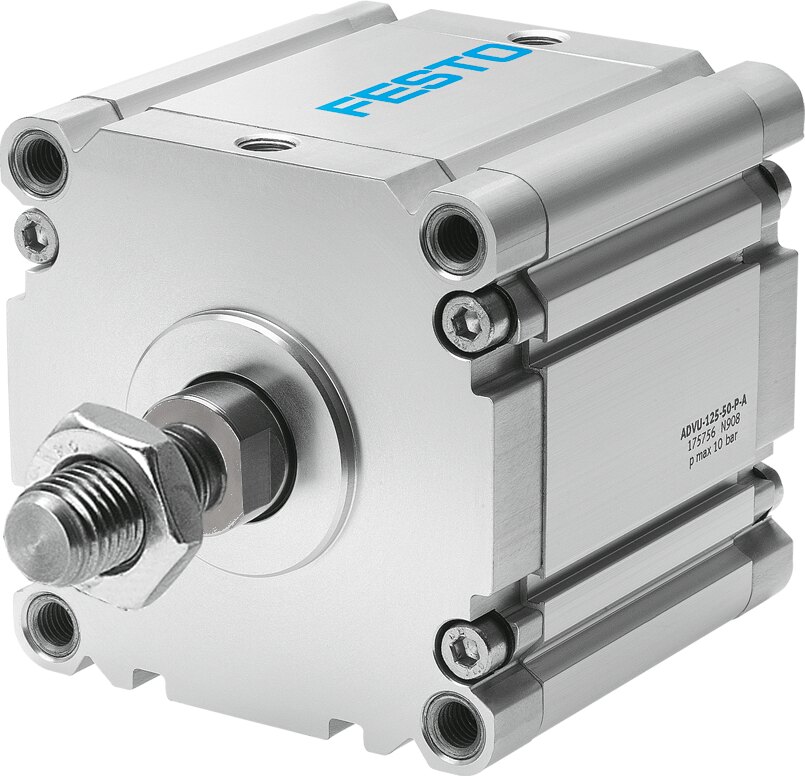

Festo ADVU Compact cylinder - 125mm, G1/4, 60mm, ADVU-125-60-A-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVU Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 125 mm, port size G1/4, stroke rate 60 mm, supplier type designation ADVU-125-60-A-P-A. Supplied under manufacturer part number 175769, EAN 4052568143398, HS code 8412.31, country of origin Hungary.
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.05 ... 1 MPa (0.5 ... 10 bar) (7.25 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 3.3 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 6881 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 7363 N
- Moving mass for 0 mm stroke
- 1317 g
- Additional moving mass per 10 mm stroke
- 63 g
- Basic weight for 0 mm stroke
- 3426 g
- Additional weight per 10 mm stroke
- 168 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- G1/4
- Material collar screws
- Galvanised steel
- Material cover
- Painted die-cast aluminium
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568143398
- Festo type code
- ADVU-125-60-A-P-A
- Festo order number
- 175769
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/4
- Carbon footprint (EPD)
- 51.8074 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 175769
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568143398
- MPN 175769
Product Documentation
More from Festo
Festo
Festo DZF-50-200-A-P-A Flat cylinder
161301
Festo

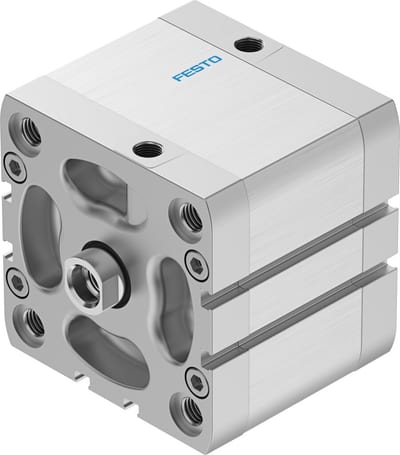

Festo ADN-80-30-I-P-A Compact cylinder
536367
Festo

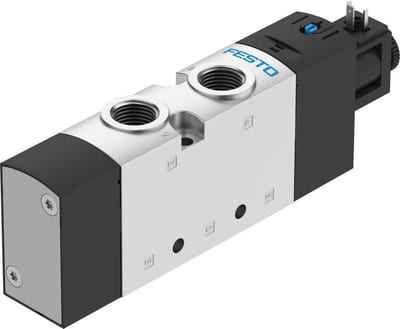

Festo VUVS-L30-M52-AZD-G38-F8-1C1 Solenoid valve
575597
Festo

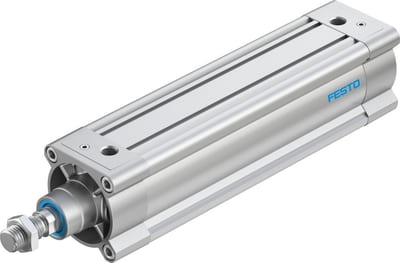

Festo DSBC-80-250-PPVA-N3 ISO cylinder
1383341
Festo
Festo LRS-1-D-7-DI-MAXI Pressure regulator
194680
Festo

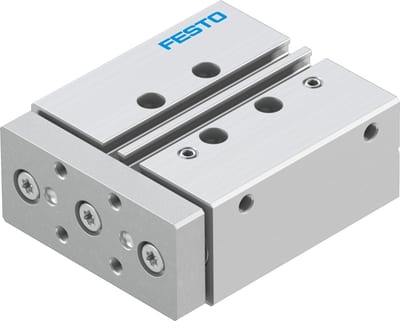

Festo DFM-16-30-P-A-KF Guided drive
