Festo HEL Inflation valve Midi - 3/8", Pneumatic, Spring, HEL, HEL-3/8-D-MIDI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HEL Inflation valve Midi. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/8", activation Pneumatic, return Spring, series HEL. Supplied under manufacturer part number 165079, EAN 4052568137489, HS code 8481.20, country of origin Hungary.
Technical Specifications
- Exhaust-air function
- Can be throttled Type of actuation: Pneumatic Sealing principle: Soft Mounting position: Any Design: Piston gate valve Type of reset: Mechanical spring Type of piloting: Direct Flow direction: Non-reversible Symbol: 00991513 Valve function: 2/2-way, single solenoid, closed Operating pressure: 0.3 ... 1.6 MPa (3 ... 16 bar) b value: 0.39 C value: 16.5 l/sbar Standard nominal flow rate (standardised to DIN 1343): 3200 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformity: VDMA24364-B1/B2-L Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Product weight: 270 g Type of mounting: Inline installation Pneumatic connection, port 1: G3/8 Pneumatic connection, port 2: G3/8 material seals: NBR material housing: Die-cast aluminium EAN / GTIN: 4052568137489 Festo type code: HEL-3/8-D-MIDI Festo order number: 165079 Product type: Air treatment Product group: Pneumatics Thread: 3/8" Activation: pneumatic Return: Spring Series: HEL Carbon footprint (EPD): 4.5856 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 165079
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568137489
- MPN 165079
Product Documentation
More from Festo
Festo

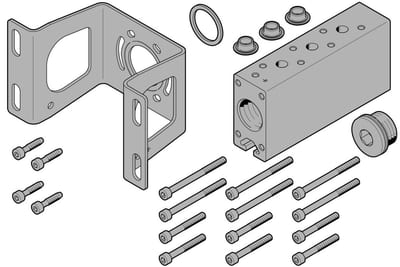

Festo VABM P-Battery Rail - 3/4", VABM-B10-30-G34-3-P53-E
8026357
Festo

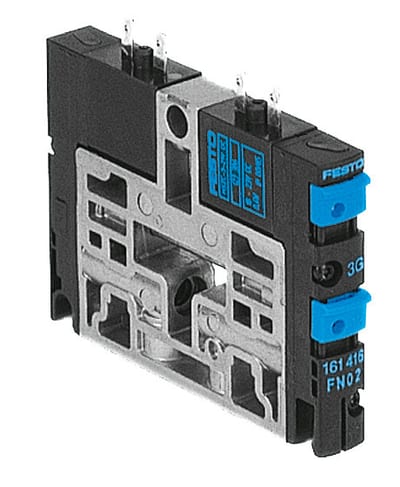

Festo CPV10 Solenoid Valve
559644
Festo

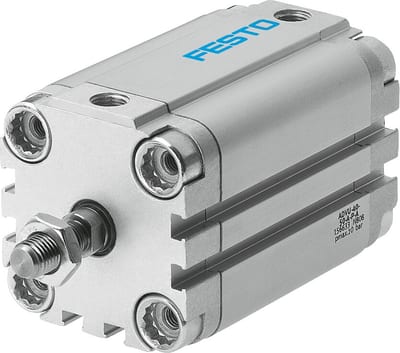

Festo ADVU Compact cylinder - 40mm, G1/8, 40mm, ADVU-40-40-A-P-A
156632
Festo

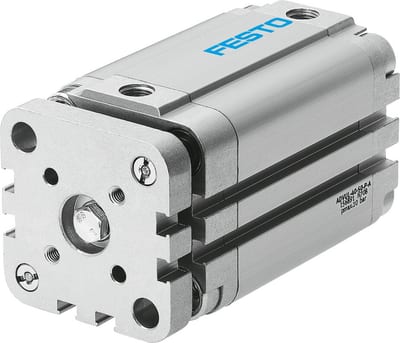

Festo ADVUL Compact cylinder - 50mm, G1/8, 80mm, ADVUL-50-80-P-A
156902
Festo

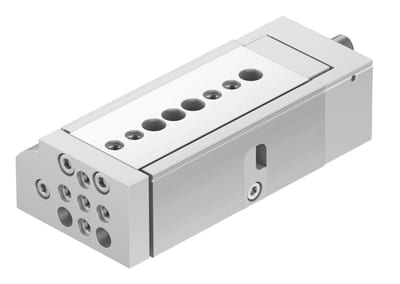

Festo DGSL Mini Slide - M5, DGSL-12-30-EA
570181
Festo

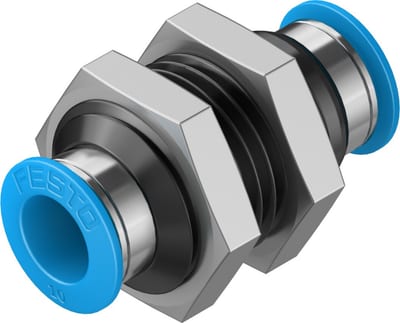

Festo QSS Bulkhead connection push-in aluminium - 10mm, 10mm, QSS-10
153160
Festo

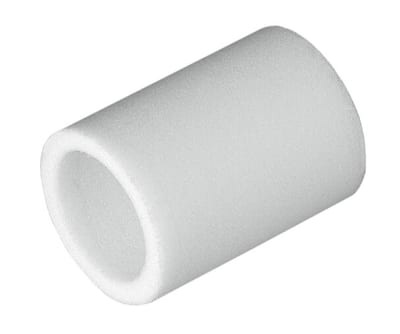

Festo LFP-D Filter Cartridge Mini - D, LFP-D-MINI-40M
363665
Festo
Festo HNC Foot bracket - 32, HNC-32
4052568013875
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 165079?
- 165079 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 165079.
- What is the HS code for 165079?
- The customs tariff (HS) code for 165079 is 8481.20.
- Who manufactures 165079?
- 165079 is a Festo product in the Pneumatics range.
- Is a datasheet available for 165079?
- Yes — the 165079 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 165079?
- The minimum order quantity is 1.
- Is 165079 available?
- Yes — 165079 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
