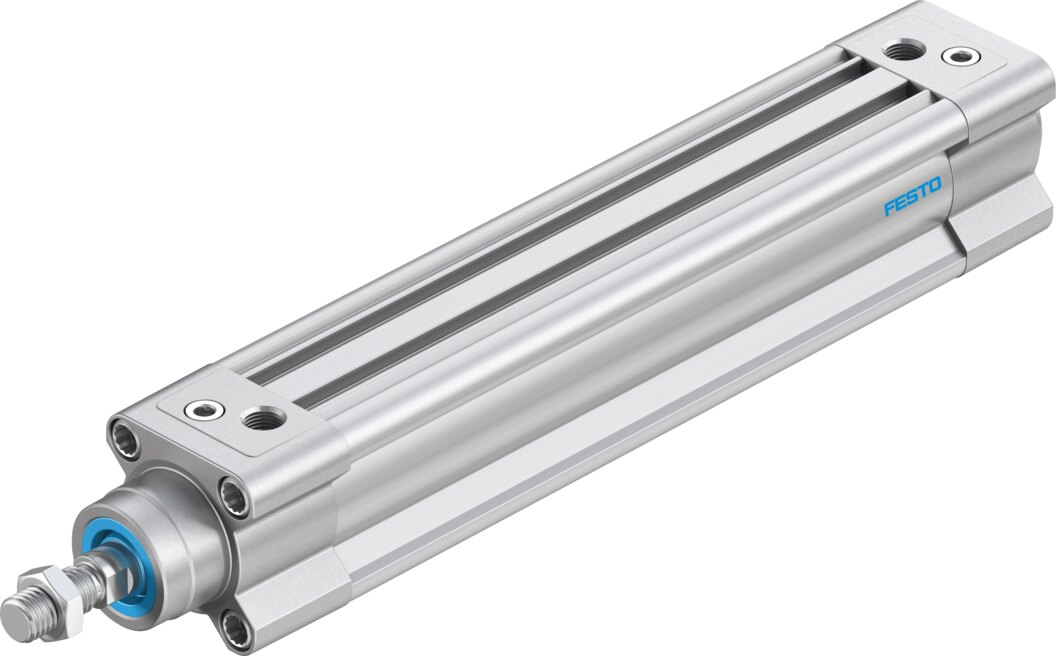

Festo DSBC Standard cylinder double-acting aluminium - 150mm, 32mm, DSBC-32-150-PPVA-N3

Festo DSBC Standard cylinder double-acting aluminium. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: stroke rate 150 mm, diameter 32 mm, supplier type designation DSBC-32-150-PPVA-N3. Supplied under manufacturer part number 2123073, EAN 4052568251710, HS code 8412.31, country of origin Germany.

Stroke

150 mm

Piston diameter

32 mm

Piston rod thread

M10x1.25

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

Any

Conforms to standard

ISO 15552

Piston-rod end

Male thread

Design

Piston; Piston rod; Profile barrel

Position detection

Via proximity switch

Symbol

00991235

Variants

Piston rod at one end

Operating pressure

0.06 ... 1.2 MPa (0.6 ... 12 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.4 J

Cushioning length

17 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

415 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

483 N

Moving mass

245 g

Moving mass for 0 mm stroke

110 g

Additional moving mass per 10 mm stroke

9 g

Product weight

870 g

Basic weight for 0 mm stroke

465 g

Additional weight per 10 mm stroke

27 g

Type of mounting

With female thread; With accessories

Pneumatic connection

G1/8

Material cover

Coated die-cast aluminium

Material piston seal

TPE-U(PU)

Material piston

Wrought aluminium alloy

Material piston rod

High-alloy steel

Material piston rod wiper

TPE-U(PU)

Buffer seal material

TPE-U(PU)

Material of cushioning boss

POM

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

Material nut

Galvanised steel

Material bearing

POM

Material collar screws

Galvanised steel

EAN / GTIN

4052568251710

Festo type code

DSBC-32-150-PPVA-N3

Festo order number

2123073

Product type

Pneumatics VDMA air cylinder

Product group

Pneumatics

Port Size

1/8"

Carbon footprint (EPD)

15.4944 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

Manufacturer part number

2123073

HS Code

8412.31

• EAN 4052568251710
• MPN 2123073
