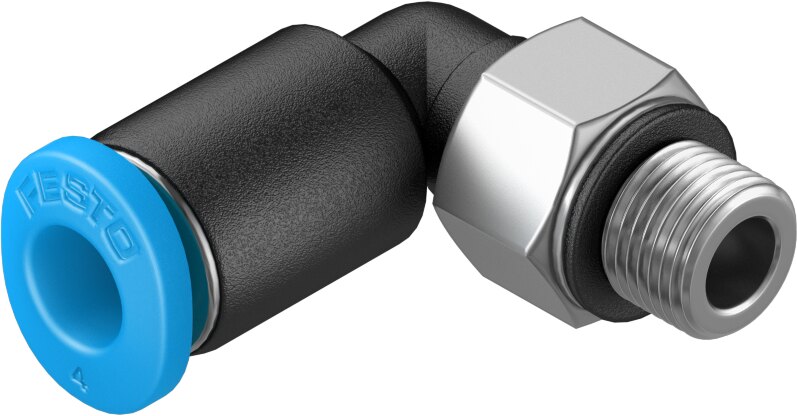

Festo QSML Elbow fitting push-in composite metric nipple - 4mm, 5mm, QSML-M5-4-100
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSML Elbow fitting push-in composite metric nipple. Insertions C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 4 mm, thread diameter 5 mm, supplier type designation QSML-M5-4-100. Supplied under manufacturer part number 130771, EAN 4052568024925, HS code 7412.20, country of origin Japan.
Technical Specifications
- Size
- Mini
- Nominal size
- 1.7 mm
- Tubing insertion depth
- 11.6 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape (Push-pull principle)
- Size of pack
- 100
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 80 °C
- Nominal torque
- 1.2 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 3.4 g
- Type of mounting
- External hexagon, size 8 mm
- Pneumatic connection, port 1
- Male thread M5
- Pneumatic connection, port 2
- For tubing outside diameter of 4 mm
- Colour of release ring
- Blue
- Material screwed plug
- Nickel-plated brass
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568024925
- Festo type code
- QSML-M5-4-100
- Festo order number
- 130771
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 4 mm
- Thread diameter
- 5 mm
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0241 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 130771
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568024925
- MPN 130771
Product Documentation
More from Festo
Festo
Festo CPE24 Solenoid Valve - QS-12", El, Spring, CPE24-M1H-3GLS-QS-12
163185
Festo
Festo CPE10 Solenoid Valve - M7", El, Spring, CPE10-M1CH-5L-M7
550223
Festo
Festo NPQH-D Straight fitting push-in brass, nickel-plated nipple - 8mm, 3/8", NPQH-D-G38-Q8-P10
578345
Festo
Festo FRC Service Unit Maxi automatic - 1/2", 0,5 - 12bar, 40MY, FRC-1/2-D-O-MAXI-A
186509
Festo
Festo VUVS-L25 Solenoid Valve 3/2 24V DC - G1/4", El, Spring, VUVS-L25-M32U-MD-G14-F8-1C1
575492
Festo
Festo NPQR-L Connector stainless steel - 14mm, 14mm, NPQR-L-Q14-E
8085714
Festo
Festo CPE18 Solenoid Valve - QS-10", El, Spring, CPE18-M3H-5L-QS-10
163802
Festo

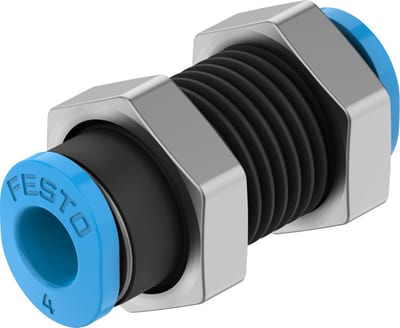

Festo QSMS Bulkhead connection push-in aluminium - 4mm, 4mm, QSMS-4
