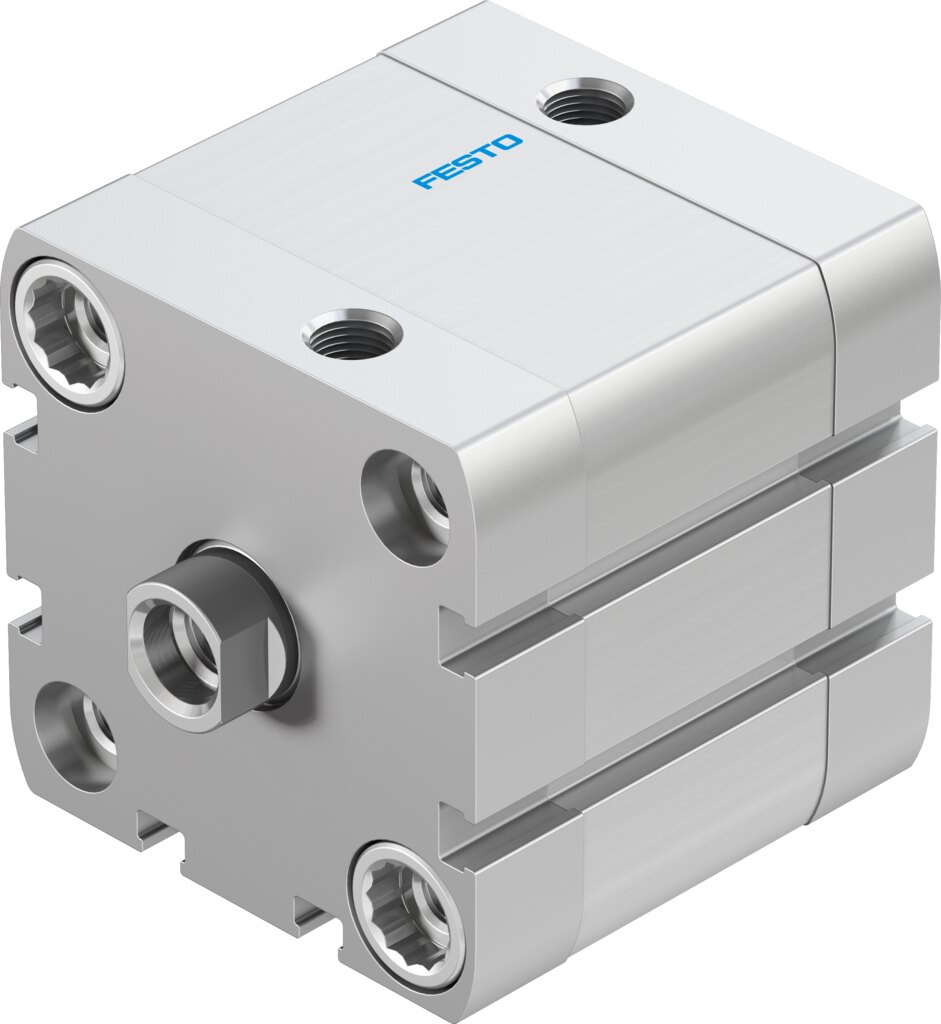

Festo ADN Compact cylinder - 50mm, G1/8, 20mm, ADN-50-20-I-PPS-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 50 mm, port size G1/8, stroke rate 20 mm, supplier type designation ADN-50-20-I-PPS-A. Supplied under manufacturer part number 572684, EAN 4052568219055, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M10
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 2.8 J
- Cushioning length
- 6 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 1057 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1178 N
- Moving mass
- 170 g
- Product weight
- 608 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568219055
- Festo type code
- ADN-50-20-I-PPS-A
- Festo order number
- 572684
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 12.0618 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 572684
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568219055
- MPN 572684
Product Documentation
More from Festo
Festo

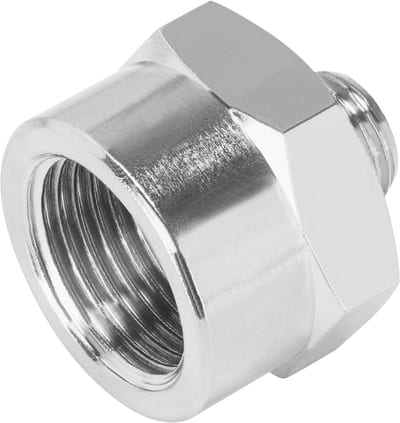

Festo NPFC-R Reducer nipple brass, nickel-plated BSPP - 3/8", 1/8", NPFC-R-G38-G18-FM
8030316
Festo

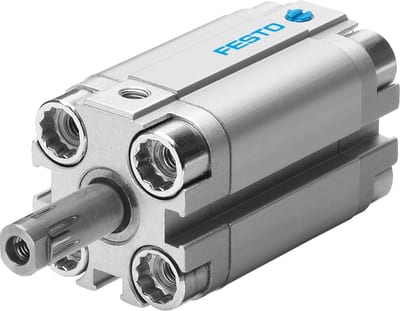

Festo AEVUZ Compact cylinder - 12mm, M5, 10mm, AEVUZ-12-10-P-A
157207
Festo

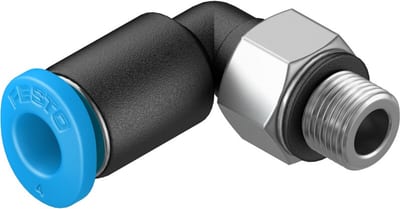

Festo QSML Elbow fitting push-in composite metric nipple - 4mm, 5mm, QSML-M5-4-100
130771
Festo

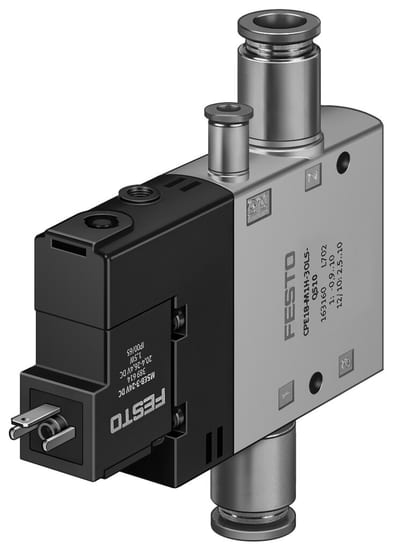

Festo CPE24 Solenoid Valve - QS-12", El, Spring, CPE24-M1H-3GLS-QS-12
163185
Festo

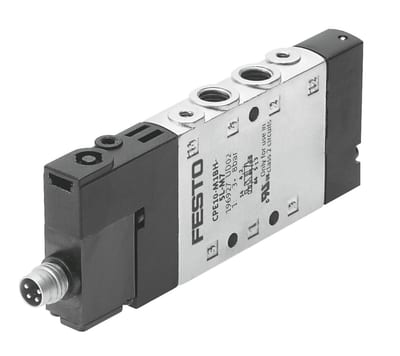

Festo CPE10 Solenoid Valve - M7", El, Spring, CPE10-M1CH-5L-M7
550223
Festo

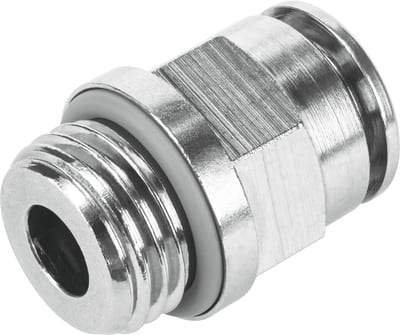

Festo NPQH-D Straight fitting push-in brass, nickel-plated nipple - 8mm, 3/8", NPQH-D-G38-Q8-P10
578345
Festo

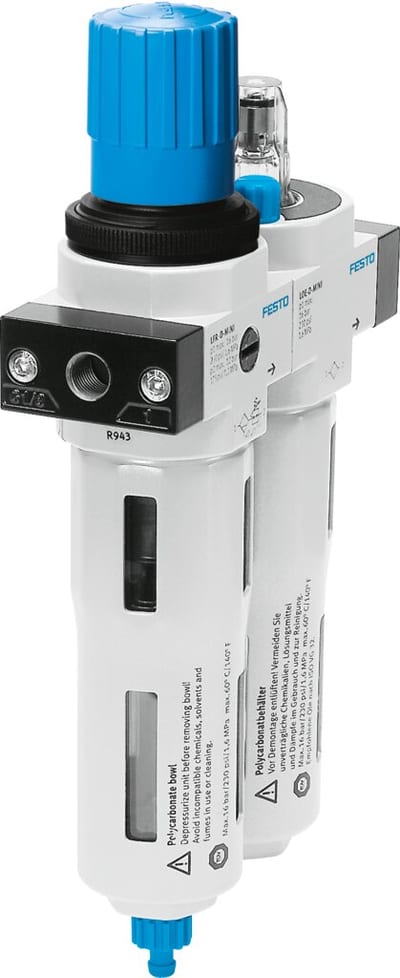

Festo FRC Service Unit Maxi automatic - 1/2", 0,5 - 12bar, 40MY, FRC-1/2-D-O-MAXI-A
186509
Festo

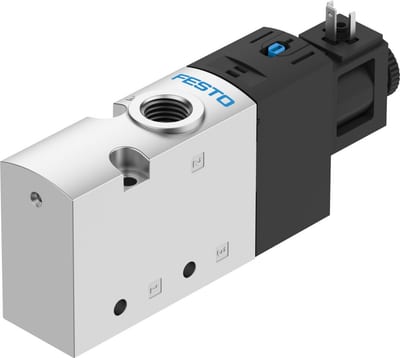

Festo VUVS-L25 Solenoid Valve 3/2 24V DC - G1/4", El, Spring, VUVS-L25-M32U-MD-G14-F8-1C1
