Festo PUN-H Compressed Air Hose polyurethane black - 10mm, 7mm, 25M, PUN-H-10X1,5-SW-25
Pricing
Request a quote
We reply within 24 hours
Product Description

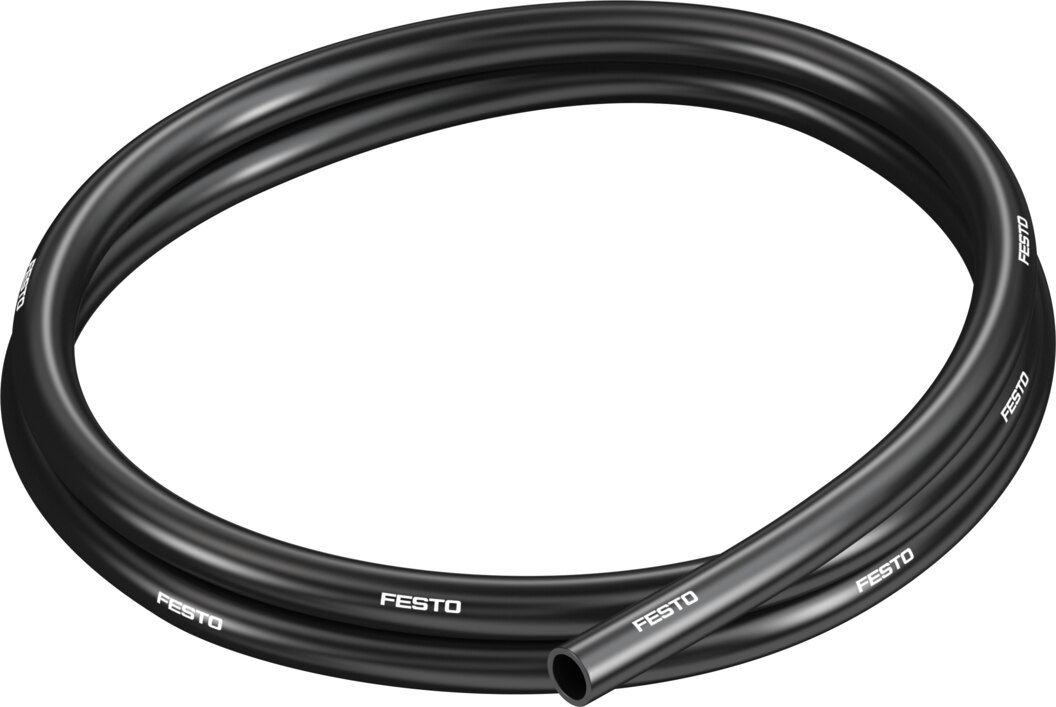

Festo PUN-H Compressed Air Hose polyurethane black. Pneumatic hoses (Technique / Pneumatics). Principal data: outer diameter 10 mm, inner diameter 7 mm, roll size 25 m, supplier type designation PUN-H-10X1.5-SW-25. Supplied under manufacturer part number 8204443, EAN 4052568650940, HS code 3917.32, country of origin Czechia.
Technical Specifications
- Outside diameter
- 10 mm
- Flow-relevant bending radius
- 52 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 28 mm
- Instructions on use
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar) (-13.775 ... 145 psi)
- Note on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
- Approval
- German Technical Control Board (TÜV)
- Certificate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Fire test material
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Element installed statically, no meaningful evaluation possible according to ISO 14644-1
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- -35 ... 60 °C
- Product weight according to length
- 0.0465 kg/m
- Pneumatic connection
- For push-in connector O.D. 10 mm
- Colour
- Black
- Shore hardness
- D 52 +/-3
- Material tubing
- TPE-U(PU)
- EAN / GTIN
- 4052568650940
- Festo type code
- PUN-H-10X1,5-SW-25
- Festo order number
- 8204443
- Product type
- Pneumatic hoses
- Product group
- Pneumatics
- Roll size
- 25 m
- Sales unit
- Roll
- Carbon footprint (EPD)
- 0.3427 kg CO2e per M
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 39173200
- HS code
- 3917.32
- Manufacturer part number
- 8204443
