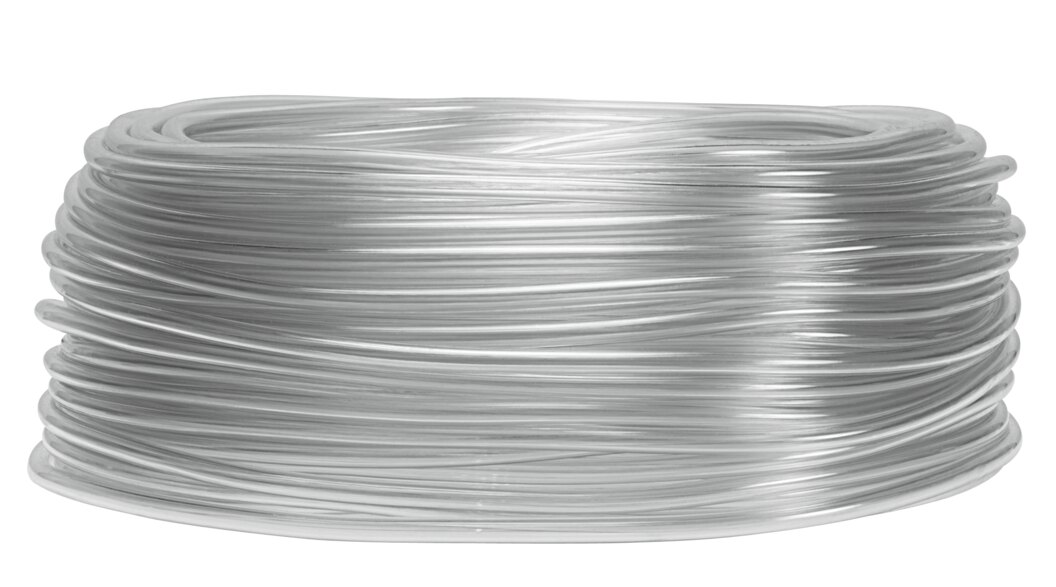

Festo PUN-H Compressed Air Hose polyurethane natural - 10mm, 7mm, 300M, PUN-H-10X1,5-NT-300
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo PUN-H Compressed Air Hose polyurethane natural. Pneumatic hoses (Technique / Pneumatics). Principal data: outer diameter 10 mm, inner diameter 7 mm, roll size 300 m, supplier type designation PUN-H-10X1.5-NT-300. Supplied under manufacturer part number 558267, EAN 4052568054144, HS code 3917.32, country of origin Czechia.
Technical Specifications
- Outside diameter
- 10 mm
- Flow-relevant bending radius
- 52 mm
- Inside diameter
- 7 mm
- Min. bending radius
- 28 mm
- Instructions on use
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar) (-13.775 ... 145 psi)
- Note on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
- Approval
- German Technical Control Board (TÜV)
- Certificate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Fire test material
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Element installed statically, no meaningful evaluation possible according to ISO 14644-1
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- -35 ... 60 °C
- Product weight according to length
- 0.0465 kg/m
- Pneumatic connection
- For push-in connector O.D. 10 mm
- Colour
- Natural
- Shore hardness
- D 52 +/-3
- Material tubing
- TPE-U(PU)
- EAN / GTIN
- 4052568054144
- Festo type code
- PUN-H-10X1,5-NT-300
- Festo order number
- 558267
- Product type
- Pneumatic hoses
- Product group
- Pneumatics
- Roll size
- 300 m
- Temperature max
- 60 °C
- Pressure max
- 10 bar
- Temperature min
- -35 °C
- Sales unit
- Roll
- Carbon footprint (EPD)
- 0.3988 kg CO2e per M
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 39173200
- HS code
- 3917.32
- Manufacturer part number
- 558267
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4052568054144
- MPN 558267
Product Documentation
More from Festo
Festo
Festo AEVU Compact cylinder - 16mm, M5, 20mm, AEVU-16-20-A-P-A
156984
Festo
Festo VUVG-L18 Solenoid Valve tryksat midterstilling 5/3 - G1/4", El, Mechanical spring, VUVG-L18-P53U-G14-P1
8033558
Festo
Festo KD3 Junction Box - KD3-1/8-A
4052568000097
Festo
Festo NPFC-D Double Nipple brass, nickel-plated BSPP - 3/8", 1/2", NPFC-D-G38-G12-M
4052568063788
Festo
Festo VUWS-L25 Pneumatic valve - G1/4", Air, Spring, VUWS-L25-M32C-E-G14
575484
Festo
Festo FRC Service Unit Midi automatic - 1/4", 0,5 - 12bar, 40MY, FRC-1/4-D-MIDI-A
186500
Festo
Festo AEVC Short stroke cylinder - 4mm, M3, 2.5mm, AEVC-4-2,5-P
188050
Festo
Festo ADVUL Compact cylinder double-acting - 20mm, M5, 10mm, ADVUL-20-10-P-A
156859
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 558267?
- 558267 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 558267.
- What is the HS code for 558267?
- The customs tariff (HS) code for 558267 is 3917.32.
- Who manufactures 558267?
- 558267 is a Festo product in the Pneumatics range.
- Is a datasheet available for 558267?
- Yes — the 558267 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 558267?
- The minimum order quantity is 1.
- Is 558267 available?
- Yes — 558267 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
