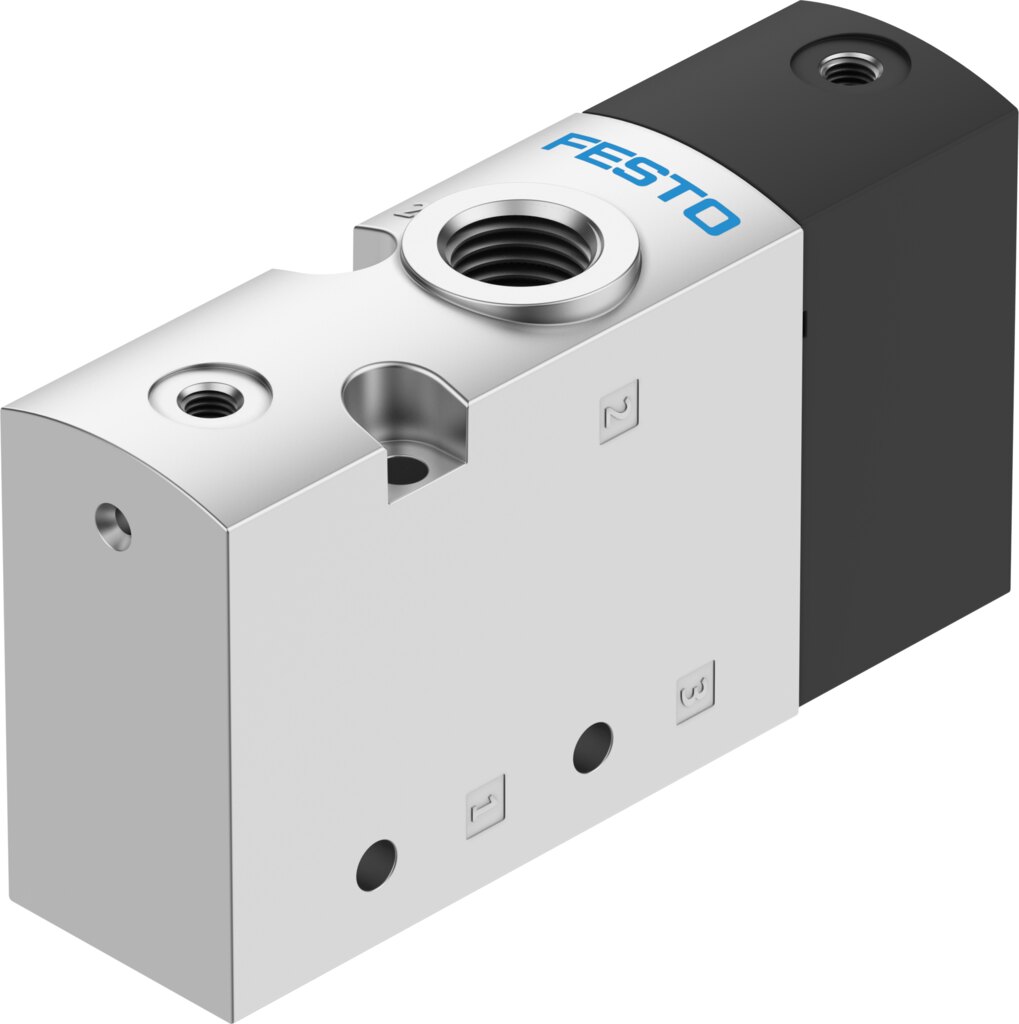

Festo VUWS-L25 Pneumatic valve - G1/4", Air, Spring, VUWS-L25-M32C-E-G14
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUWS-L25 Pneumatic valve. Pneumatic Valves Air-Controlled (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/4", activation Air, return Spring, supplier type designation VUWS-L25-M32C-E-G14. Supplied under manufacturer part number 575484, EAN 4052568260415, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 3/2-way, single solenoid, closed
- Type of actuation
- Pneumatic
- Valve size
- 26.5 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Nominal size
- 6.3 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00995401
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Switching time off
- 25 ms
- Switching time on
- 10 ms
- Explosion protection
- The information in the certificate must be observed!; Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 241 g
- Type of mounting
- On manifold rail; With through-hole
- Breather connection
- Not ducted
- Pneumatic spring connection 10
- M5
- Pilot air port 12
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Material seals
- HNBR; NBR
- Material housing
- painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- EAN / GTIN
- 4052568260415
- Festo type code
- VUWS-L25-M32C-E-G14
- Festo order number
- 575484
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 5.4748 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 575484
