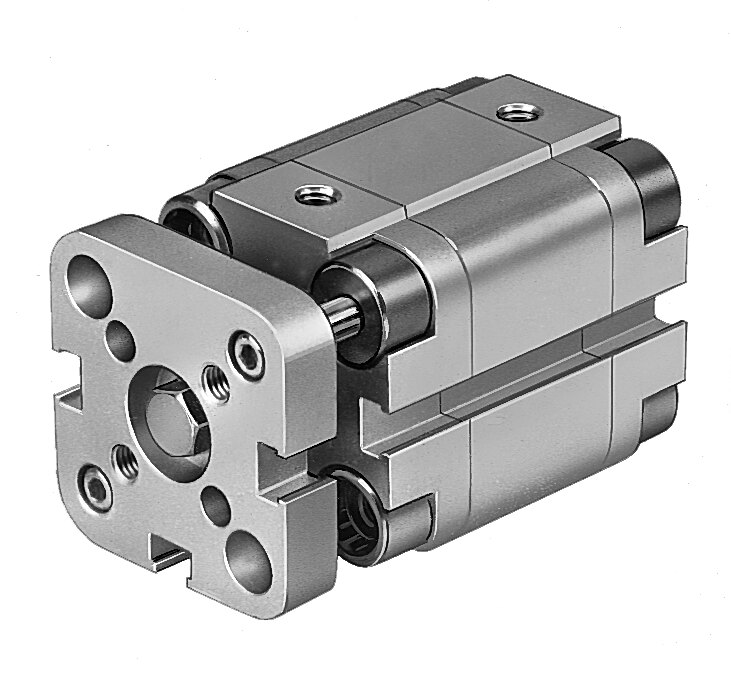

Festo ADVUL Compact cylinder double-acting - 20mm, M5, 10mm, ADVUL-20-10-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVUL Compact cylinder double-acting. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 20 mm, port size M5, stroke rate 10 mm, supplier type designation ADVUL-20-10-P-A. Supplied under manufacturer part number 156859, EAN 4052568121112, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 20 mm
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991737
- Variants
- Piston rod at one end
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.14 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 141 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 188 N
- Moving mass for 0 mm stroke
- 50 g
- Additional moving mass per 10 mm stroke
- 11 g
- Basic weight for 0 mm stroke
- 179 g
- Additional weight per 10 mm stroke
- 26 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- M5
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568121112
- Festo type code
- ADVUL-20-10-P-A
- Festo order number
- 156859
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 3.7943 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 156859
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568121112
- MPN 156859
Product Documentation
More from Festo
Festo

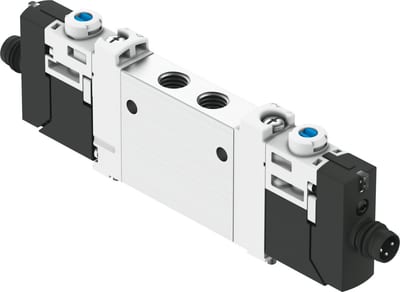

Festo VUVG-LK10 Solenoid Valve 5/2 24V DC - El, VUVG-LK10-B52-T-M7-1R8L-S
8042552
Festo

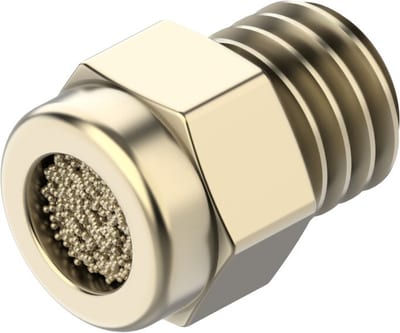

Festo AMTE-M-H Silencer sintered bronze/brass metric - M5MM, AMTE-M-H-M5
1206621
Festo

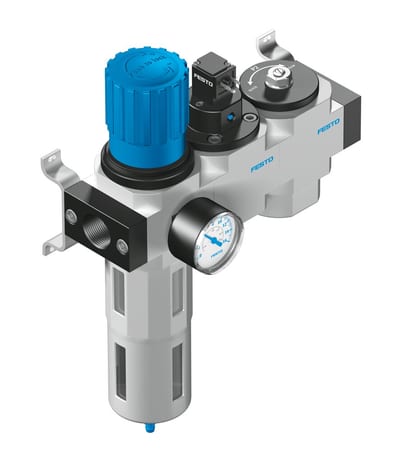

Festo LFR Service Unit Maxi automatic - 1/2", 2,5 - 12bar, 40MY, LFR-1/2-D-DI-MAXI-KD-A
192457
Festo

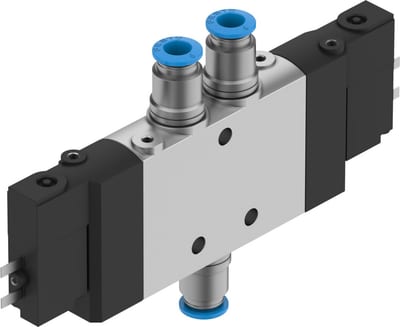

Festo CPE14 Solenoid Valve - QS-6", El, CPE14-M1BH-5J-QS-6
196907
Festo

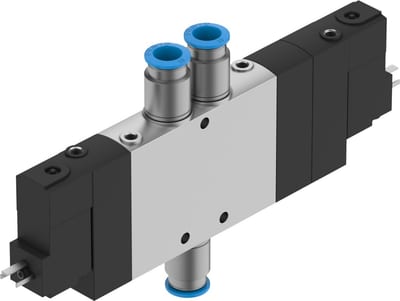

Festo CPE18 Solenoid Valve - QS-10", El, Spring, CPE18-M1H-5/3E-QS-10
170261
Festo

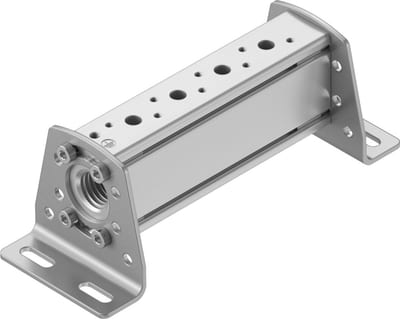

Festo VABM P-Battery Rail - 3/8", VABM-B10-20-G38-3-P53
576364
Festo

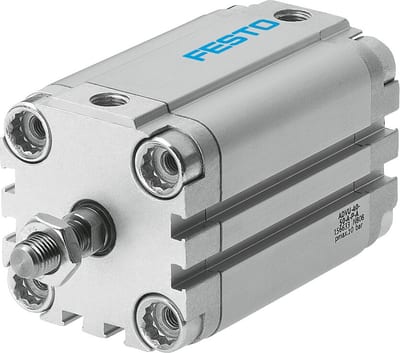

Festo ADVU Compact cylinder - 40mm, G1/8, 25mm, ADVU-40-25-A-P-A
