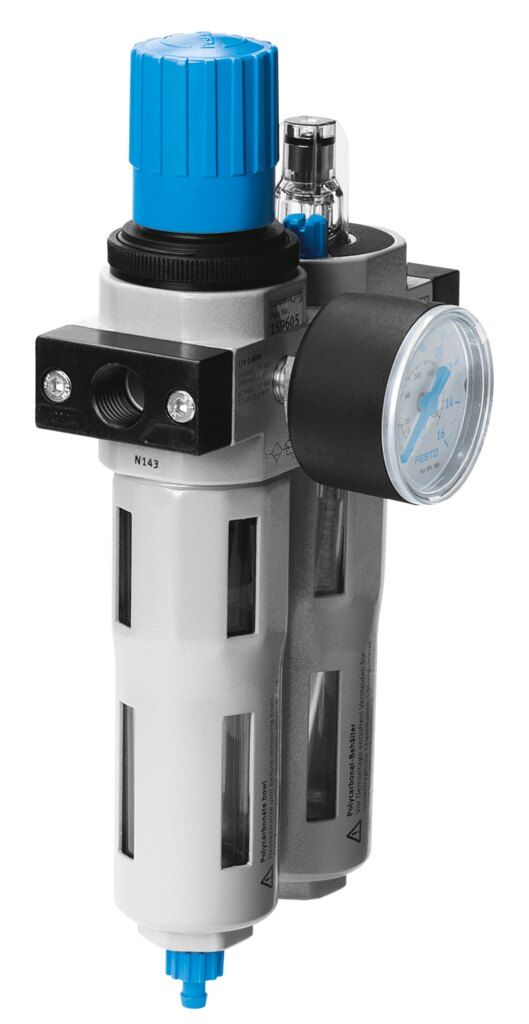

Festo FRC Service Unit Midi automatic - 1/4", 0,5 - 12bar, 40MY, FRC-1/4-D-MIDI-A

Festo FRC Service Unit Midi automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", press area 0.5 to 12 bar, filter element 40 My, supplier type designation FRC-1/4-D-MIDI-A. Supplied under manufacturer part number 186500, EAN 4052568146993, HS code 8481.10, country of origin Hungary.

Size

Midi Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Condensate drain: Fully automatic Design: Proportional standard mist lubricator Max. condensate volume: 43 ml Grade of filtration: 40 µm Bowl guard: Metal bowl guard Symbol: 00991509 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) Pressure regulation range: 0.5 ... 12 bar Max. pressure hysteresis: 0.02 MPa (0.2 bar) (2.9 psi) Standard nominal flow rate (standardised to DIN 1343): 1500 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:9:-]; Inert gas Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformity: VDMA24364-B1/B2-L Air purity class at output: Compressed air to ISO 8573-1:2010 [7:8:-]; Inert gas Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Product weight: 1440 g Type of mounting: With accessories Pneumatic connection, port 1: G1/4 Pneumatic connection, port 2: G1/4 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568146993 Festo type code: FRC-1/4-D-MIDI-A Festo order number: 186500 Product type: Air treatment Product group: Pneumatics Thread: 1/4" Press Area: 0.5 to 12 bar Filter element: 40 My Carbon footprint (EPD): 11.3162 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 186500

HS Code

8481.10

• EAN 4052568146993
• MPN 186500
