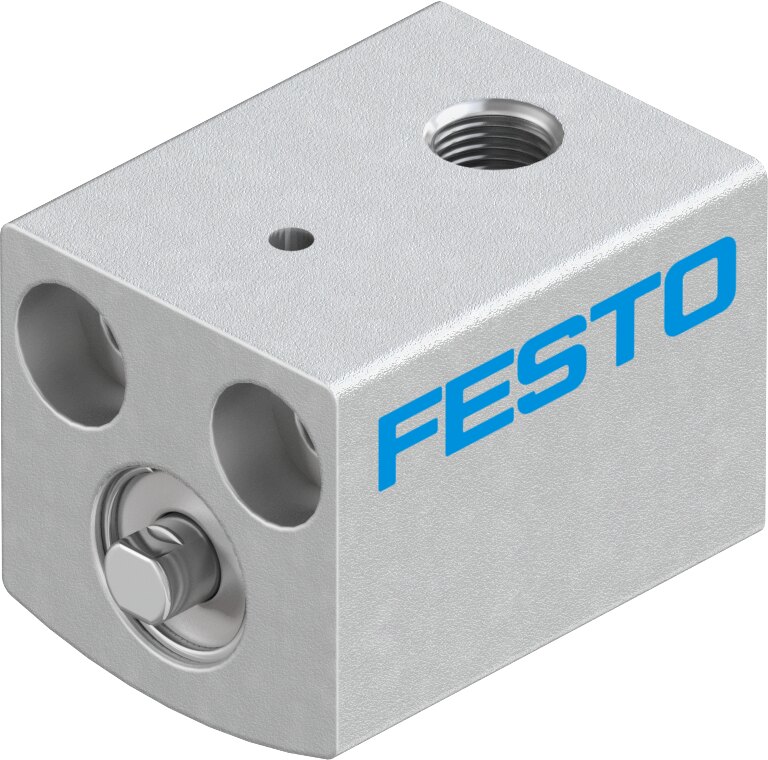

Festo AEVC Short stroke cylinder - 4mm, M3, 2.5mm, AEVC-4-2,5-P
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVC Short stroke cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 4 mm, port size M3, stroke rate 2.5 mm, supplier type designation AEVC-4-2.5-P. Supplied under manufacturer part number 188050, EAN 4052568076382, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 2.5 mm
- Piston diameter
- 4 mm
- Spring return force with retracted piston rod
- 1 N
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Pushing; Single-acting
- Design
- Piston; Piston rod
- Symbol
- 00991730
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar) (36.25 ... 116 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 4.9 N
- Moving mass
- 0.15 g
- Product weight
- 3 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy; anodised
- Material seals
- HNBR; NBR
- Material housing
- anodised
- Material piston rod
- Wrought aluminium alloy; anodised
- EAN / GTIN
- 4052568076382
- Festo type code
- AEVC-4-2,5-P
- Festo order number
- 188050
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 0.0814 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 188050
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568076382
- MPN 188050
