Festo AEVU Compact cylinder - 16mm, M5, 20mm, AEVU-16-20-A-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVU Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 16 mm, port size M5, stroke rate 20 mm, supplier type designation AEVU-16-20-A-P-A. Supplied under manufacturer part number 156984, EAN 4052568122201, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M8
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Pushing; Single-acting
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991729
- Variants
- Piston rod at one end
- Operating pressure
- 0.13 ... 1 MPa (1.3 ... 10 bar) (18.85 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.1 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 111 N
- Moving mass for 0 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 4 g
- Basic weight for 0 mm stroke
- 89 g
- Additional weight per 10 mm stroke
- 15 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- M5
- Material collar screws
- High-alloy stainless steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568122201
- Festo type code
- AEVU-16-20-A-P-A
- Festo order number
- 156984
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 2.6239 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 156984
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568122201
- MPN 156984
Product Documentation
More from Festo
Festo
Festo VUVG-L18 Solenoid Valve tryksat midterstilling 5/3 - G1/4", El, Mechanical spring, VUVG-L18-P53U-G14-P1
8033558
Festo
Festo KD3 Junction Box - KD3-1/8-A
4052568000097
Festo
Festo NPFC-D Double Nipple brass, nickel-plated BSPP - 3/8", 1/2", NPFC-D-G38-G12-M
4052568063788
Festo

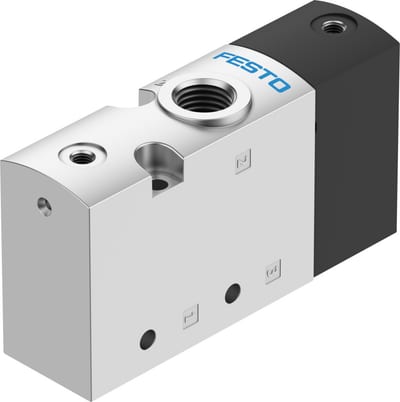

Festo VUWS-L25 Pneumatic valve - G1/4", Air, Spring, VUWS-L25-M32C-E-G14
575484
Festo

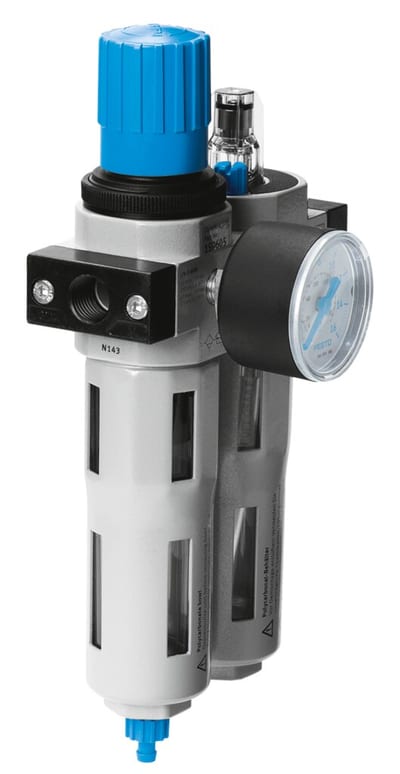

Festo FRC Service Unit Midi automatic - 1/4", 0,5 - 12bar, 40MY, FRC-1/4-D-MIDI-A
186500
Festo

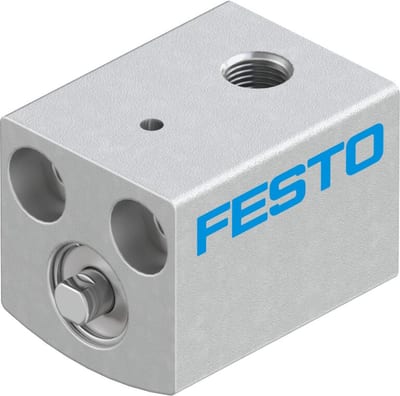

Festo AEVC Short stroke cylinder - 4mm, M3, 2.5mm, AEVC-4-2,5-P
188050
Festo

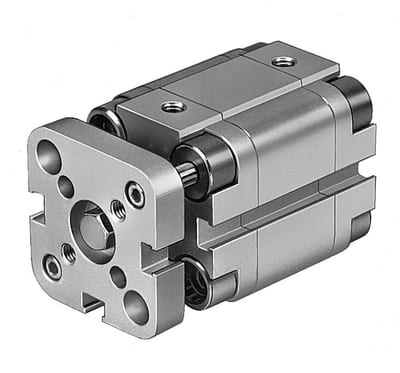

Festo ADVUL Compact cylinder double-acting - 20mm, M5, 10mm, ADVUL-20-10-P-A
