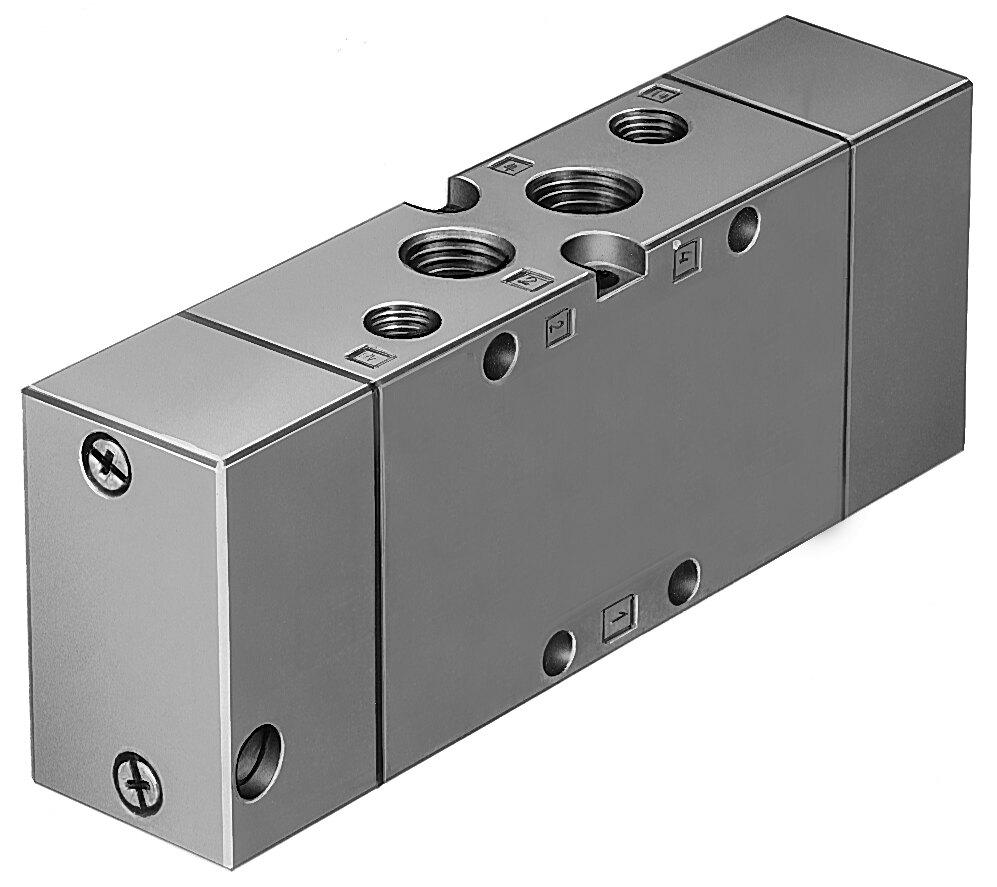

Festo J Pneumatic valve - G1/8", Air, Air, J-5-1/8-B-EX
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo J Pneumatic valve. Pneumatic Valves Air-Controlled (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation Air, return Air, supplier type designation J-5-1/8-B-EX. Supplied under manufacturer part number 536043, EAN 4052568170721, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Pneumatic
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -10°C <= Ta <= +60°C
- Explosion protection certification outside the EU
- EPL Db (GB); EPL Gb (GB)
- Nominal size
- 8 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991037
- lap
- Overlap
- Pilot pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Max. switching frequency
- 3 Hz
- Switching time reversal
- 3 ms
- Explosion protection
- Zone 1 (ATEX); Zone 1 (UKEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 21 (UKEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 320 g
- Type of mounting
- With through-hole
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568170721
- Festo type code
- J-5-1/8-B-EX
- Festo order number
- 536043
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- Air
- Return
- Air
- Carbon footprint (EPD)
- 6.0517 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 536043
