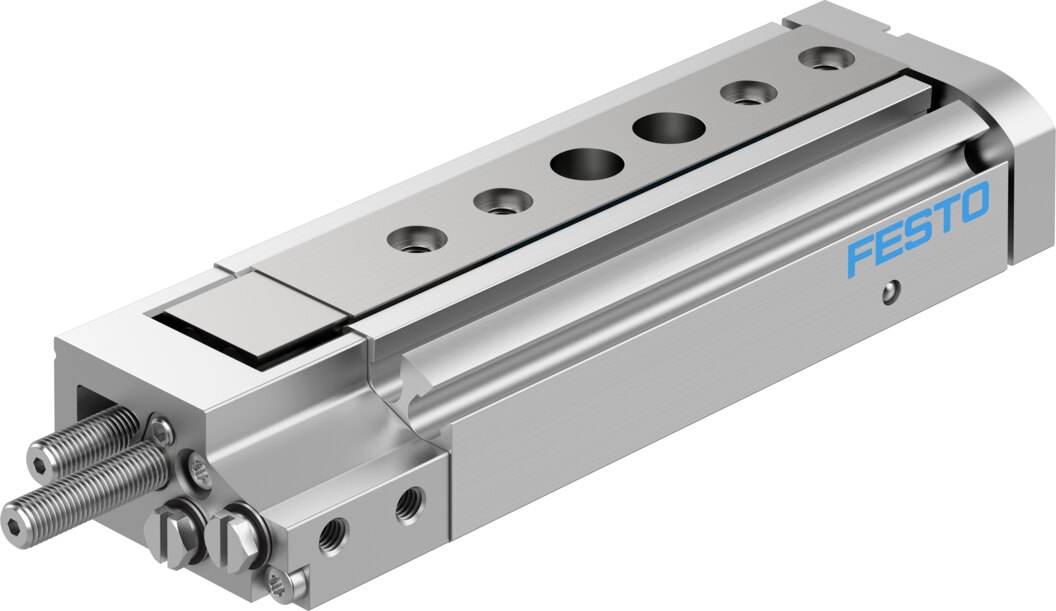

Festo DGSL Mini Slide - M3, DGSL-4-30-PA
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL Mini Slide. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: port size M3, supplier type designation DGSL-4-30-PA. Supplied under manufacturer part number 543912, EAN 4052568182571, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 30 mm
- Adjustable end position range/length front
- 25.5 mm
- Adjustable end position range/length rear
- 13.5 mm
- Piston diameter
- 6 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke; Piston; Piston rod; Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Max. speed
- 0.5 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.015 J
- Cushioning length
- 0.9 mm
- Max. force Fy
- 387 N
- Max. force Fz
- 387 N
- Max. moment Mx
- 2 Nm
- Max. moment My
- 2 Nm
- Max. moment Mz
- 2 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 13 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 17 N
- Moving mass
- 38 g
- Product weight
- 108 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568182571
- Festo type code
- DGSL-4-30-PA
- Festo order number
- 543912
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 2.7367 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 543912
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568182571
- MPN 543912
