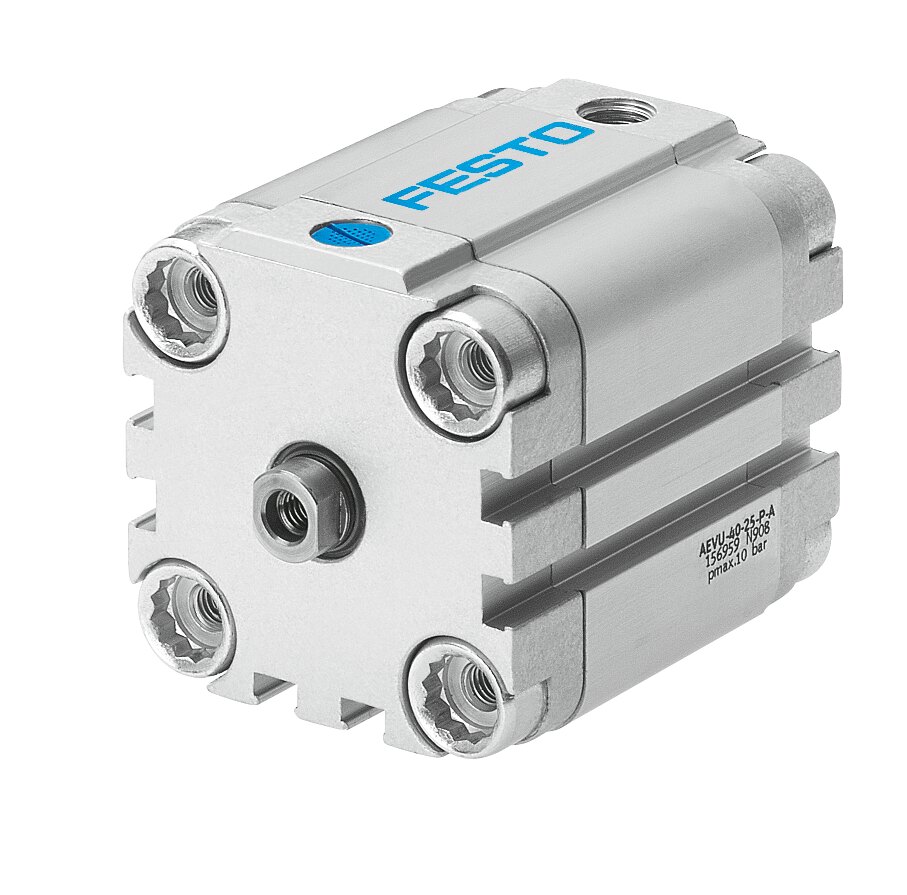

Festo AEVU Compact cylinder - 63mm, G1/8, 25mm, AEVU-63-25-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVU Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 63 mm, port size G1/8, stroke rate 25 mm, supplier type designation AEVU-63-25-P-A. Supplied under manufacturer part number 156967, EAN 4052568122102, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M8
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Pushing; Single-acting
- Piston-rod end
- Female thread
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991729
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar) (8.7 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.7 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1799 N
- Moving mass for 0 mm stroke
- 134 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight for 0 mm stroke
- 1059 g
- Additional weight per 10 mm stroke
- 107 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568122102
- Festo type code
- AEVU-63-25-P-A
- Festo order number
- 156967
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 26.7476 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 156967
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568122102
- MPN 156967
