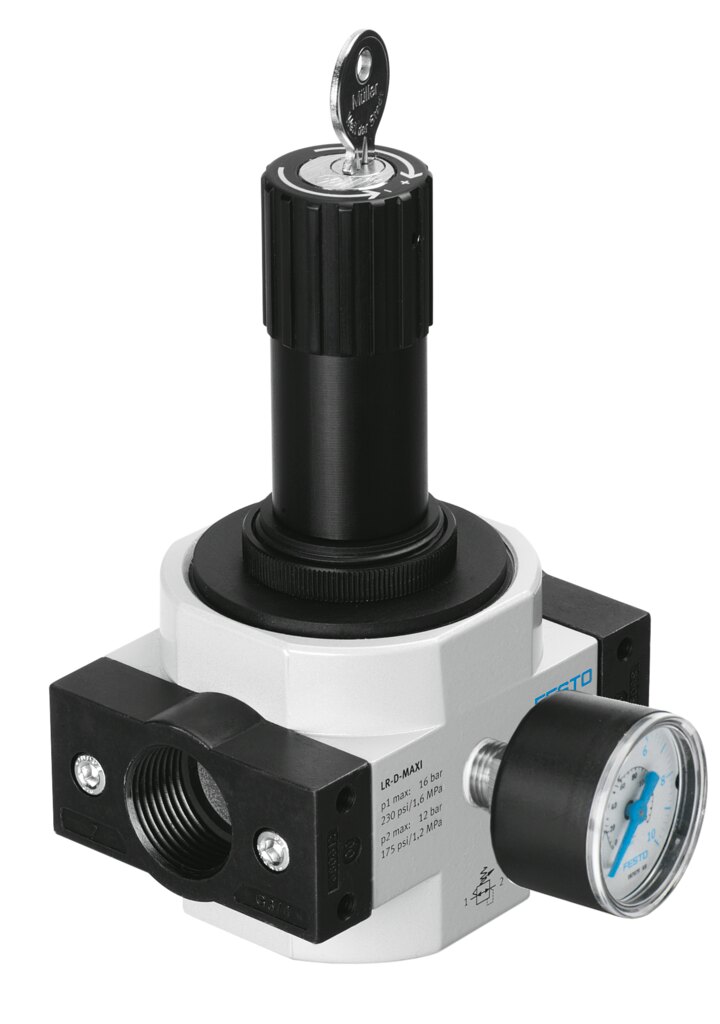

Festo LRS Pressure regulator Maxi - 1/2", 0,5 - 7bar, LRS-1/2-D-7-DI-MAXI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRS Pressure regulator Maxi. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/2", press area 0.5 to 7 bar, supplier type designation LRS-1/2-D-7-DI-MAXI. Supplied under manufacturer part number 194672, EAN 4052568154080, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator
- Controller function
- Output pressure constant; With primary pressure compensation; With secondary exhausting; With return flow function
- Symbol
- 00991558
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 7 bar
- Max. pressure hysteresis
- 0.04 MPa (0.4 bar) (5.8 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 7300 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1680 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material sub-base
- Die-cast zinc
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Material membrane
- NBR
- EAN / GTIN
- 4052568154080
- Festo type code
- LRS-1/2-D-7-DI-MAXI
- Festo order number
- 194672
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 7 bar
- Carbon footprint (EPD)
- 13.2618 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
- Manufacturer part number
- 194672
