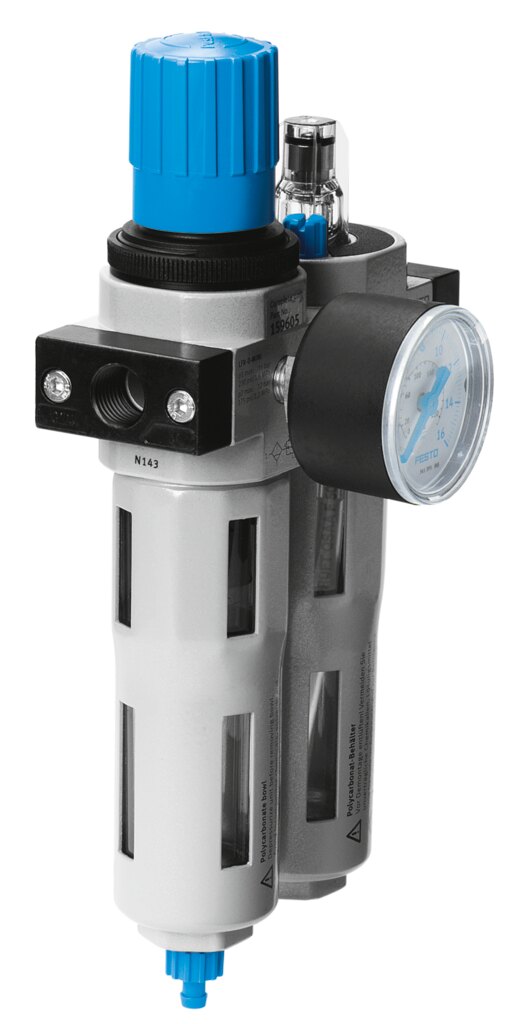

Festo FRC Service Unit Midi manual - 1/4", 0,5 - 7bar, 40MY, FRC-1/4-D-7-MIDI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FRC Service Unit Midi manual. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", press area 0.5 to 7 bar, filter element 40 My, supplier type designation FRC-1/4-D-7-MIDI. Supplied under manufacturer part number 186503, EAN 4052568147020, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Condensate drain
- Manual, rotating
- Design
- Proportional standard mist lubricator
- Max. condensate volume
- 43 ml
- Grade of filtration
- 40 µm
- Bowl guard
- Metal bowl guard
- Symbol
- 00991549
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 7 bar
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar) (2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 1700 l/min
- Operating medium
- Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:8:-]; Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1440 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- EAN / GTIN
- 4052568147020
- Festo type code
- FRC-1/4-D-7-MIDI
- Festo order number
- 186503
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Press Area
- 0.5 to 7 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 11.4714 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
- Manufacturer part number
- 186503
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568147020
- MPN 186503
Product Documentation
More from Festo
Festo
Festo VUVS-L25 Solenoid Valve closed monostable 3/2 - 1/4 NPT", El, Mechanical spring, VUVS-L25-M32C-MD-N14-FN
8193001
Festo
Festo LRS Pressure regulator Mini - 1/4", 0,5 - 12bar, LRS-1/4-D-O-I-MINI
194613
Festo
Festo NPFC-L Banjo elbow brass, nickel-plated BSPP socket - 1", NPFC-L-2G1-F
8030214
Festo
Festo ADN Compact cylinder double-acting - 20mm, 6mm, M5, 20mm, ADN-20-20-I-P-A
536245
Festo
Festo VUWS-L20 Pneumatic valve - G1/8", Air, Spring, VUWS-L20-M32C-A-G18
575669
Festo
Festo MVH Solenoid Valve - G1/8", El, Spring, MVH-5-1/8-B
19779
Festo
Festo VUVG-L18 Solenoid Valve - 4052568223151
574430
Festo
Festo VUVG-L10 Solenoid Valve - M7", El, Spring, VUVG-L10-P53U-T-M7-1R8L
574224
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 186503?
- 186503 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 186503.
- What is the HS code for 186503?
- The customs tariff (HS) code for 186503 is 8481.10.
- Who manufactures 186503?
- 186503 is a Festo product in the Pneumatics range.
- Is a datasheet available for 186503?
- Yes — the 186503 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 186503?
- The minimum order quantity is 1.
- Is 186503 available?
- Yes — 186503 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
