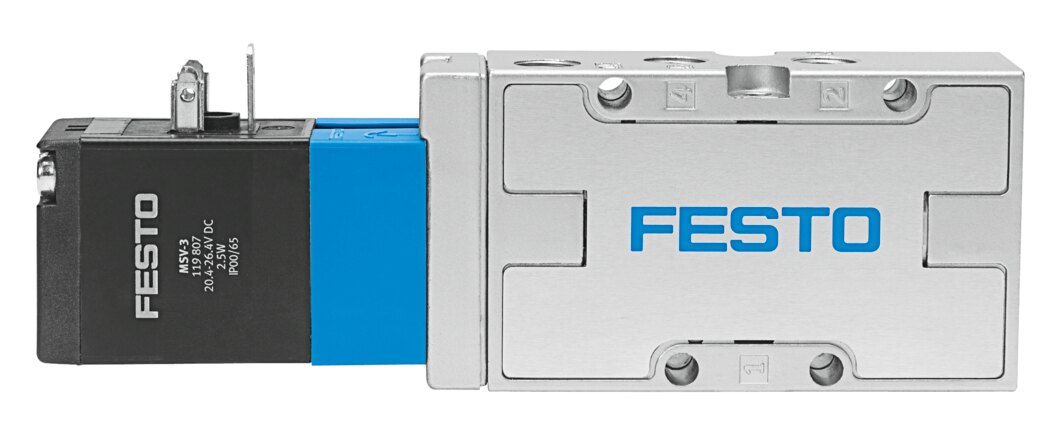

Festo MVH Solenoid Valve - G1/8", El, Spring, MVH-5-1/8-B
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MVH Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation El, return Spring, supplier type designation MVH-5-1/8-B. Supplied under manufacturer part number 19779, EAN 4052568113476, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Nominal size
- 5 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991035
- lap
- Underlap
- b value
- 0.34
- C value
- 3 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 36 ms
- Switching time on
- 20 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- 24 V DC: 2.5 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 230 g
- Type of mounting
- On PR rail; With through-hole
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR; TPE-U(PU)
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568113476
- Festo type code
- MVH-5-1/8-B
- Festo order number
- 19779
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 4.2197 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 19779
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568113476
- MPN 19779
