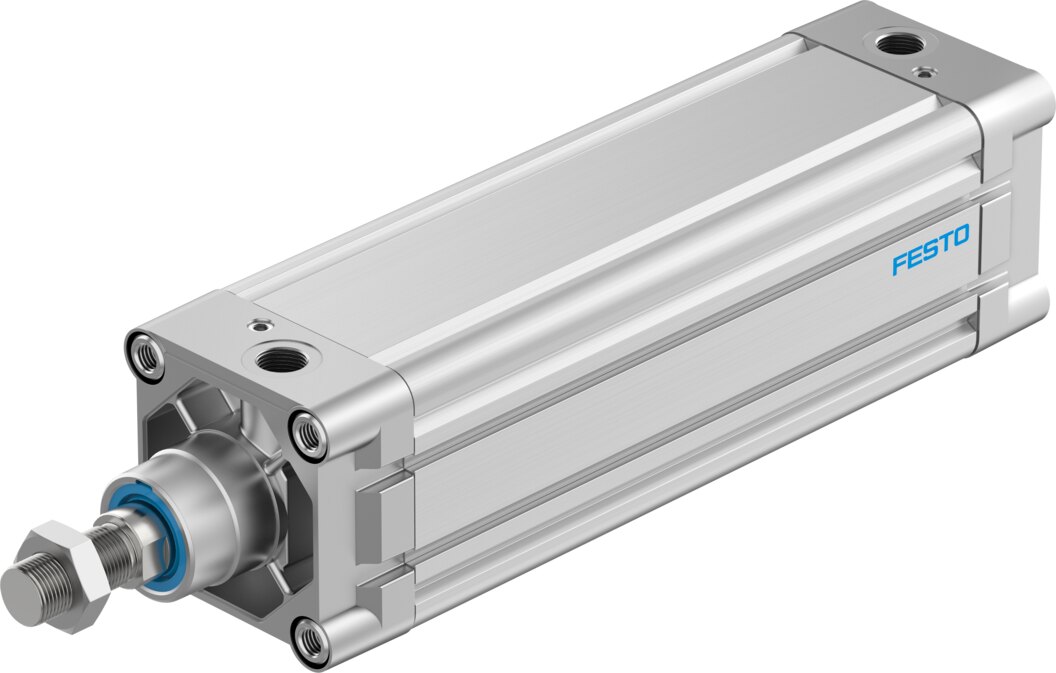

Festo DNC Standard cylinder - 63mm, G3/8", 150mm, DNC-63-150-PPV-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DNC Standard cylinder. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 63 mm, port size G3/8", stroke rate 150 mm, supplier type designation DNC-63-150-PPV-A. Supplied under manufacturer part number 1922639, EAN 4052568250041, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 150 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1.2 MPa (0.6 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.5 J
- Cushioning length
- 22 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 1682 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1870 N
- Moving mass for 0 mm stroke
- 663 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight for 0 mm stroke
- 1709 g
- Additional weight per 10 mm stroke
- 73 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G3/8
- Material cover
- Die-cast aluminium; coated
- Material seals
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy; Smooth-anodised
- EAN / GTIN
- 4052568250041
- Festo type code
- DNC-63-150-PPV-A
- Festo order number
- 1922639
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G3/8"
- Carbon footprint (EPD)
- 56.4852 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 1922639
